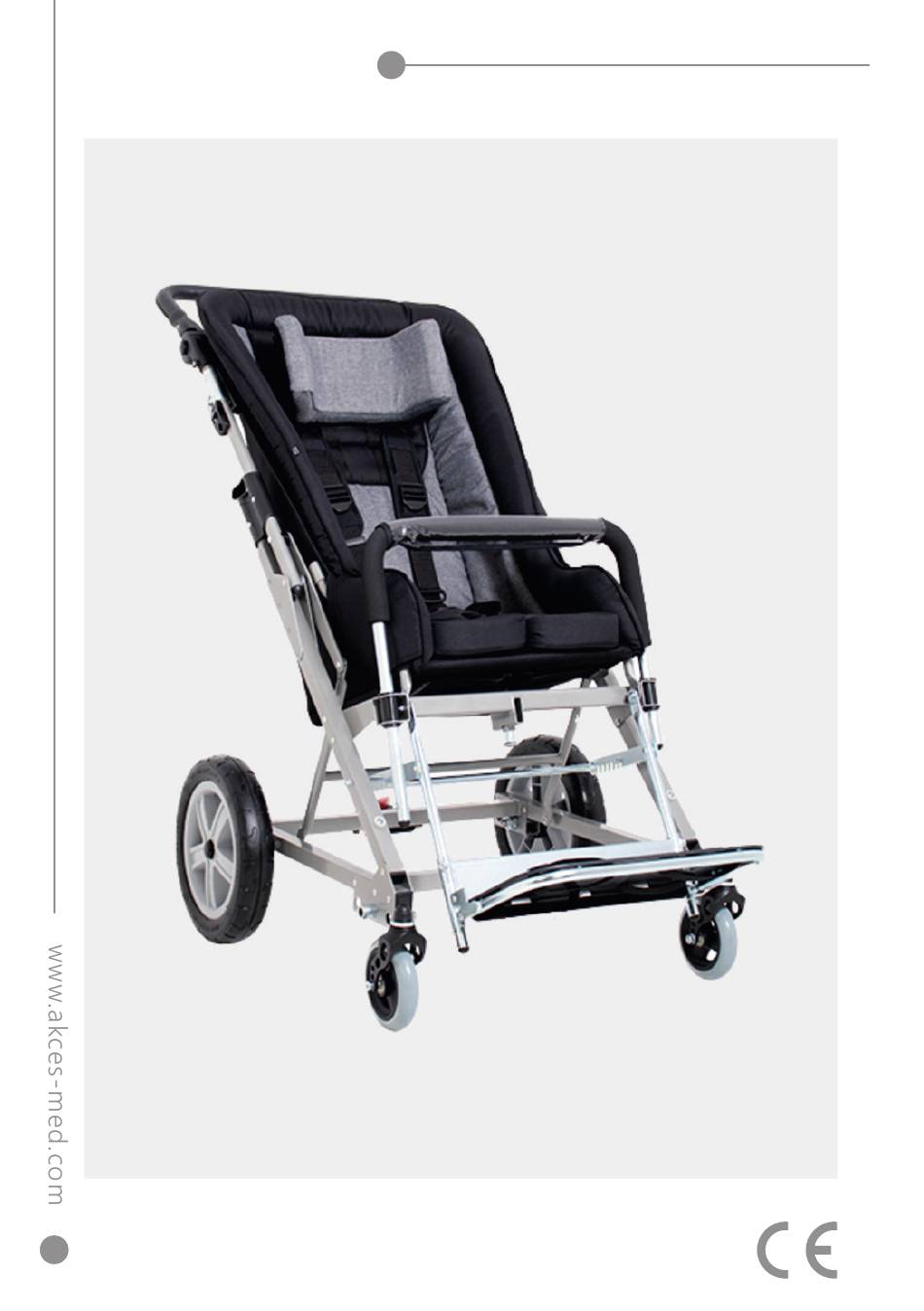

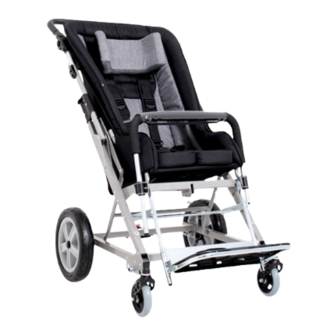

  • Page 1 ® NOVA EVO Special needs stroller User manual...
  • Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    Contents 1. The purpose of user manual..............................5 2. Indications and contraindications...........................5 3. General characteristic of the stroller..........................6 4. Size table....................................7 5. How to use the stroller.................................8 5.1 Unfolding the stroller..............................8 5.2 Folding the stroller..............................9 5.3 Footrest..................................11 5.3.1 Footrest tilt angle adjustment........................11 5.3.2 Footplate tilt angle adjustment.......................11 5.3.3 Footrest length adjustment........................12 5.4 Central brake................................12...
  • Page 4 Introduction Special needs stroller NOVA EVO® is a great combination of a stroller which is perfect both during home rehabilitation and long walks outside. It is especially recommended for spastic users as well as those requiring additional stabilization. The deep seat provides a comfortable position in the stroller, which helps to correct posture defects and significantly prevents their deepening.

  • Page 5: The Purpose Of User Manual

    1. The purpose of user manual ATTENTION! The instruction manual contains basic information necessary to properly prepare the stroller before use, use the stroller, maintain and clean the stroller. This user manual should be kept in an easily accessible place. The manual is intended for people who look after disabled users, as well as for doctors and physiotherapists handling the stroller.

  • Page 6: General Characteristic Of The Stroller

    REAR WHEELS FRONT SWIVEL WHEELS ADJUSTABLE FOOTREST WITH 2-POINT FEET STABILIZING BELTS ADDITIONALLY SmarTraction SYSTEM (adjustable rear wheelbase SmarTraction) ź CENTRAL BRAKE ź TILT-IN-SPACE FUNCTION ź INFORMATION! Accessories are available on the website: akces-med.com/product/nova-evo/ or by scanning the QR code.

  • Page 7: Size Table

    4. Size table Symbol measurement Unit Size 1 Size 2 Size 3 indicative user height* [cm] 100 - 130 120 - 160 140 - 180 seat width [cm] seat depth [cm] backrest height [cm] headrest height [cm] 43 - 55 54 - 66 64 - 79 backrest width...

  • Page 8: How To Use The Stroller

    5. How to use the stroller 5.1 Unfolding the stroller PRESS ATTENTION! Make sure that the stroller has been correctly unfolded, the elements of the folding mechanism overlap the frame and are blocked. You should hear the characteristic “click” sound when the elements are overlapping.

  • Page 9: Folding The Stroller

    5. How to use the stroller INFORMATION! When unfolding the stroller, make sure that the upholstery does not get between the elements of the folding mechanism! 5.2 Folding the stroller...
  • Page 10 5. How to use the stroller PRESS...

  • Page 11: Footrest

    5. How to use the stroller PRESS INFORMATION! You can disassemble the wheels, e.g. for transportation. 5.3 Footrest 5.3.1 Footrest tilt angle adjustment ATTENTION! At the lowest footrest position, a collision with the front wheels may occur. 5.3.2 Footplate tilt angle adjustment REQUIRED TOOLS spanner key 13...

  • Page 12: Footrest Length Adjustment

    5. How to use the stroller 5.3.3 Footrest length adjustment REQUIRED TOOLS hex key 3 5.4 Central brake WHEELS BLOCKED WHEELS UNBLOCKED...

  • Page 13: Removing Wheels

    5. How to use the stroller 5.5 Removing wheels PRESS REQUIRED TOOLS hex key 5 5.6 SmarTraction System INFORMATION! SmarTraction System – It is a system which makes it possible to change the position of the wheel axles depending on the user's needs. You can move them forward or backward due to special holes in the stroller frame, where you put the bushing, into which the wheel axles are inserted and fastened in the frame with the use of the quick-release system.
  • Page 14 5. How to use the stroller CITY MODE The stroller is more maneuverable and mobile By mounting the front and rear wheel axles as close as possible, you can achieve a greater maneuverability and mobility of the stroller. This configuration of wheel axles is recommended on an even and flat asphalt road.
  • Page 15 5. How to use the stroller spanner key 22 spanner key 17 ATTENTION! When changing the mounting place of the wheels in the stroller, the distance between its axles is also changed. Remember that after changing the mounting place of the wheels, they should be arranged symmetrically on the right and left side of the stroller.

  • Page 16: Adjustable Backrest

    5. How to use the stroller 5.7 Adjustable backrest ATTENTION! Do not adjust the backrest with the user in the stroller. INFORMATION! There are 3 backrest positions possible. ATTENTION! There is a pocket at the rear of the backrest, where you can keep small, necessary accessories.

  • Page 17: Tilt-In-Space Function

    5. How to use the stroller 5.8 Tilt-in-space function INFORMATION! Due to the fact that the seat of the stroller is connected to the backrest, while adjusting the backrest, the tilt angle of the seat is also changed (tilt-in-space function). 5.9 Adjustable headrest...

  • Page 18: 5-Point Safety Belts

    5. How to use the stroller 5.10 5-point safety belts...
  • Page 19 5. How to use the stroller INFORMATION! The 5-point safety belts can be mounted at the desired height, depending on the user's needs.
  • Page 20 5. How to use the stroller...
  • Page 21 5. How to use the stroller ATTENTION! The strap should be threaded through the sliding buckle as shown in the photo. The length of the strap depends on the position of the sliding buckle. sliding buckle strap...

  • Page 22: Upholstery

    5. How to use the stroller ATTENTION! Always make sure that the user has the belts properly fastened while using the stroller. In order to check that, pull the belts firmly in different directions and see if the belts do not unfasten. 5.11 Upholstery 5.11.1 Flex upholstery ATTENTION!
  • Page 23 5. How to use the stroller...
  • Page 24 5. How to use the stroller ATTENTION! The flex upholstery is the supporting element of the stroller and has 3 points which hold up the structure. Each time you mount the flex upholstery on the stroller, check if it is properly fastened.

  • Page 25: Waterproof Upholstery Hydro

    5. How to use the stroller 5.11.2 Waterproof upholstery HYDRO...
  • Page 26 5. How to use the stroller...

  • Page 27: Safety Rail

    5. How to use the stroller ATTENTION! Both the flex and waterproof HYDRO™ upholstery can be cleaned with water and mild cleaning products. Remember to remove the wooden element from the inside of the upholstery before cleaning! 5.12 Safety rail INFORMATION! The front rail has a safety lock which protects it against an accidental removal.

  • Page 28: Adjustable Push Handle

    5. How to use the stroller REQUIRED TOOLS INFORMATION! The height of the safety rail is adjustable. To hex key 3 change the height of the safety rail, place the screw in the hole at your choice. There are 3 height levels available. 5.13 Adjustable push handle...

  • Page 29: The Use Of Stroller

    6. The use of stroller ATTENTION! NOVA EVO® stroller has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as user before using stroller! 6.1 Preparation of the user...

  • Page 30: How To Use Vests

    6. The use of stroller ATTENTION! In case of any obstacles such as step or curb, it is necessary to raise front wheels by pressing the handle down . Next, place front wheels on step and then raise back part of stroller with the aid of handle. Be careful not to tilt the stroller back too much.Remember to place stroller forwards.
  • Page 31 6. The use of stroller 4) The vest is fastened too tightly to the backrest and as a result the user cannot breathe easily – in this case the vest should be loosened in such a way that it is possible for the caregiver to insert a straightened hand between the vest and the user's body.
  • Page 32 6. The use of stroller Do not make any repairs or modifications to the vest on your own. In order to repair or replace any part of the vest, please contact the manufacturer. Do not use a damaged or incomplete vest, as this poses a serious threat to the health and life of the user! Do not leave the user in the device unattended! 10) The correctness of the use of the vest should be particularly controlled in accordance with the...

  • Page 33: Safety Rules

    7. Safety rules ATTENTION! NOVA EVO® stroller has to be used in compliance with guidelines in this user manual. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.

  • Page 34: Terms Of Warranty

    If product is damaged, please contact our dealer or Akces-MED Ltd. customer service: ź (ph. +48 17 864 04 77, e-mail: export@akces-med.com).

  • Page 35: Maintenance And Cleaning

    9. Maintenance and cleaning The stroller NOVA EVO®, which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The stroller should be kept in a clean, dry and ventilated room. Maintenance and cleaning must be done at least once a month. Periodic cleaning and maintenance of the chair is essential to keep its proper functioning and safety.
  • Page 36 9. Maintenance and cleaning Before using it is necessary to: clean wheels, ź check if base as well as wheels are correctly mounted; check if brake stops turning wheel, ź check if wheelchair construction is free of breaks or any kinds of deformities, ź...
  • Page 37 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of the Check: In case of any damage or defects, product.
  • Page 38 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick Check: Clean the wheels when dirty.

  • Page 39: Labelling

    10. Labelling Declaration that the product meets the essential Dry vertically requirements Catalog number Do not chlorinate Serial number Do not iron Please read the manual instructions before use Do not dry in a drum dryer You need to take special precautions Do not bleach Manufacturer Careful! Delicate content...
  • Page 40 MANUFACTURER Authorised Dealer Akces-MED Sp. z o.o. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2023...
