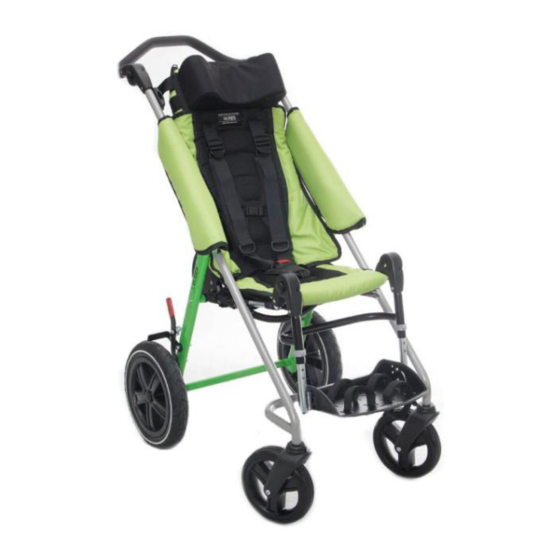

  • Page 1 ULISESevo ™ SPECIAL NEEDS STROLLER USER MANUAL...
  • Page 2 Producer's identification number in the Registration Department of Healing Products, Medical Products and Biocide Products: PL/CA01 04088/W Akces-Med. Sp. z o.o. Company introduced quality management system ISO 13485 regarding production, sales and service. The system is certified by Det Norske Veritas.

  • Page 3: Table Of Contents

    6.2 Under seat storage basket..................22 6.3 Head-neck support....................22 6.4 Abduction block......................23 Trunk stabilizing belt ....................24 6.6 Sun umbrella......................25 6.7 Cup holder.........................26 6.8 H Harness, 4 points safety vest................27 6 points safety vest ....................27 6.10 Bags...........................28 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 4 ULISESevo 7. The use of stroller......................29 7.1. The preparation of the patient..............29 7.2. How to use stroller....................30 8. Safety rules ........................31 9.Maintenance and cleaning....................34 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 5 With simple and light construction it can be easily folded for transporting purposes. Furthermore, relatively small size allows you to fit ULISES EVO™ into an undersized car trunk. Stable structure of the stroller, belts and supports system make the user feel safe. The backrest can be easily bend back and adjustable push handle increases the stroller maneuverability.

  • Page 6: The Purpose Of Use Manual

    The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding ULISES EVO™ stroller. User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device.

  • Page 7: General Characteristics Of Stroller

    7. Seat with depth adjustment. 8. Footrest with height and tilt angle adjustments, 2-point belts fastening the feet. 9. Foldable stroller frame. 10. Rear, air pumped wheels equipped with two independent brakes. 11. Front swivel castors. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 8: Additional Equipment

    ULE_113 Trunk stabilizing belt ULE_114 H Harness ULE_115 Calf belt ULE_124 Loins support ULE_125 6 points safety vest Head-neck support _121 Abduction- _129 ULE_128 Abduction block ULE_130 4 points safety vest adduction thight belts www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 9 ULE_408 Rain cover ULE_409 Mosquito net cover ULE_413 Elastico cushion ULE_412 Elastico cushion backrest ULE_411 Cup holder seat ULE_421 Seat cushion ULE_419 Seat cushion ULE_415 Wheels cover (thighs shape) (pommel shape) (4 pcs) www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 10 _705 Rear PU wheel, silver ULE_706 Rear inflatable wheel, ULE_704 Rear PU wheel silver metallized metallized _712 Front PU wheel, silver metallized ULE_711 Front PU wheel ULE_707 Front inflatable wheel ULE_701 Rear inflatable wheel www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 11: Size Table

    90-180 Maximum user weight [kg] Size 1 Size 2 Size 3 Weight and dimensions of the device [cm] Width After folding width Length After folding length Height After folding height [kg] Weight 18,5 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 12: Detailed Description On How To Use Stroller

    STEP 3. Pull the strap located in the back of the backrest (fig.4) and simultaneously fig.3 push the backrest forward until it stops (fig.5) (Backrest tilt angle adjustment → see page 16, point 5.6.1). fig.4 fig.5 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 13 STEP 4. In order to make stroller folding easier, it is recommended to take off the side covers. fig.6 STEP 5. Afterwards, pull the folding mechanism (fig.7) and push the backrest forward until it stops (fig.8-10). fig.7 fig.10 fig.9 fig.8 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 14: Unfolding The Stroller

    5.3.1 To adjust the footrest height , you should: STEP 1. Remove the quick connectors from both sides of the stroller. (fig.13); STEP 2. Set the desired height of the footrest (fig.14); STEP 3. Put the quick connectors into holes; www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 15: Wheels

    This action should be repeated with the other rear wheel. 5.4.4. The brakes have adjustable breaking force. In order to adjust it, you should tighten or loosen the hex nut located at the brake. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 16: The Push Handle

    STEP 1. Pull the belt located at the back of the backrest (fig.20) and then set the desired angle of the backrest (fig.21). STEP 3. Release the belt and make sure that the backrest is totally locked. fig.20 fig.21 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 17: Backrest Extension

    5.8 Seat 5.8.1. In order to adjust the seat depth, you should: STEP 1. Using the Allen wrench, loosen the holder located at the both side of the seat frame (fig.25). fig.25 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 18 To decrease the seat depth, after reaching its maximum position, push the retaining pins inside the frame. fot.21 fig.26 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 19: Points Belts

    Afterwards, secure them using knob placed on the other side. STEP 3. Connect the belts (fig.29) and insert them into buckle located at the seat (fig.30). fig.29 fig.30 www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 20 CAUTION! Each time before using 5-point belts, you should check if: Buckles do not stretch of the pressing force · Buckles and belts do not move as a result of · improper attachment www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 21: Additional Equipment

    STEP 3. You can observe the child through the small window in the stroller canopy. To do that, roll the external cover and fasten it. (fig.36-38). fig.36 fig.37 fig.38 fot.35 fot.35 fot.35 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 22: Under Seat Storage Basket

    Headrest is ideal for patients with falling head. To attach the headrest, insert the headrest's belts into holes placed in the backrest's upholstery. Then fasten the belts with the aid of Velcro tape. fig.43 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 23: Abduction Block

    (fig. 44); STEP 3. Batten should be mounted to seat with the aid of screw; screw should be fig.44 tightened by means of Allen wrench (fig. 45). fig.45 fig.46 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 24: Trunk Stabilizing Belt

    STEP 3. Thread belt (the one that closes trunk belt) through grip. It is possible to use shorter or longer belt with grip, it depends on the width of trunk (fig.51). www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 25: Sun Umbrella

    Next, adjust proper position and tighten knob (fig.54). The adjustment of sun umbrella can be regulated with the aid of button which is fig.54 situated next to clip. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 26: Cup Holder

    So as to mount cup holder it is necessary to: STEP 1. Loosen clip and place it on handle's frame (fig.56); STEP 2. Tighten knob (fig.57); STEP 3. Adjust proper position with the aid of button (fig.58). fig.55 fig.56 fig.58 fig.57 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 27: H Harness, 4 Points Safety Vest

    Please follow these steps so as to mount 6 points vest: STEP 1. Put vest on the patient and then zip up both zipper and clamp situated at the front of the vest (fig.61-64); fig.61 fot.35 fig.62 fot.35 fig.63 fot.35 fig.64 fot.35 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 28: Bags

    Bags are very capacious and have a lot of useful pockets. There is possibility to attach them to the stroller or worn them on the arm thanks to the long adjustable belt. fig.68 fot.35 fig.69 fig.70 fot.35 fig.71 fot.35 fot.35 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 29: The Use Of Stroller

    Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using ULISES EVO™ stroller! 7.1. Preparation of the patient Before using the product, it is essential to make sure that: ·...

  • Page 30: How To Use Stroller

    It is forbidden to force child to keep specific position because he/she will feel uncomfortable and it may lead to wrong posture. www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 31: Safety Rules

    It is highly important to secure patient because it safeguards him/her from falling out. If abduction contracture occurs, it is recommended to use abduction block in order to prevent ulcers between knees. www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 32 11. Secure stroller during transportation in order to avoid any possible damages. Manufacturer doesn't take responsibility for damages which appeared due to improper preparation of the device during transportation. www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 33 CAUTION! The weight of user should not be bigger than maximal weight described on page 11 where you will find information regarding this issue. 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 24-month guarantee from the date of purchase.

  • Page 34: Maintenance And Cleaning

    4. It is forbidden to clean upholstery with strong chemical agents such as solvent or caustic chemicals. CAUTION! Akces-MED. Sp z o. o takes no responsibility for damages caused by use of wrong clearing agent. 5. It is forbidden to soak upholstery during cleaning. Remember that upholstery has to be always dry before using.
  • Page 35 CAUTION! In case of any damages, it is essential to contact the person who sold you the product. www.akces-med.com +48 17 864 04 77 export@akces-med.com...
  • Page 36 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 02.02.2015 The last update: 09.02.2015...
