RACER®
Special needs stroller
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACER and is the answer not in the manual?

Questions and answers

Related Manuals for Akces-Med RACER

Summary of Contents for Akces-Med RACER

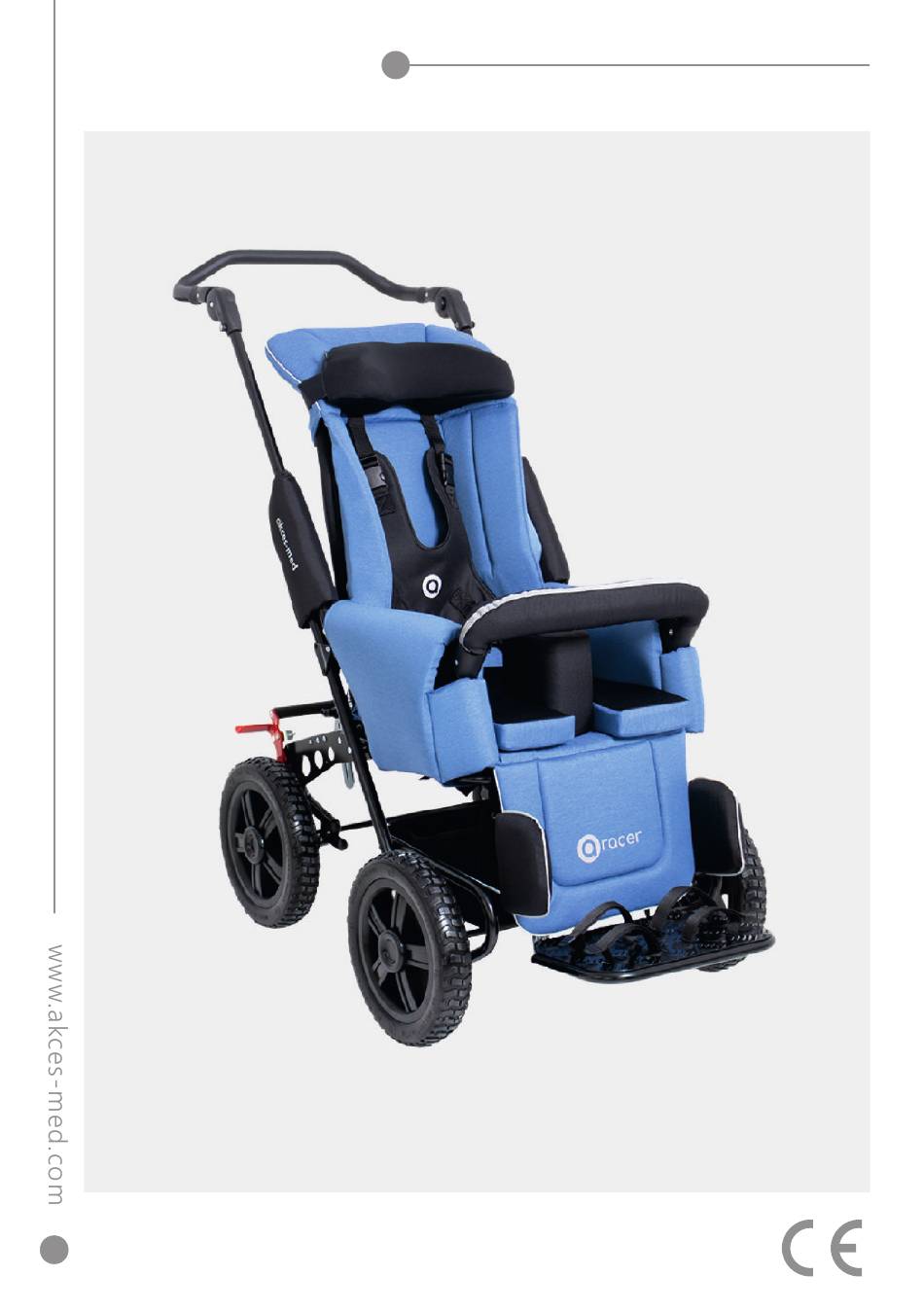

  • Page 1 RACER® Special needs stroller User manual...
  • Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    Contents Introduction....................................4 1. The purpose of user manual............................5 2. Indications and contraindications..........................5 3. General characteristic of the stroller...........................7 4. Size table....................................8 5. How to use the stroller..............................9 5.1 Unfolding the stroller............................9 5.2 Folding the stroller...............................11 5.3 Backrest tilt angle adjustment..........................12 5.4 Footrest adjustment............................13 5.5 Side supports.................................14 5.6 4-point safety vest..............................15...

  • Page 4: Introduction

    Introduction Special needs stroller RACER® is used for children whose movement possibilities are limited. It may be used in the rehabilitation centre and at user’s home. Stable construction perfectly stabilizes the user and it gives him a sense of security. What is more, it enables the correct sitting position and the child has a chance to rest in the reclining position.

  • Page 5: The Purpose Of User Manual

    This user manual should be kept in an easily accessible place. The manual is intended for people who look after disabled users, as well as for doctors and physiotherapists handling the device. Before using the RACER® for the first time, the user (or caregiver) is obliged to familiarize himself / herself with the user manual.
  • Page 6 2. Indications and contraindications for use Contraindications: critical condition of the user, ź paralysis, ź deep sedation, ź unstable fractures with specific orthopedic recommendations, including spine fractures, ź untreated deep vein thrombosis, ź hemodynamic instability, ź identified brain dysfunction when sitting upright, ź...

  • Page 7: General Characteristic Of The Stroller

    CENTRAL BRAKE WITH ADJUSTABLE DOWN FORCE ź ALL TERRAIN WHEELS ź UNDER SEAT STORAGE BASKET ź TWO PIECE UPHOLSTERY - TECHNICAL UPHOLSTERY AND WATERPROOF UPHOLSTERY HYDRO OR BREATHABLE UPHOLSTERY ATMO INFORMATION! Accessories available for this product can be found on the akces-med.com website under the product tab.

  • Page 8: Size Table

    4. Size table Symbol Measurement Unit Size 1 Size 2 Size 3 Size 4 indicative user height * [cm] < 120 < 150 < 180 < 180 seat width [cm] seat depth [cm] headrest height [cm] 58 - 62 72 - 80 72 - 80 backrest width [cm]...

  • Page 9: How To Use The Stroller

    5. How to use the stroller 5.1 Unfolding the stroller ATTENTION! After unfolding the backrest, remember to lock it. To do this, tighten and clamp the lever of the backrest angle adjustment mechanism. Before use, check that the backrest does not change its position under the applied force.
  • Page 10 5. How to use the stroller 5.1 Unfolding the stroller ATTENTION! Make sure that the mounting of the safety rail does not overlap the upholstery of the product.

  • Page 11: Folding The Stroller

    5. How to use the stroller 5.2 Folding the stroller...

  • Page 12: Backrest Tilt Angle Adjustment

    5. How to use the stroller 5.2 Folding the stroller 5.3 Backrest tilt angle adjustment ATTENTION! Changing the angle of the backrest tilt should be preceded by unlocking the adjustment mechanism and loosening it. After setting the angle of the backrest tilt, the mechanism should be tightened and locked by tightening the lever of the adjustment mechanism.

  • Page 13: Footrest Adjustment

    5. How to use the stroller 5.4 Footrest adjustment TILT ANGLE ADJUSTMENT INFORMATION! When raising the footrest, release the footrest from the adjustment hooks, adjust the angle of the footrest, and when lowering the footrest, lock the footrest. Make sure that it is locked at the same height. LENGTH ADJUSTMENT ATTENTION! After the footrest height adjustment is completed, tighten the previously loosened screws on both...

  • Page 14: Side Supports

    5. How to use the stroller 5.4 Footrest adjustment FOOTPLATE TILT ANGLE ADJUSTMENT DECREASE IN THE DEGREE OF SCREW EXTENSION - INCREASED TILT ANGLE OF THE FOOTPLATE INFORMATION! By extending the screw, the degree of tilt of the footplate is adjusted. Be sure to tighten the nut after the adjustment is completed.

  • Page 15: 4-Point Safety Vest

    5. How to use the stroller 5.6 4-point safety vest...
  • Page 16 5. How to use the stroller 5.6 4-point safety vest...

  • Page 17: Headrest

    5. How to use the stroller 5.6 4-point safety vest ATTENTION! When using the vest, remember to use additional stabilizing elements to prevent the user from slipping off the seat of the stroller. Before using the vest, read the information - How to use vests on page 26 of the manual.

  • Page 18: Central Brake With Adjustable Down Force

    5. How to use the stroller 5.9 Central brake with adjustable down force INFORMATION! In order to properly activate the brake, it is necessary to apply force again after moving the brake lever down, as well as to overcome the break point of the brake. In addition, it will lower its level and effectively block the wheels.

  • Page 19: Main Upholstery - Disassembly

    5. How to use the stroller 5.10 Main upholstery - disassembly UNDER THE SEATREST UNDER THE SEATREST...
  • Page 20 5. How to use the stroller 5.10 Main upholstery - disassembly...
  • Page 21 5. How to use the stroller 5.10 Main upholstery - disassembly INFORMATION! Mounting the upholstery is done in the opposite way to removing it. It is necessary to: 1. Put on the side calf covers. 2. Put the main upholstery on the stroller. 3.

  • Page 22: The Use Of The Stroller

    6. The use of the stroller ATTENTION! Before using the product, read the user manual and follow the information contained therein. Do not forget to prepare both product as well as user before using stroller! 6.1 Preparation of the user Before using the product, it is essential to make sure that: user's outfit is light and comfortable sporty clothes are advisable, ź...
  • Page 23 6. The use of the stroller 6.2 Getting on and off the product place the user in the device (Fig. 1), ź fasten the elements used to stabilize the user, ź place the support and positioning elements of ź the user, install the remaining equipment.

  • Page 24: Sitting Position

    6. The use of the stroller 6. 3 Sitting position The first use of the device usually takes place at a rehabilitation, neurology, neurosurgery or orthopedics center. It is especially important to correctly adjust each element of the device to the user regarding their condition and taking into account existing contractures and deformations.

  • Page 25: Riding The Special Needs Stroller

    6. The use of the stroller 6.5 Riding the special needs stroller While using the stroller, always hold it by the handle to prevent it from rolling uncontrollably. To start moving, release the central brake and, holding the handle, guide the stroller in a safe direction. Moving on sloped surfaces When going uphill, always position the stroller facing the direction of travel.

  • Page 26: How To Use Vests

    6. The use of the stroller 6.6 How to use vests ATTENTION! The vest provides posture support for special needs stroller users as well as users sitting in positioning chairs or other rehabilitation seats. When properly used, the vest allows the user to adopt the correct sitting position for a longer period of time.
  • Page 27 6. The use of the stroller 6.6 How to use vests 4) Secure the vest: ź fasten and adjust the lower straps of the vest, so that the lower edge of the vest is located near the lower abdomen of the user, ź...
  • Page 28 6. The use of the stroller 6.6 How to use vests How to care for the vest: The vest works effectively only if kept clean and maintained in accordance with the manufacturer's instructions. Before each use of the vest, check whether: 1) The vest straps are not frayed or worn.

  • Page 29: Safety Rules

    7. Safety rules ATTENTION! RACER® special needs stroller has to be used with compliance to guidelines included in this user manual. Do not forget to prepare both product as well as user before using the device. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size.
  • Page 30 7. Safety rules 11. Please pay your attention when approaching to sources of fire or sources of high temperature during using the device. Moreover, stroller shouldn't be stored in rooms with high humidity, basements, outdoors - balconies or terraces. If it is necessary and the product will be stored for a longer period of time outside rooms with low humidity, it should be protected with a waterproof cover.

  • Page 31: Terms Of Warranty

    Department (ph. +48 17 864 04 77, e-mail: export@akces-med.com). 9. Maintenance and cleaning The special needs stroller RACER® which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The stroller should be kept in a clean, dry and ventilated room.
  • Page 32 9. Maintenance and cleaning ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the special needs stroller, Akces-MED Ltd., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels, ź...
  • Page 33 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. FREQUENCY WHAT SHOULD BE CHECKED? WHAT SHOULD BE DONE? REMARKS BEFORE EACH USE General condition of the product. Check: the entire product for any visible damage, cracks or mechanical defects, ź...
  • Page 34 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. FREQUENCY WHAT SHOULD BE CHECKED? WHAT SHOULD BE DONE? REMARKS ONCE A MONTH Wheel axles, quick connectors (if applicable). Check: if the wheels are rolling and if they are not loose.

  • Page 35: Labelling

    10. Labelling Declaration that the product meets the essential Do not dry in a drum dryer requirements Dry vertically Catalog number Serial number Do not chlorinate Please read the manual instructions before use Do not iron Do not dry clean You need to take special precautions! Do not bleach Manufacturer...
  • Page 36 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka ph. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2024...
