Dynojet Power Commander V Installation Manual page 6

FIG.K
Ground
FIG.L
FIG.M
16-044 www.powercommander.com

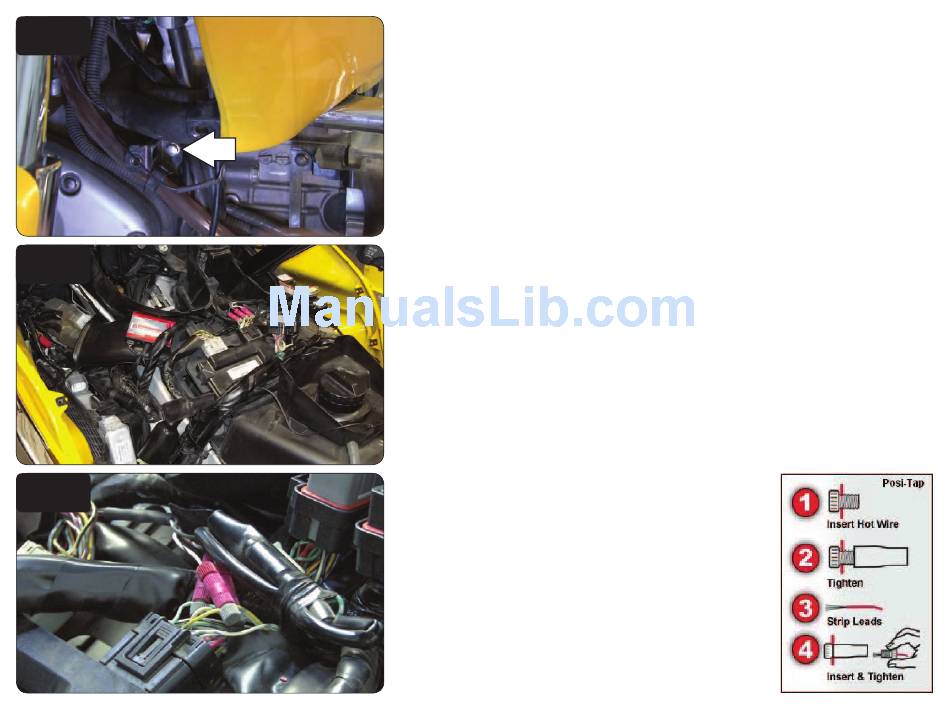

14 Secure the ground wire of the PCV harness branch with the 6mm ring lug to
this bolt at the front of the engine, shown in Figure K.
15 Reinstall the left air scoop.
16 Use 2 of the supplied Velcro strips to secure the PCV module on top of the left
air scoop (Fig. L).
Clean the surface with the supplied alcohol swab prior to applying the Velcro.
17 Route the PCV harness branch with unterminated wires towards the BLACK
connector of the bike's ECM.
18 Use the 3 supplied Posi-taps to attach the 3
unterminated PCV wires to the 3 appropriate wires
of the bike's ECM (Fig. M).
The PCV GREY wire goes to the stock LIGHT
GREEN wire on the BLACK ECM connector.
The PCV WHITE/BROWN wire goes to the stock
YELLOW wire on the BLACK ECM connector.
The PCV BROWN/WHITE wire goes to the
stock WHITE/YELLOW wire on the BLACK ECM
connector.
2009-2013 Honda Goldwing/FB6 - PCV - 6
