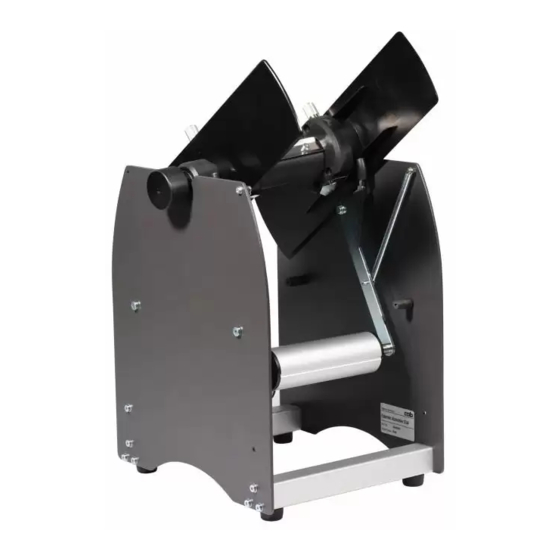

- Page 1 External Unwinder EU4 for Thermal Transfer Printer A3/A4/M4 Art.-No. 5946091 External Unwinder EU6 for Thermal Transfer Printer A6 Art.-No. 5946421 External Unwinder EU8 for Thermal Transfer Printer A8 Art.-No. 5945806 Operator’s Manual Edition 12/03...
-
Page 2: Product Description
Product Description The External Unwinders are peripheral devices for printers of different manufacturers. To handle large print jobs the external unwinder is available, it allows you to unwind complete rolls of label material. For a correct alignment of the External Unwinders with the printers of the A- and M-Series an Adapter Kit ( part no. -
Page 3: Delivery Contents
Delivery Contents NOTICE ! Retain packing material for later use ! - Unwinder - Winding Axle - 2 Flanges - 2 Winding Adapters - 8 Screws - Operator's Manual... -
Page 4: Placing The Unwinder
Placing the Unwinder When you switch between outside and inside wound materials you have to turn the unwinder 180 degrees. Compare for this in the two following figures the position of the swing arm (7). Fig. 1 Placing the Unwinder for outside wound Labels Fig. -
Page 5: Media Loading
Media Loading The mounting steps are depending on the cardboard core of the choosen material roll. Possible cardboard cores are 1.56 in ( 40 mm) and 3 in ( 76 mm). At first you have to prepare the flanges and the winding axle in dependence to the cardboard core: Preparing the Winding Axle and the Flanges There is a spring (8) mounted on the winding axle (2) to guarantee a properly... - Page 6 Retaining Rolls with 1.56 in ( 40 mm) Cardboard Core on the Winding Axle NOTICE ! Before mounting the winding axle read this chapter and "Insertion of the prepared Winding Axle" and attend on the running of the media in dependence to inside and outside wound label rolls.
- Page 7 Retaining Rolls with 3 in ( 76 mm) Cardboard Core on the Winding Axle NOTICE ! Before mounting the winding axle read this chapter and "Insertion of the prepared Winding Axle" and attend on the running of the media in dependence to inside and outside wound label rolls.
- Page 8 Insertion of the prepared Winding Axle NOTICE ! Attend on the different positions of the Unwinder. The position depends on the wounding of the material rolls as described in chapter "Placing the Unwinder". Fig. 7 Unwinding from a Roll with outside wound Labels Fig.
-
Page 9: Adjusting The Unwinder
Adjusting the Unwinder To avoid crinkling in the material running the unwinder has to be aligned exactly to the printer. For a trouble-free adjustment of the unwinder to a printer of the A- or M-Series an adapter kit ( part no. 5948170) is offered. The printer is correct aligned, when the running of the material at the printers chassis (A) is in line with the material-sided edge of the flange (B): Fig. - Page 10 D-76131 Karlsruhe Telefon 0721 / 66 26-0 Telefax 0721 / 66 26-249 copyright by cab / 9008309 / xxx / x Angaben zu Lieferumfang, Aussehen, Leistung, Maßen und Gewicht entsprechen unseren Kenntnissen zum Zeitpunkt der Drucklegung. Änderungen sind vorbehalten. All specifications about delivery, design, performance and weight are given to the best of our current knowledge and are subject to...
