Step 4 Nozzle Mounting
The nozzle assembly should be installed 90° to the direction of airflow.
On round intake tubes, this is 360° around the tube meaning the nozzle
can be mounted in any direction. This will ensure maximum cooling as
the nozzle sprays in a cone pattern. Be sure that the nozzle is higher
than the reservoir to avoid siphoning.

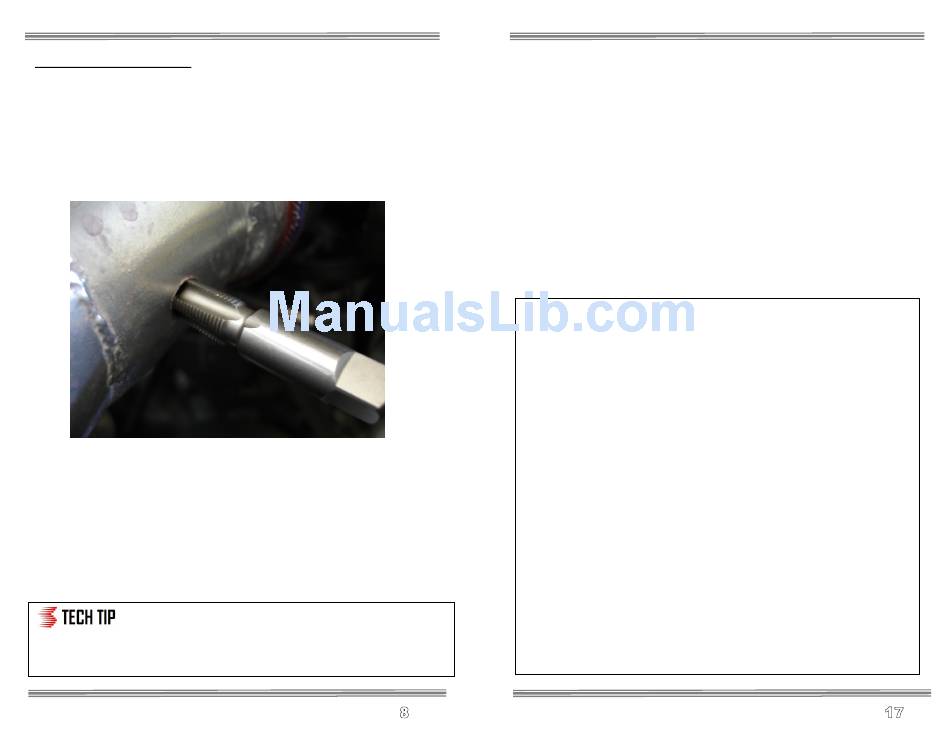

Drill and tap (11/32" pre-drill, 1/8"-27 NPT tap) air inlet tube as close as
possible to throttle body/throttle plate.
The nozzle is mounted using its external 1/8 NPT threads. Tighten the
nozzle and nozzle holder assembly one half turn past finger tight using
E6000® to seal the threads.
Carb Plates are available for 4150 and 4500 style square bore
carburetors.
You can mount the nozzle in a plastic or rubber air inlet tube using a
Nozzle Mounting Adapter (#40110). Weld-in aluminum (#40120) and
steel (#40130) are available.
The typical nozzle mounting point is before the
throttle body/plate. If you mount the nozzle after
the throttle body/plate (including the use of a carb spacer plate), a
Solenoid Upgrade (#40060) must be used to prevent siphoning at
idle.
© 2009, Snow Performance, Inc
Install Notes
Pump Setting ____________(psig)
Nozzle Size ____________(ml/min)
Boost / Vacuum setting _________
Misc:
Disclaimer
Do not use this product until you have carefully read the following agreement.
This sets forth the terms and conditions for the use of this product. The installation of this
product indicates that the BUYER has read
and understands this agreement and accepts its terms and conditions.
Performance products by their nature are designed to increase horsepower and
performance not engineered in the original vehicle and the increased stress could result in
damage to related systems. This is a high performance product – use at your own risk.
Snow Performance Inc., Its agents, employees or owners shall not be under any liability
whether in contract or otherwise whether or not resulting from our negligence or contents of
information supplied for any damage or loss resulting from such information.
The BUYER is responsible to fully understand the capability and limitations of his/her
vehicle according to manufacturer specifications
and agrees to hold the SELLER harmless from any damage resulting from failure to adhere
to such specifications.
The SELLER disclaims any warranty and expressly disclaims any liability for personal
injury or damages. The BUYER acknowledges
and agrees that the disclaimer of any liability for personal injury is a material term for this
agreement and the BUYER agrees to
indemnify the SELLER and to hold the SELLER harmless from any claim related to the
item of the equipment purchased. Under no
circumstances will the SELLER be liable for any damages or expenses by reason of use or
sale of any such equipment.
The BUYER is responsible to obey all applicable federal, state, and local laws, statutes,
and ordinances when operating his/her
vehicle, and the BUYER agrees to hold SELLER harmless from any violation thereof.
The SELLER assumes no liability regarding the improper installation or misapplication of its
products.
It is the installer's responsibility to check for proper installation and if in doubt, contact the
manufacturer.
