Accton Technology Volare Sensor 2 Quick Start Manual

Q ui c k Sta r t G u id e
Cloud-Enabled Indoor Access Point

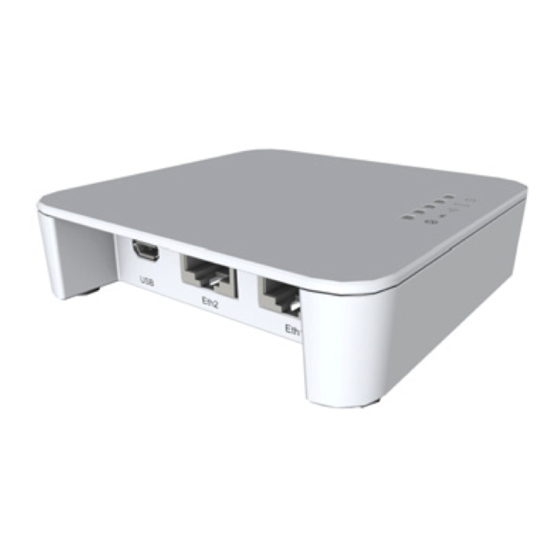

Volare Sensor 2
1. Unpack the AP
◆
Volare Sensor 2
◆ Universal AC/DC power adapter
◆
USB cable — Micro to Type A
◆
Cat 5e Ethernet cable, 1.2 m (4 ft)
◆
2 Med Command strips
◆
Quick Start Guide (this document)

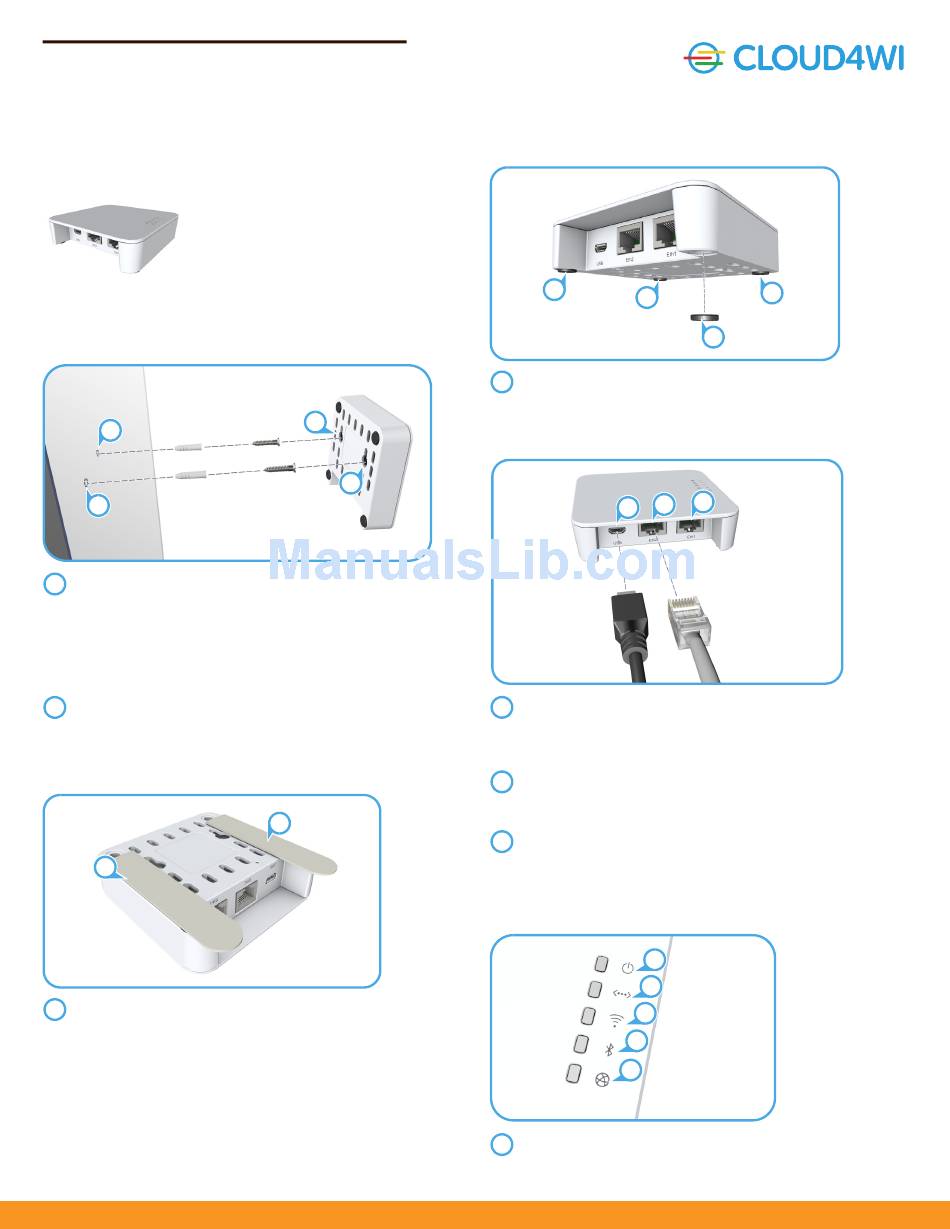

2. Mount the AP
a. Mounting the AP on a Wall
1
1
1 At the installation location on the wall, mark two holes
44 mm (1.73 in) apart for the wall plugs and screws (not
included).
Drill two holes for the wall plugs, and then insert the plugs
and tap them flush with the wall surface.
Insert the two screws in the wall plugs leaving the screw
heads about 5 mm from the wall surface.
2
With its ports facing down, place the AP's mounting points
over the two screws, and then slide it down on the screws.
Do not let go of the AP until you confirm that it is secure.
b. Alternative Wall-Mounting Method
1
1 Position and stick the two supplied Med Command strips to
the base of the AP as shown.
Position the AP on the wall and press firmly for 30 seconds.
Remove the AP from the wall to separate the strips. Wait a
further hour before mounting the AP.
Mount the AP by pressing the strips together until they click.
cloud4wi.com
2
2
1
c. Mounting the AP on a Desktop
1
1 Attach the included four rubber feet to the base of the AP.
Place the AP on the desktop.
3. Connect Cables
1
1
Connect the cable from the AC/DC power adapter to the USB
power jack on the AP.
Connect the power adapter to a nearby AC power source
(100-240 VAC, 50/60 Hz).
2 Connect Category 5e or better cable to the 1000BASE-T
Eth1 RJ-45 port.
Connect the other end of this cable to a LAN switch.
3 (Optional) Connect a local LAN device to the Eth2 RJ-45 port
on the AP using Category 5e or better cable.
This Eth2 RJ-45 port is a 100BASE-TX port.
4. Verify AP Operation
4
5
1 The power LED should be on green.
– 1 –
1
1
1
2
3
1
2
3
E122017-CS 150200001xxxX R01
