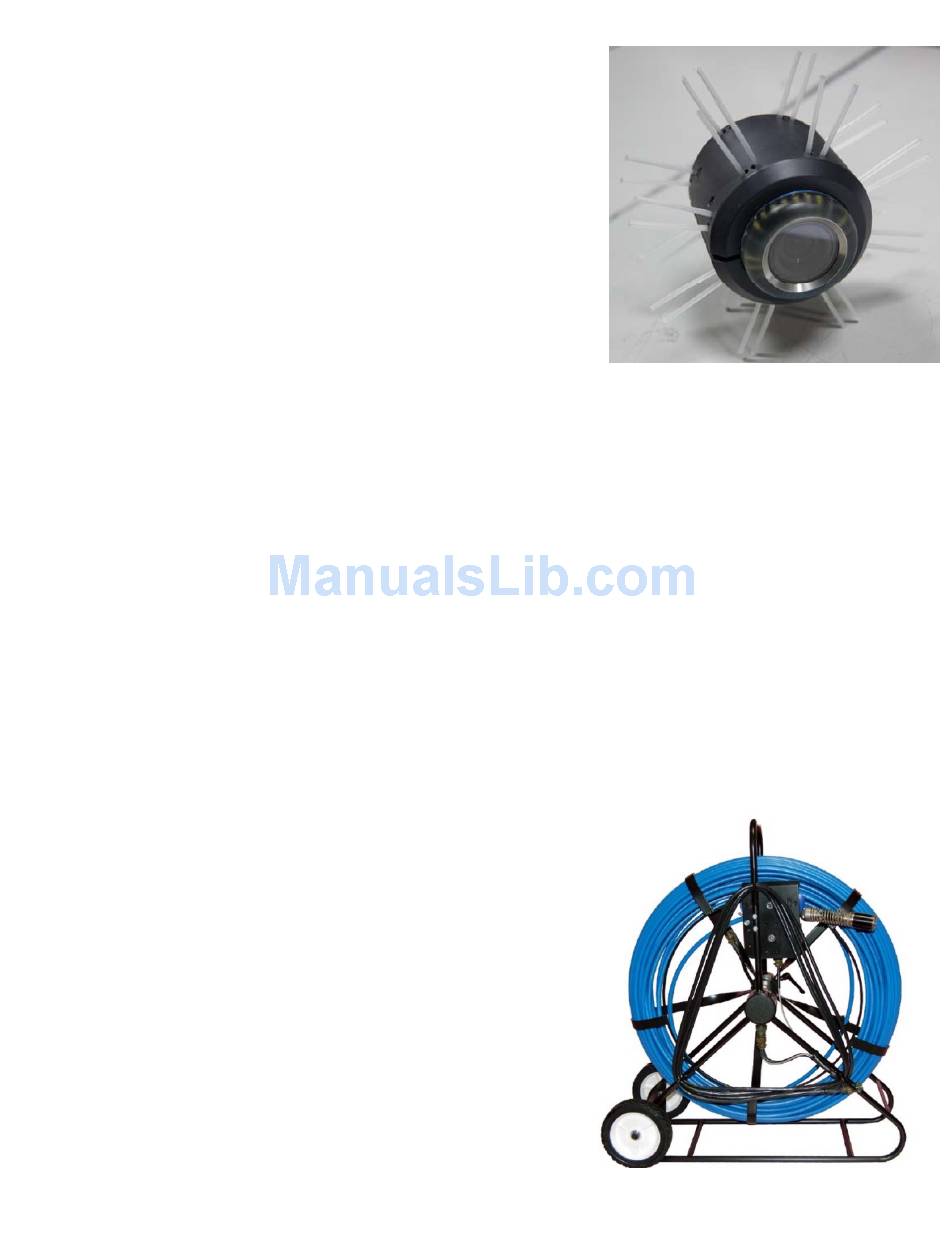

Figure 1.2
The lighthead dome cover contains two O-rings and is
fastened with three stainless steel flathead screws. While
the lighthead dome cover can be removed for service,
opening the camera further by an unauthorized service
technician is not recommended and will void the warranty.
The rear of the camera is terminated with a built-in six pin
male connector, which mates with the push cable
connector. They are held together with three stainless steel combination head screws. An
O-ring has been placed between the camera and the cable connector to seal out liquids.
Procedures for camera maintenance are covered in the maintenance section of this manual.
Push Reel
The push reel (Fig. 1.3) safely stores and dispenses the video push cable and camera head.
It is lightweight and contains wheels for mobility.
A brake handle is provided to keep the cable basket from rotating when transporting the unit.
After the basket is locked, the brake handle can be repositioned by lifting and rotating into a
stored position.
The push reel also features a quick disconnect block termination. This feature allows the
user to easily swap out push cable by simply disconnecting the cable from a single
connector.
The interconnect cable is used for all electrical
connections from the power control unit (PCU) to the
push reel. Although the interconnect cable can be
removed from the reel, brackets are provided for windup
storage.
Figure 1.3
