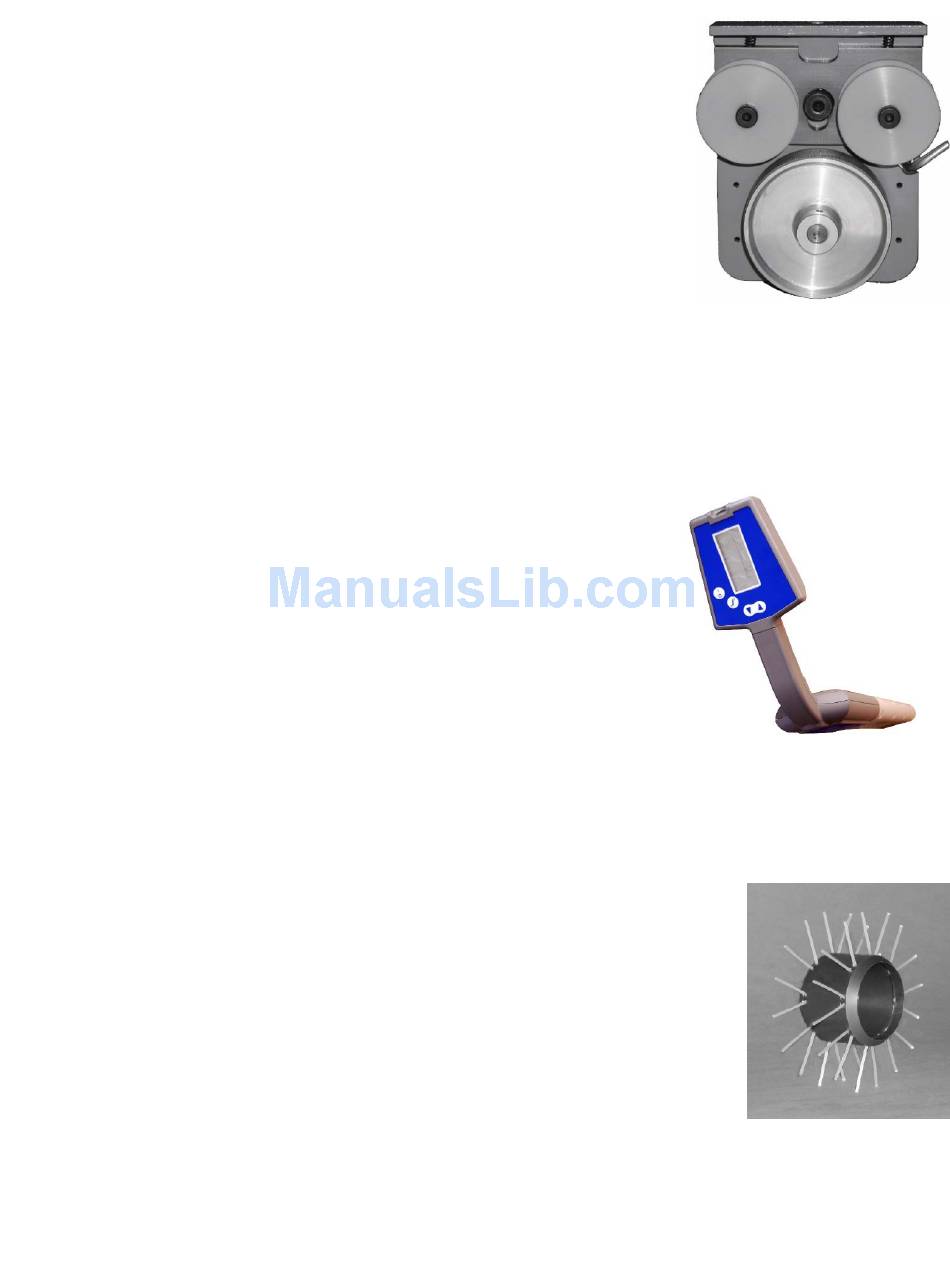

Figure 3.2 shows the internal components of the cable reel footage
head including the meter wheel and pressure wheels. The footage
head meter wheel must be kept clean of grease and dirt to ensure
proper operation. It is also recommended that all axles be
lubricated periodically.
Figure 3.2
Tracker II Pipe Location System
The UEMSI/HTV Tracker II is an extremely accurate and easy-to-use pipe location system.
This includes the receiver, which has an LCD screen with a digital display and a variable
audible tone. It works hand-in-hand with the In-line transmitter, which attaches directly
behind the camera head on the push cable. The transmitter is powered by the power control
unit and has a range of up to 20'. (Fig. 4)
Figure 4
Brush Skids
UEMSI/HTV offers 3"-5" brush skids for CM-1 camera heads. 4"-6" and 8" brush skids are
offered for CM-1 and Pro Eye camera heads.
Each camera head is shipped with a factory-installed brush skid
assembly. (Fig. 5) To convert it to a 4" skid, loosen the two socket head
cap screws with a 7/64" hex wrench, and remove the skid from the
camera head. Then remove the brushes by pulling them through the
inside of the skid. Reattach the skid onto the camera.
Figure 5
