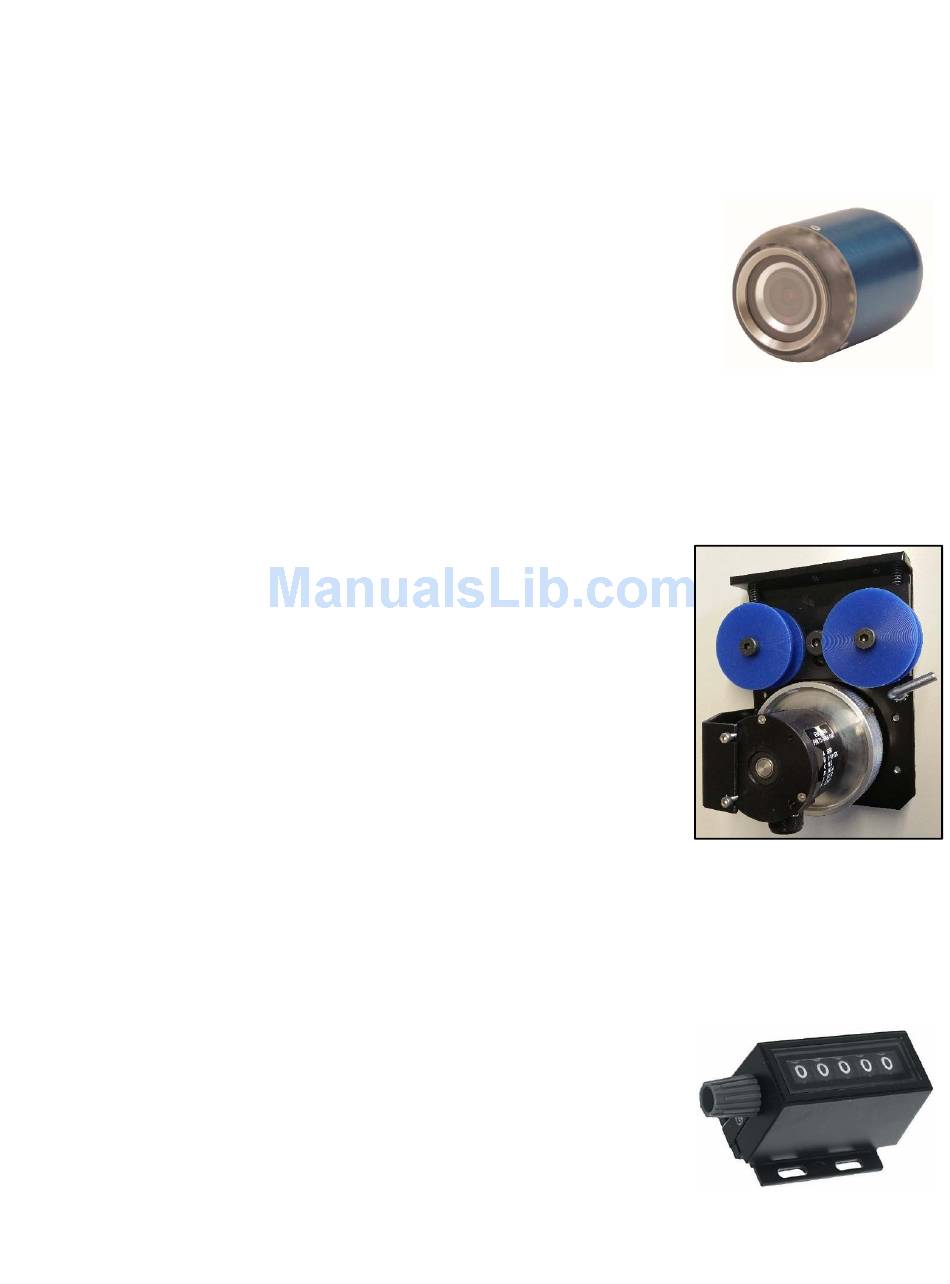

Pro Eye™ Self-Leveling Color Camera Head
This camera head is an upgrade to the standard CM-1™ camera head. The Pro Eye™
automatically keeps the picture upright at all times. In addition there are 21 LEDs instead of
the 15 LEDs in the CM-1™. This option lets the user make fewer adjustments, along with
providing a brighter lighthead to illuminate a larger area. (Fig. 1)
Figure 1
Cable Reel Digital Footage Head
This is part of the Data Display Unit option. This cable reel footage head displays the feet of
cable on the monitor that have been pulled off the reel. See separate "Operation Manual
for DDU".
The internal components (Fig 2) of the cable reel digital footage
head include the meter wheel and pressure wheels. The footage
head meter wheel must be kept clean of grease and dirt to ensure
proper operation. It is also recommended that all axles be
lubricated periodically.
Figure 2
Cable Reel Mechanical Footage Head
The cable reel footage head option displays the number of feet of cable that has been pulled
out of the reel. This five digit display counts in tenths of a foot. To reset the footage display,
turn the knob counterclockwise until all zeros appear. (Fig. 3.1)
Figure 3.1
