Power Control Unit (PCU)

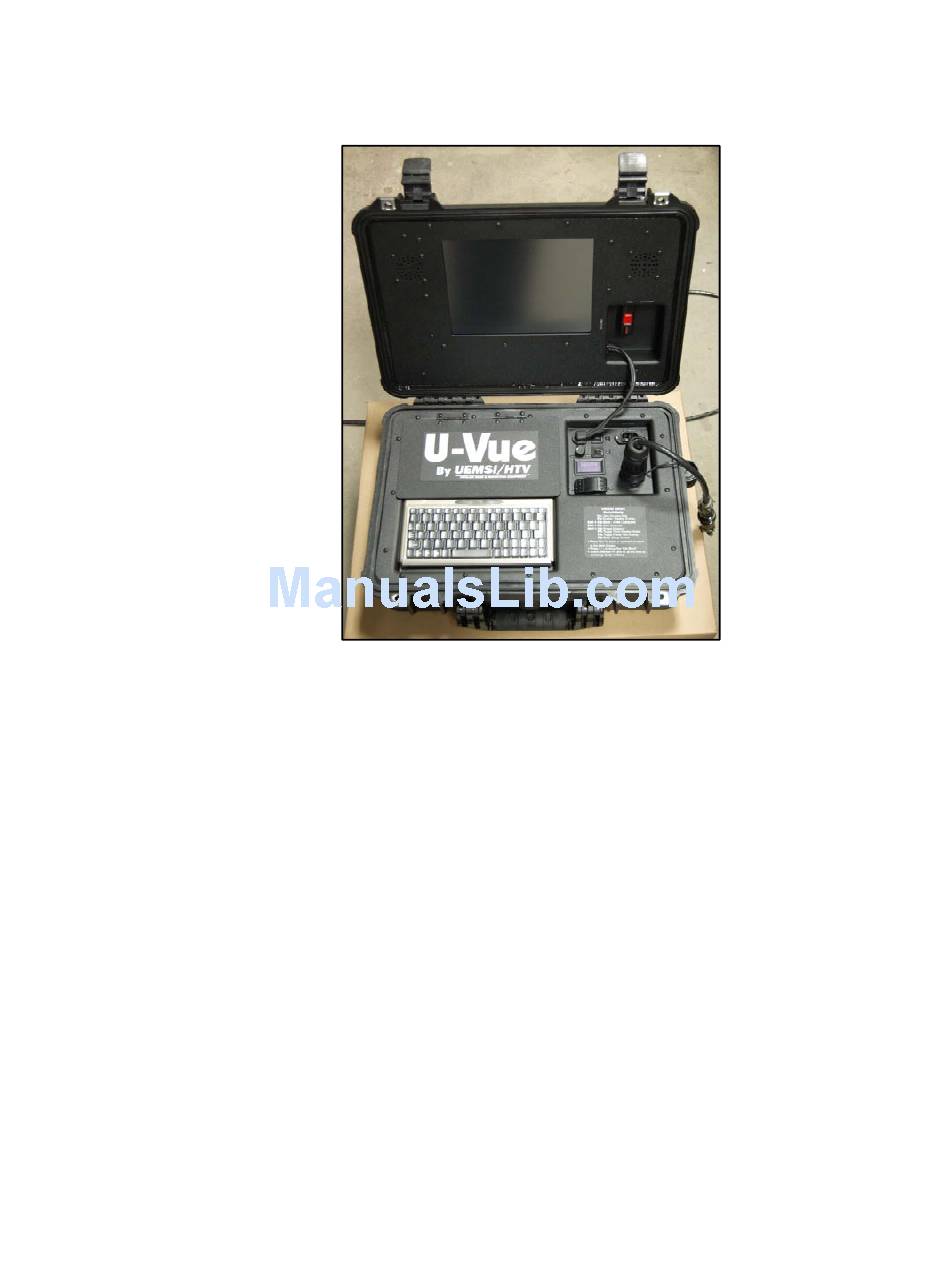

Figure 1.4 show the features of the PCU. The lid is comprised of the 10.4" sunlight readable
color LCD monitor, and the DVR control panel. The lower portion of the case is comprised of
the interface panel with camera controls, and the storage compartment.
System Controls
The system control portion contains the necessary controls for operation and status of the
system. The following is a description of each component along with its associated functions.
Power Switch
There is only one toggle switch that controls both AC and DC power to the unit. The switch is
either "ON" or "OFF". The switch is located on the lower faceplate.
AC Power
Controls power to the system when the 120 volt line cord is being used.
DC Power
Controls power to the system when the 12 volt DC automotive plug is being used.
