Camera Head Removal (Spring Termination)
1. To detach the camera head from the front spring connector,
hook the spanner wrench onto the end of the spring and hold
it. With your other hand, rotate the camera head
counterclockwise until it is unscrewed from the spring. (Fig. 1)
2. Release the tow cable ends (Fig. 2), allowing the spring to be pushed away from the
camera head.
3. Use a screwdriver to remove the three combination screws that fasten the camera
head to the cable/connector end. (Fig. 3)
4. Slide the camera head off of the connector. Pay particular attention to the O-ring,
check it for wear and for proper alignment.
Note: To reassemble, follow steps in reverse order. The connector on the back of the
camera head is keyed so pay particular attention to the orientation when reinstalling. After
reinserting the tow cable ends, rotate the camera head approximately 2-1/2 turns
counterclockwise so that when the camera is threaded onto the front spring connector, the
end result will be straight and untangled tow cables. If the tow cables are tangled they can
cut the curly power cord, so then unwind and repeat the procedure.

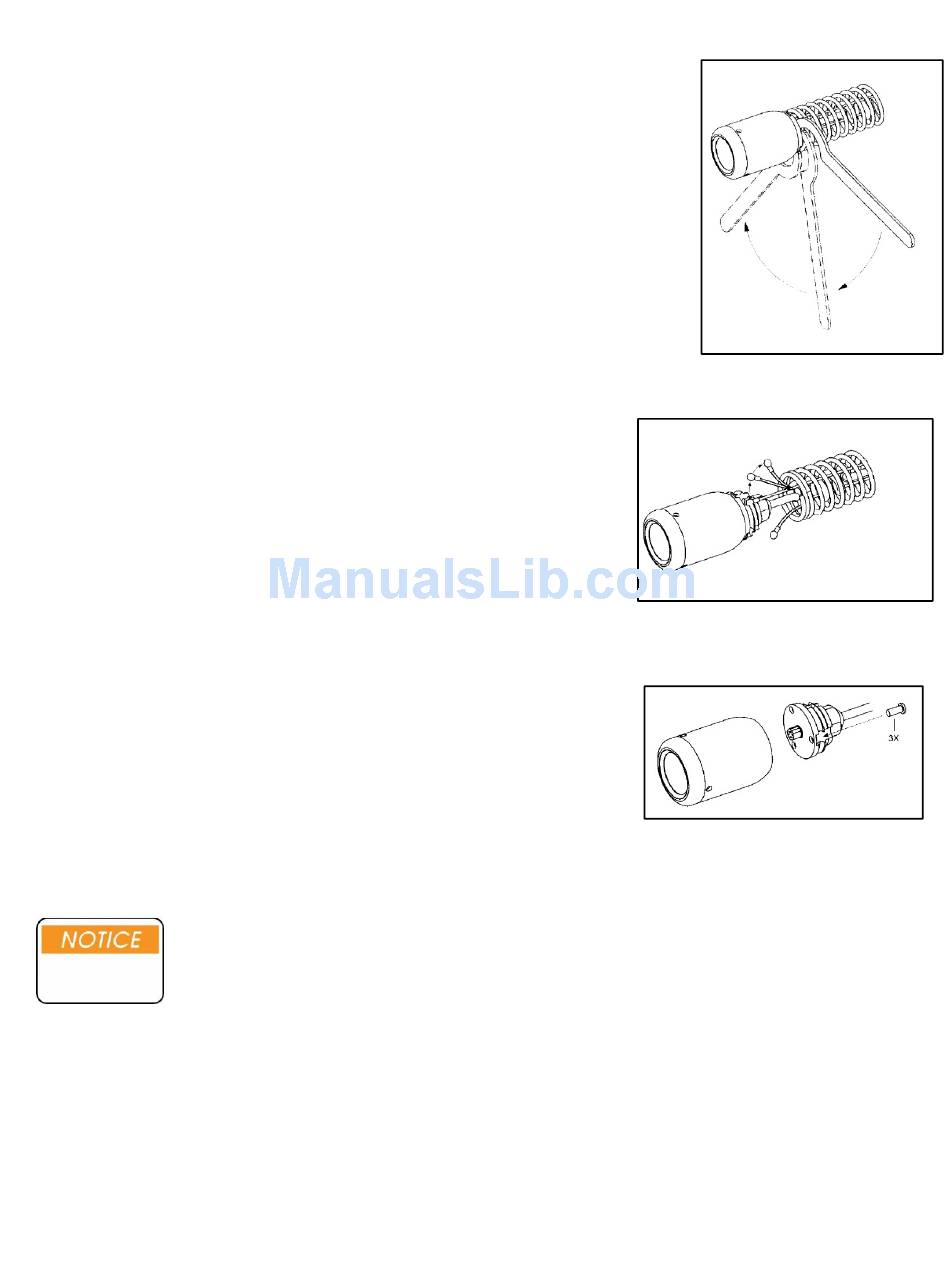

Figure 1
Figure 2
Figure 3
