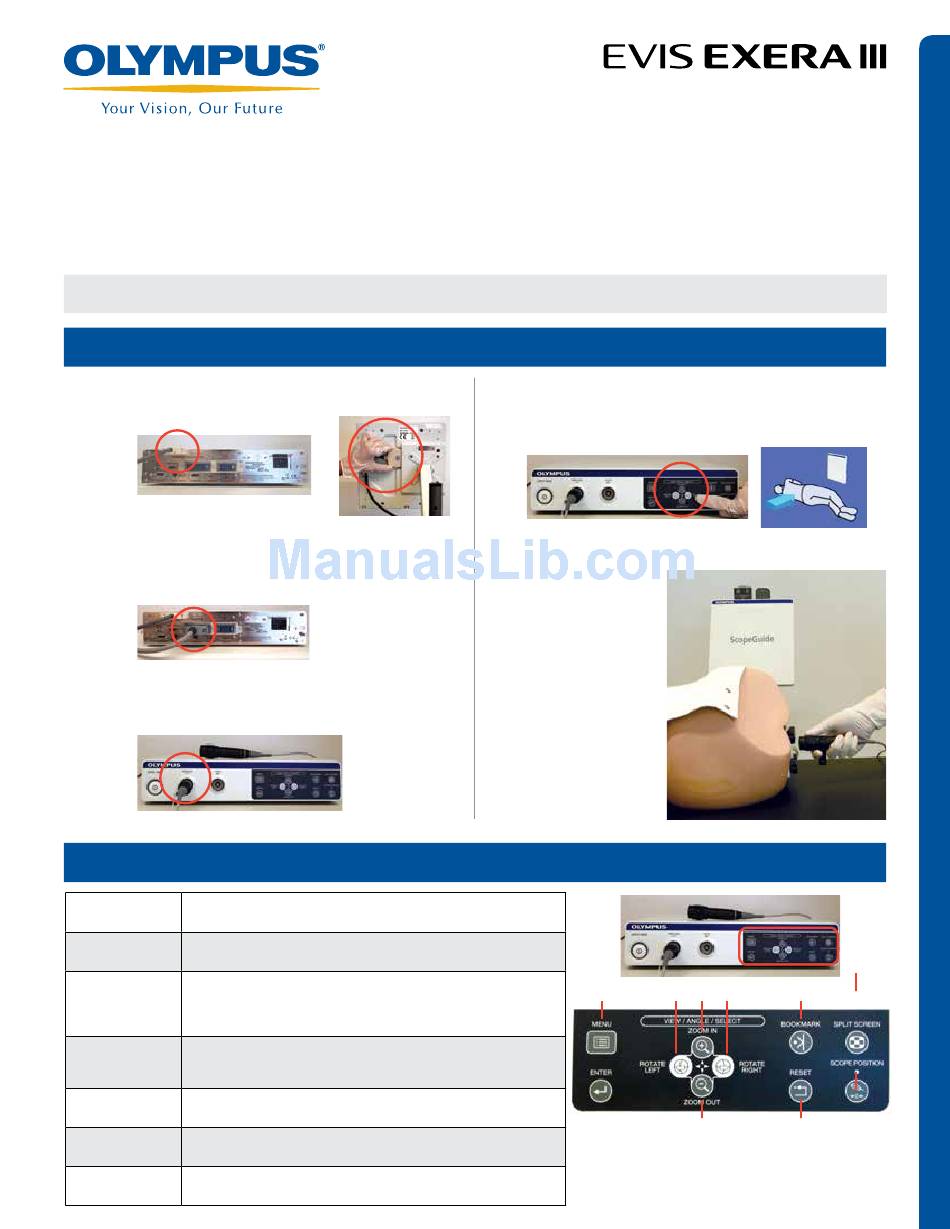

Olympus ScopeGuide UPD-3 Quick Reference Manual

ScopeGuide
Quick Reference Guide
ScopeGuide is designed to provide a real-time 3D image of the shape and configuration of the
colonoscope inside the body.
CAUTION:
This quick reference guide is only a summary of the ScopeGuide Instructions for Use. For detailed operating instructions, be sure to follow the ScopeGuide
(UPD-3) Instruction Manual that was included with your ScopeGuide (UPD-3) purchase.
1
Connect the receiver dish to the UPD-3 via the receiver dish
cable (MAJ-1875).
2
Use the ScopeGuide-enabled CF-HQ190L colonoscope or
connect the MAJ-1878 probe to the UPD cable (MAJ-1881) for
use with a non-ScopeGuide enabled colonoscope.
3
Connect the hand coil (MAJ-1859) to the UPD-3.
1. Menu Press to display or exit the menu list.
Press rotate to change the orientation of the patient image if the
2. Rotate
patient's position on the stretcher changes.
Press to magnify and reduce the endoscope model display if the image
size on the screen is not optimal. Zoom is also helpful if capturing
3. Zoom
images for procedure reports. Magnify the ScopeGuide image to ensure
it is visible in small report images.
Press to mark an area of interest or polyp on the insertion length of the
4. Bookmark scope for reference. Note that actual locations of bookmarked areas
may vary if loops are reduced while manoeuvering to reach the cecum.
5. Split screen Press to alternate between split-screen and single-screen display.
Press to set or release the endoscope start position. This enables the
6. Scope position
processor to measure the length of the scope within the patient.
7. Reset Press to return to default ScopeGuide settings.
®
( UPD-3 )

Pre-Procedure Checklist

ScopeGuide Functions

4
Use the arrow keys or the remote control to change the
orientation of the scope image to correspond with the
positioning of the patient after the system is powered on.
5
Position the receiver
dish (MAJ-1868) next
to the stretcher and
up and over the bed
rail, then align the right
edge of the receiver
dish with the patient's
anus.
6
Set the starting
position by holding the
endoscope tip and the
hand coil close to the
anus. Then press the
scope position button.
1 2 3 2 4
3 7
5
6
