www.ti.com
EVM User's Guide: LM25190QEVM-2100

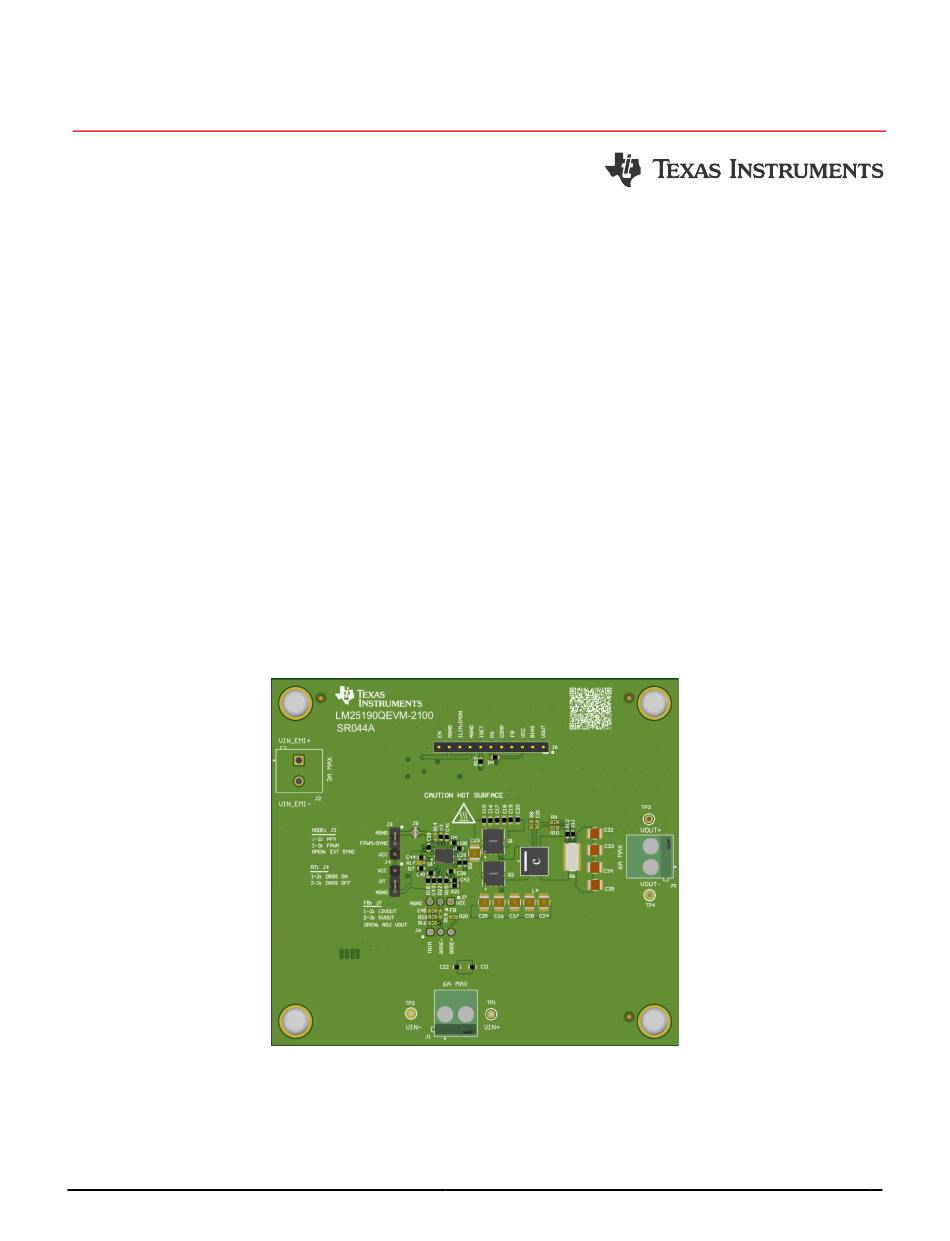

LM25190-Q1 CCCV Buck Controller Evaluation Module
Description
The
LM25190QEVM-2100
is a synchronous buck DC/DC regulator with constant-
current constant-voltage (CCCV) regulation. The EVM
operates over a wide input voltage range of 5.5V to
42V (at J1 VIN terminal), providing a regulated current
of 5A in CC mode and a regulated voltage of 5V
in CV mode. The regulation target of the average
inductor current is programmed by ISET and the
output voltage is adjusted by modifying the feedback
resistors.
Features
Wide input voltage operating range
– 5.5V to 42V: VIN terminal
5V output as a default. The EVM provides
footprints for fixed 12V, 5V, or adjustable output
voltage.
Adjustable average inductor current using ISET
Inductor current monitor using IMON
Integrated standard MOSFET gate drivers
SLVUD36 – NOVEMBER 2024
Submit Document Feedback
evaluation module (EVM)
LM25190Q1EVM
Copyright © 2024 Texas Instruments Incorporated
35µA standby current at V
not connected to VOUT)
Full-load efficiency of 92% at V
2100kHz switching frequency with optional
external clock synchronization
Dual-random spread spectrum
Integrated slope compensation
Forced PWM (FPWM) or pulsed-frequency
modulation (PFM) operation
Overcurrent protection (OCP) with hiccup mode for
abnormal overload conditions
Power-Good indicator with pullup resistor to VCC
Internal 2.75ms soft start in CV mode
CC mode soft start using C
Thermally efficient layout with 6-layer 2oz PCB
Applications
Super capacitor energy backup
E-bikes
Power tools
Server battery-backup unit (BBU)
Energy storage system
LM25190-Q1 CCCV Buck Controller Evaluation Module
Description
= 12V (BIAS is
SUPPLY
= 12V
SUPPLY
capacitor
ISET
and
solar energy
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM25190QEVM-2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LM25190QEVM-2100

  • Page 1 Server battery-backup unit (BBU) • Inductor current monitor using IMON • Energy storage system solar energy • Integrated standard MOSFET gate drivers LM25190Q1EVM SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction The LM25190QEVM-2100 EVM is a synchronous buck DC/DC regulator with constant-current constant-voltage (CCCV) regulation. The EVM operates over a wide input voltage range of 5.5V to 42V (VIN terminal), providing a regulated current of 5A in CC mode and a regulated voltage of 5V in CV mode. The average inductor current is programmed by controlling the ISET pin voltage and the output voltage is adjusted by modifying the feedback resistor values.
  • Page 3: Test Setup And Procedure

    VIN_EMI– Negative input voltage power connection for EMI test VOUT+ Positive output voltage power connection VOUT– Negative output voltage power connection SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 50Ω injection point for CV loop response measurement. Connected to feedback resistor. BODE+ 50Ω injection point for CV loop response measurement. Connected to output capacitor. LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 8. Turn off the input power source. SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 = 42V SUPPLY 0.001 0.002 0.005 0.01 0.02 0.05 0.2 0.3 0.5 Output Current [A] Figure 3-2. PFM Mode, Log Scale LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 = 5A Resistive Load SUPPLY LOAD 3.1.2.2 Switching VOUT 50mV/DIV , AC COUPLED ILOUT 2A/DIV Figure 3-5. Output Ripple, V = 12V SUPPLY SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 = 12V, FPWM, 0A to 3A SUPPLY VOUT 0.2V/DIV ILOUT 5A/DIV Figure 3-8. Load Transient Response, V = 12V, PFM, 0A to 3A SUPPLY LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 3.1.4 Bode Plot PHASE GAIN Figure 3-11. Bode Plot, V = 12V, V = 5V, I = 5A SUPPLY LOAD LOAD SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 = 1Ω, DRSS OFF SUPPLY LOAD Figure 3-13. 150kHz to 30MHz, V = 12V, R = 1Ω, DRSS ON SUPPLY LOAD LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 * USE >= 16V Output Capacitors for 12Vout ILIM/IMON ILIM/IMON AGND ISET ISET VOUT COMP COMP AGND BIAS BIAS VOUT Figure 4-1. EVM Schematic SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12: Pcb Layout

    LM25190 EVM uses a 6-layer PCB with 2oz copper thickness. Figure 4-2. Top Components (Top View) Figure 4-3. Bottom Components (Bottom View) LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Hardware Design Files Figure 4-4. Top Layer Copper (Top View) Figure 4-5. Layer 2 Copper (Top View) SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com Figure 4-6. Layer 3 Copper (Top View) Figure 4-7. Layer 4 Copper (Top View) LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 Hardware Design Files Figure 4-8. Layer 5 Copper (Top View) Figure 4-9. Bottom Copper (Top View) SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16: Bill Of Materials

    PowerPAD ™ is a trademark of Texas Instruments. WEBENCH ® is a registered trademark of Texas Instruments. All trademarks are the property of their respective owners. LM25190-Q1 CCCV Buck Controller Evaluation Module SLVUD36 – NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17: Documentation Support

    Thermally Enhanced Package application report • Texas Instruments, PowerPAD ™ Made Easy application brief • Texas Instruments, Using New Thermal Metrics application report SLVUD36 – NOVEMBER 2024 LM25190-Q1 CCCV Buck Controller Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
