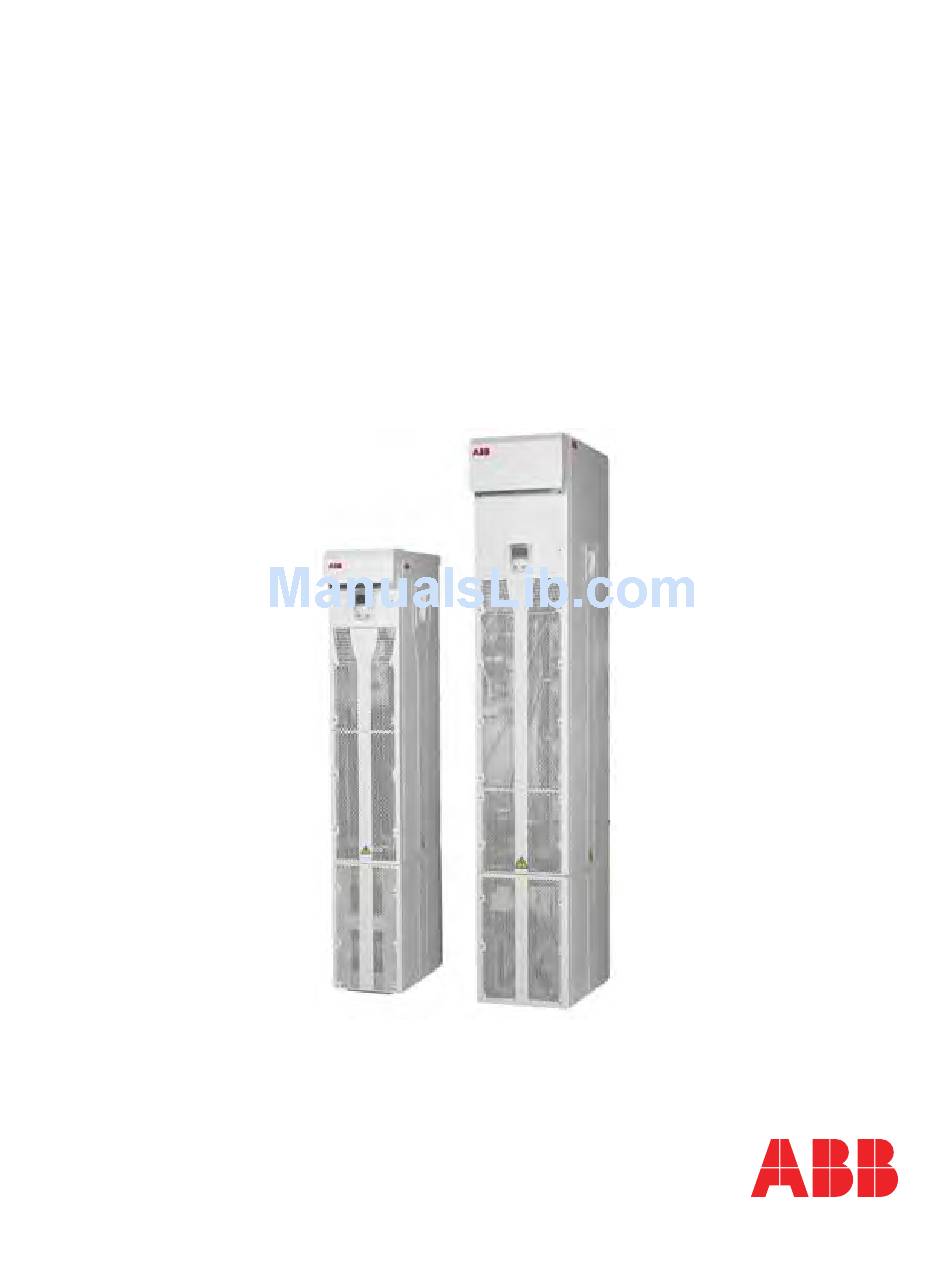

Page 1 ACS550 User’s Manual ACS550-02 Drives (132…355 kW) ACS550-U2 Drives (250…550 hp) Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 2 ACS550-02/U2 Drive Manuals GENERAL MANUALS MAINTENANCE MANUALS ACS550-02/U2 User's Manual (132…355 kW) / Guide for Capacitor Reforming in ACS50, ACS55, (250…550 hp) ACS150, ACS350, ACS550 and ACH550 3AFE64804626 (English) 3AFE68735190 (English) • Safety • Planning electrical installation • Installation • Start-up, control with I/O and ID Run •...
Page 3 ACS550-02/U2 Drives 132…355 kW 250…550 hp User’s Manual 3AFE64804626 Rev C EFFECTIVE: 17.09.2007 © 2007 ABB Oy. All Rights Reserved. Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 4: Acs550-02/U2 User's Manual
ACS550-02/U2 User’s Manual Safety Use of warnings and notes There are two types of safety instructions throughout this manual: • Notes draw attention to a particular condition or fact, or give information on a subject. • Warnings caution you about conditions which can result in serious injury or death and/or damage to the equipment.
Page 5 I/O board of the drive. The maximum allowed number of charging cycles of the DC capacitors (i.e. power-ups by applying power) is five in ten minutes. WARNING! The ACS550-02/U2 is a field repairable drive. In case of service or repair of malfunctioning drive, contact your local Authorized Service Centre for service.
Page 6 An overturning drive can cause physical injury. Do not tilt! Note: For more technical information, contact the factory or your local ABB representative. Safety Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 7: Table Of Contents
ACS550-02/U2 Drive Manuals ........
Page 8: Table Of Contents
ABB control profiles technical data ........
Page 9: Table Of Contents
Providing feedback on ABB Drives manuals ........
Page 10 ACS550-02/U2 User’s Manual Installation and commissioning flowchart Task Identify the frame size of your drive, R7 or R8. on page Technical data: Ratings application requirements Plan the installation. on page Planning the electrical installation on page Technical data Check the ambient conditions, ratings, required...
Page 11: Checking The Compatibility Of The Motor
Planning the electrical installation Note: The installation must always be designed and made according to applicable local laws and regulations. ABB does not assume any liability whatsoever for any installation which breaches the local laws and/or other regulations. Furthermore, if the recommendations given by ABB are not followed, the drive may experience problems that the warranty does not cover.
Page 12 In addition, the cables must be selected and installed according to the instructions given in this manual. ACS550-02/U2 devices are equipped with a common mode filter (CMF) which is adequate to prevent bearing currents at voltages less than 500 V.
Page 13 Û motor nominal power du/dt du/dt filter at the output of the drive or internal du/dt limitation. Contact ABB. N-end bearing: insulated motor non-drive end bearing * Common mode filter (CMF) is included in ACS550-02/U2 as standard. Planning the electrical installation...
Page 14: Supply Connection
ACS550-02/U2 User’s Manual Supply connection Disconnecting device (means) Install a hand-operated input disconnecting device between the AC power source (MCC) and the drive. The disconnecting device must be of a type that can be locked to the open position for installation and maintenance work.
Page 15: Thermal Overload And Short-Circuit Protection
ACS550-02/U2 User’s Manual Thermal overload and short-circuit protection Thermal overload protection of the drive and the input and motor cables The drive protects itself and the input and motor cables against thermal overload when the cables are dimensioned according to the nominal current of the drive. No additional thermal protection devices are needed.
Page 16: Ground Fault Protection
2) Circuit breakers which have been tested by ABB with the ACS550 can be used. Fuses must be used with other circuit breakers. See section Fuses and circuit on page 295.
Page 17: Emergency Stop Devices
ACS550-02/U2 User’s Manual Emergency stop devices For safety reasons, install the emergency stop devices at each operator control station and at other operating stations where emergency stop may be needed. Note: Pressing the stop key ( ) on the control panel of the drive does not generate an emergency stop of the motor or separate the drive from dangerous potential.
Page 18 ACS550-02/U2 User’s Manual concentric layer of copper wires. The better and tighter the shield, the lower the emission level and bearing current. Inner insulation Copper wire screen Insulation jacket Cable core Additional US requirements Type MC continuous corrugated aluminum armor cable with symmetrical grounds or shielded power cable must be used for the motor cables if metallic conduit is not used.
Page 19: Power Factor Compensation Capacitors
ACS550-02/U2 User’s Manual Power factor compensation capacitors Power factor compensation is not needed with AC drives. However, if a drive is to be connected in a system with compensation capacitors installed, note the following restrictions. WARNING! Do not connect power factor compensation capacitors or surge absorbers to the motor cables (between the drive and the motor).
Page 20: Equipment Connected To The Motor Cable
ACS550-02/U2 User’s Manual Equipment connected to the motor cable Installation of safety switches, contactors, connection boxes, etc. To minimize the emission level when safety switches, contactors, connection boxes or similar equipment are installed in the motor cable (i.e. between the drive and the motor): •...
Page 21 ACS550-02/U2 User’s Manual Protecting the relay output contacts and attenuating disturbances in case of inductive loads Inductive loads (relays, contactors, motors) cause voltage transients when switched off. It is highly recommended to equip inductive loads with noise attenuating circuits [varistors, RC filters (AC) or diodes (DC)] in order to minimize the EMC emission at switch-off.
Page 22: Selecting The Control Cables
Control panel cable In remote use, the cable connecting the control panel to the drive must not exceed 3 metres (10 ft). The cable type tested and approved by ABB is used in control panel option kits. Planning the electrical installation...
Page 23: Connection Of A Motor Temperature Sensor To The Drive I/O
ACS550-02/U2 User’s Manual Connection of a motor temperature sensor to the drive I/O WARNING! IEC 60664 requires double or reinforced insulation between live parts and the surface of accessible parts of electrical equipment which are either non- conductive or conductive but not connected to the protective earth.
Page 24 ACS550-02/U2 User’s Manual Planning the electrical installation Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 25: Moving The Drive
ACS550-02/U2 User’s Manual Installation WARNING! Only qualified electricians are allowed to carry out the work described in this chapter. Follow the instructions in chapter on page 5. Ignoring the safety Safety instructions can cause injury or death. Note: ACS550-U2 Installation Supplement [3AUA0000004067 (English)] provides more information about the installation of ACS550-U2 drives.
Page 26 ACS550-02/U2 User’s Manual WARNING! The drive is heavy [frame size R7: 115 kg (254 lb), frame size R8: 230 kg (507 lb)]. Lift the drive by the upper part only using the lifting lugs attached to the top of the drive. The lower part will be deformed if used for lifting. Do not remove the pedestal before lifting.
Page 27: Before Installation
ACS550-02/U2 User’s Manual Before installation Delivery check The drive is delivered in a box that also contains: • appropriate user’s manual • optional module manuals • delivery documents. Check that there are no signs of damage. Before attempting installation and operation, check the information on the type designation label of the drive to verify that the drive is of the correct type.
Page 28 ACS550-02/U2 User’s Manual Type code Use the following chart to interpret the type code found on both the type code and the serial number label. ACS550-02-245A-4+J404+ … AC, Standard Drive – 550 product series Construction (region specific) 02 = Setup and parts specific to IEC installation and compliance...
Page 29 ACS550-02/U2 User’s Manual Requirements for the installation site The drive must be installed in an upright position on the floor (or wall). Check the installation site according to the requirements below. Refer to section Dimension on page for frame details. See section...
Page 30 ACS550-02/U2 User’s Manual IT (ungrounded) systems The drive is suitable for IT (ungrounded) systems, but you have to disconnect the EMC filter (frame size R7) and varistor (frame sizes R7 and R8) before connecting the drive to an IT system. See the following sections for how to do this.
Page 31: Checking The Insulation Of The Installation
Earth conductor using a measuring voltage of 500 V DC. The insulation resistance of an ABB motor must exceed 10 Mohm (reference value at 25 °C or 77 °F). For the insulation resistance of other motors, please consult the manufacturer’s instructions.
Page 32: Power Cable Connection Diagram
ACS550-02/U2 User’s Manual Power cable connection diagram OUTPUT INPUT V1 W1 V2 W2 (PE) (PE) Motor Ground the other end of the input cable shield / PE conductor at the distribution board. 1) An alternative to the grounding of the drive and the motor through the cable shield or armour Note: Connecting the fourth conductor of the motor cable at the motor end increases bearing currents and causes extra wear.
Page 33: Installation Procedure
ACS550-02/U2 User’s Manual Installation procedure Choose the mounting orientation (a, b, or c) Lifted from above Symbols: required free space air inlet surface wall fixing point (recommended) Note: The drive can also be installed away from the wall. control panel mounting slot...
Page 34 ACS550-02/U2 User’s Manual Preparing the mounting location on a cable channel In this case there are various ways how to fix the drive onto the channel. 1. Check that there is a place for the fixing holes. 2. Check that there is space under the lead-through plate for the cables.
Page 35 ACS550-02/U2 User’s Manual Installation, orientation a or b Removing the pedestal (frame size R7) 1. Remove the lower front covers by undoing the fixing screws. 2. Undo the red screws that fix the pedestal to the frame from front. 3. Undo the red M8 combi screws (6 pcs) that connect the busbars of the pedestal to the upper frame.
Page 36 ACS550-02/U2 User’s Manual Removing the pedestal (frame size R8) 1. Remove the lower front covers by undoing the fixing screws. 2. Press the left support leg a little down and turn it left. Let it lock down. Turn the right leg aside in the same way.
Page 37 ACS550-02/U2 User’s Manual Red M10 combi screws Pedestal disconnected Installation Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 38 ACS550-02/U2 User’s Manual Fixing the lead-through plate to the floor 1. Make a hole in the floor or cable conduit cover below the lead-through. See section on page Dimension drawings 2. Check that the floor is horizontal with a spirit level.
Page 39 ACS550-02/U2 User’s Manual Removing the EMC screen from the pedestal (frame size R7 only) 1. Remove the EMC screen by undoing the five fastening screws. Note: The screen must be replaced when the cables have been connected. Tightening torque of the fastening screws is 5 N·m (3.7 lbf·ft).
Page 40 ACS550-02/U2 User’s Manual Disconnecting the EMC filter on IT (ungrounded) and corner grounded TN systems (frame size R7 only) WARNING! If a drive with its EMC filter connected is installed on an IT system [an ungrounded power system or a high resistance-grounded (over 30 ohm) power system], the system will be connected to earth potential through the EMC filter capacitors.
Page 41 ACS550-02/U2 User’s Manual Disconnecting the varistor on IT (ungrounded) and corner grounded TN systems (frame size R7) WARNING! If a drive with its varistor connected is installed on an IT system [an ungrounded power system or a high resistance-grounded (over 30 ohm) power system], the system will be connected to earth potential through the varistor.
Page 42 ACS550-02/U2 User’s Manual Disconnecting the varistor on IT (ungrounded) and corner grounded TN systems (frame size R8) WARNING! If a drive with its varistor connected is installed on an IT system [an ungrounded power system or a high resistance-grounded (over 30 ohm) power system], the system will be connected to earth potential through the varistor.
Page 43 ACS550-02/U2 User’s Manual Leading the power (input and motor) cables through the lead-through plate 1. Make adequate holes in the grommets to fit them tightly on the cables. 2. Lead the cables through the holes (all three conductors of a three-phase cable through the same hole) and slide the grommets onto the cables.
Page 44 ACS550-02/U2 User’s Manual Frame size R7 Terminal U1, U2 V1, V2 W1, W2 159 [6.3] 262 [10.3] 365 [14.4] A (hole 1) / mm [in] 115 [4.5] 218 [8.5] 321 [12.6] A (hole 2) / mm [in] PE terminal hole 43 [1.7]...
Page 45 ACS550-02/U2 User’s Manual Frame size R8 Terminal Hole 1 Hole 2 Hole 3 Hole 1 Hole 2 Hole 3 Frame size R8 17.0 15.2 13.5 10.4 11.2 10.4 PE terminal hole 24 [0.9] 56 [2.2] 88 [3.5] 120 [4.7] 152 [6.0] 184 [7.2] 216 [8.5] 248 [9.8] 280 [11.0]...
Page 46 ACS550-02/U2 User’s Manual Connecting the cable lugs to the pedestal 1. If the lead-through plate is fixed to the floor, undo the fixing screws. 2. Place the pedestal onto the lead-through plate. 3. Fasten the pedestal and the lead-through plate to the floor with the screws through the same holes.
Page 47 ACS550-02/U2 User’s Manual Fixing the pedestal to the drive frame 1. Fix the fastening screws. WARNING! The fixing is important because the screws are required for the grounding of the drive. 2. Connect the terminals at the top of the pedestal to the terminals at the bottom of the upper part of the drive frame.
Page 48 ACS550-02/U2 User’s Manual Installation, orientation c (lifting from above) Make the installation otherwise as described in Installation, orientation a or b page but leave the pedestal connected to the frame. • Remove the lead-through plate and the lower front and side plates.
Page 49 ACS550-02/U2 User’s Manual Routing the control/signal cables inside the cubicle Frame size R7 Frame size R8 Secure the cables with cable ties to the holes in the capacitor pack frame. Secure the cables with cable ties to these holes. Lead the cables through the cushions.
Page 50 ACS550-02/U2 User’s Manual Connecting the control cables Connect the control cables as described below. Connect the conductors to the appropriate terminals of the control board. Tighten the screws to secure the connection. Use 0.4 N·m (0.3 lbf·ft) torque for both frame sizes.
Page 51 ACS550-02/U2 User’s Manual Hardware description Terminal for signal cable screen. (Connected internally to chassis ground.) Analog input channel 1, programmable. Default = frequency reference. Resolution 0.1%, accuracy ±1%. J1:AI1 OFF: 0…10 V (R = 312 kΩ) J1:AI1 ON: 0…20 mA (R = 100 Ω)
Page 52 ACS550-02/U2 User’s Manual Note: Terminals 3, 6, and 9 are at the same potential. Note: For safety reasons the fault relay signals a “fault” when the drive is powered down. WARNING! All ELV (Extra Low Voltage) circuits connected to the drive must be used within a zone of equipotential bonding, i.e.
Page 53 ACS550-02/U2 User’s Manual Connecting the shield wires at the control board Single shielded cables: Twist the grounding wires of the outer shield and connect them to the grounding busbar below the X1 terminals. Double shielded cables: Connect the inner shields and the grounding wires of the outer shield to the grounding busbar below the X1 terminals.
Page 54 ACS550-02/U2 User’s Manual Settings of the cooling fan transformer The voltage transformer of the cooling fan is located at the top right-hand corner of the drive. Set to 220 V if the supply frequency is 60 Hz. (The voltage is set to 230 V (50 Hz) at the factory.)
Page 55 ACS550-02/U2 User’s Manual Installation checklist Check the mechanical and electrical installation of the drive before start-up. Go through the checklist below together with another person. Read chapter Safety page before you work on the drive. Check MECHANICAL INSTALLATION The ambient operating conditions are allowed. See...
Page 56: How To Start Up The Drive
ACS550-02/U2 User’s Manual Start-up, control with I/O and ID Run The chapter instructs how to: • perform the start-up • start, stop, change the direction of rotation and adjust the speed of the motor through the I/O interface • perform an Identification Run for the drive.
Page 57 ACS550-02/U2 User’s Manual Check that the starting of the motor does not cause any danger. De-couple the driven machine if: • there is a risk of damage in case of incorrect direction of rotation, or • an ID Run needs to be performed during the drive start-up. ID Run is essential only in applications that require the ultimate in motor control accuracy.
Page 58 ACS550-02/U2 User’s Manual Select the application macro (parameter 9902). The general 9902 parameter setting procedure is given above. The default value 1 ( ) is suitable in most cases. ABB STANDARD Select the motor control mode (parameter 9904). 9904 ) is suitable in most cases. 2 (...
Page 59 ACS550-02/U2 User’s Manual Select the motor identification method (parameter 9910). The default value 0 ( ) using the identification magnetization is suitable for most IDMAGN applications. It is applied in this basic start-up procedure. Note however that this requires that: •...
Page 60 ACS550-02/U2 User’s Manual To change the direction of the motor rotation: forward • Disconnect input power from the drive, and wait 5 minutes direction for the intermediate circuit capacitors to discharge. Measure the voltage between each input terminal (U1, V1 and W1)
Page 61 ACS550-02/U2 User’s Manual How to perform the guided start-up To be able to perform the guided start-up, you need the Assistant Control Panel. Before you start, ensure that you have the motor nameplate data on hand. SAFETY The start-up may only be carried out by a qualified electrician.
Page 62 ACS550-02/U2 User’s Manual After completing a set-up task, the Start-up Assistant suggests the CHOICE Do you want to next one. continue with application setup? • Press (when is highlighted) to continue with the Continue Continue suggested task. Skip EXIT 00:00 •...
Page 63: How To Control The Drive Through The I/O Interface
Ensure that the control connections are wired according to the See section ABB Standard on page 102. connection diagram given for the ABB Standard macro. macro Ensure that the drive is in remote control. Press key to switch In remote control, the panel display shows text REM.
Page 64: How To Perform The Id Run
ACS550-02/U2 User’s Manual How to perform the ID Run The drive estimates motor characteristics automatically using identification magnetization when the drive is started for the first time and after any motor parameter (Group 99: START-UP DATA) is changed. This is valid when parameter...
Page 65 ACS550-02/U2 User’s Manual ID RUN WITH THE ASSISTANT CONTROL PANEL Change parameter to 1 ( ). Save the new setting ID RUN PAR EDIT 9910 by pressing SAVE 9910 ID RUN CANCEL 00:00 SAVE If you want to monitor actual values during the ID Run, go to 50.0Hz...
Page 66: About Control Panels
ACS550-02/U2 User’s Manual Control panels About control panels Use a control panel to control the drive, read status data and adjust parameters. The drive works with either of two different control panel types: • Basic Control Panel – This panel (described in section Basic Control Panel page 92) provides basic tools for manual entry of parameter values.
Page 67: Assistant Control Panel
ACS550-02/U2 User’s Manual Assistant Control Panel Features The Assistant Control Panel features: • alphanumeric control panel with an LCD display • language selection for the display • Start-up Assistant to ease drive commissioning • copy function – parameters can be copied to the control panel memory for later transfer to other drives or for backup of a particular system.
Page 68 ACS550-02/U2 User’s Manual Status line The top line of the LCD display shows the basic status information of the drive. MAIN MENU 49.1Hz No. Field Alternatives Significance 1 Control location Drive control is local, that is, from the control panel.
Page 69 ACS550-02/U2 User’s Manual Initially, the panel is in the Output mode, where you can 49.1Hz start, stop, change the direction, switch between local and 1 Hz remote control, modify the reference value and monitor up to three actual values. To do other tasks, go first to the Main menu and select the appropriate mode on the menu.
Page 70 ACS550-02/U2 User’s Manual How to get help Step Action Display Press to read the context-sensitive help text for the item that is highlighted. PAR GROUPS 01 OPERATING DATA 03 FB ACTUAL SIGNALS 04 FAULT HISTORY 10 START/STOP/DIR 11 REFERENCE SELECT...
Page 71 ACS550-02/U2 User’s Manual How to start, stop and switch between local and remote control You can start, stop and switch between local and remote control in any mode. To be able to start or stop the drive, the drive must be in local control.
Page 72 ACS550-02/U2 User’s Manual Output mode In the Output mode, you can: • monitor actual values of up to three signals in Group 01: OPERATING DATA • change the direction of the motor rotation • set the speed, frequency or torque reference •...
Page 73 ACS550-02/U2 User’s Manual How to set the speed, frequency or torque reference Step Action Display EXIT If you are not in the Output mode, press repeatedly until you get there. 49.1Hz 1 Hz 00:00 MENU If the drive is in remote control (REM shown on the status line), switch to local 49.1Hz...
Page 74 ACS550-02/U2 User’s Manual Parameters mode In the Parameters mode, you can: • view and change parameter values • start, stop, change the direction and switch between local and remote control. How to select a parameter and change its value Step...
Page 75 ACS550-02/U2 User’s Manual How to select the monitored signals Step Action Display You can select which signals are monitored in the Output mode and how they PAR EDIT are displayed with parameters. See page Group 34: PANEL DISPLAY 3401 SIGNAL1 PARAM detailed instructions on changing parameter values.
Page 76 ACS550-02/U2 User’s Manual Assistants mode When the drive is first powered up, the Start-up Assistant guides you through the setup of the basic parameters. The Start-up Assistant is divided into assistants, each of which guides you through the task of specifying a related parameter set, for example Motor Set-up or PID Control.
Page 77 ACS550-02/U2 User’s Manual Step Action Display • To accept the new value and continue to the setting of the next parameter, PAR EDIT SAVE press 9906 MOTOR NOM CURR 1.2 A EXIT • To stop the assistant, press EXIT 00:00 SAVE The table below lists the tasks of the assistants and the relevant drive parameters.
Page 78 ACS550-02/U2 User’s Manual Name Description Set parameters Selecting timed function status indicated through relay output RO 1401 Selecting timed PID1 parameter set 1/2 control 4027 Setting the current and torque limits Protections 2003, 2017 Selecting the signals indicated through relay output RO...
Page 79 ACS550-02/U2 User’s Manual Changed Parameters mode In the Changed Parameters mode, you can: • view a list of all parameters that have been changed from the macro default values • change these parameters • start, stop, change the direction and switch between local and remote control.
Page 80 ACS550-02/U2 User’s Manual Fault Logger mode In the Fault Logger mode, you can: • view the drive fault history of maximum ten faults (after a power off, only the three latest faults are kept in the memory) • see the details of the three latest faults (after a power off, the details of only the most recent fault is kept in the memory) •...
Page 81 ACS550-02/U2 User’s Manual Time and Date mode In the Time and Date mode, you can: • show or hide the clock • change date and time display formats • set the date and time • enable or disable automatic clock transitions according to the daylight saving changes •...
Page 82 ACS550-02/U2 User’s Manual Step Action Display SET DATE • To set the date, select SET DATE on the menu and press . Specify the first part of the date (day or month depending on the selected date format) with 19.03.05...
Page 83 ACS550-02/U2 User’s Manual Parameter Backup mode The Parameter Backup mode is used to export parameters from one drive to another or to make a backup of the drive parameters. Uploading to the panel stores all drive parameters, including up to two user sets, to the Assistant Control Panel. The full set, partial parameter set (application) and user sets can then be downloaded from the control panel to another drive or the same drive.
Page 84 ACS550-02/U2 User’s Manual How to upload and download parameters For the upload and download functions available, see above. Step Action Display MENU Go to the Main menu by pressing if you are in the Output mode, otherwise MAIN MENU PARAMETERS...
Page 85 ACS550-02/U2 User’s Manual How to view information about the backup Step Action Display MENU Go to the Main menu by pressing if you are in the Output mode, otherwise MAIN MENU PARAMETERS EXIT by pressing repeatedly until you get to the Main menu.
Page 86 ACS550-02/U2 User’s Manual I/O Settings mode In the I/O Settings mode, you can: • check the parameter settings related to any I/O terminal • edit the parameter setting. For example, if “1103: REF1” is listed under Ain1 (Analog input 1), that is, parameter...
Page 87: Basic Control Panel
ACS550-02/U2 User’s Manual Basic Control Panel Features The Basic Control Panel features: • numeric control panel with an LCD display • copy function – parameters can be copied to the control panel memory for later transfer to other drives or for backup of a particular system.
Page 88 ACS550-02/U2 User’s Manual Operation You operate the control panel with menus and keys. You select an option, e.g. operation mode or parameter, by scrolling the arrow keys until the option is visible in the display and then pressing the key.
Page 89 ACS550-02/U2 User’s Manual How to start, stop and switch between local and remote control You can start, stop and switch between local and remote control in any mode. To be able to start or stop the drive, the drive must be in local control.
Page 90 ACS550-02/U2 User’s Manual Output mode In the Output mode, you can: • monitor actual values of up to three signals, one Group 01: OPERATING DATA signal at a time • start, stop, change the direction and switch between local and remote control.
Page 91 ACS550-02/U2 User’s Manual Reference mode In the Reference mode, you can: • set the speed, frequency or torque reference • start, stop, change the direction and switch between local and remote control. How to set the speed, frequency or torque reference...
Page 92 ACS550-02/U2 User’s Manual Parameter mode In the Parameter mode, you can: • view and change parameter values • select and modify the signals shown in the Output mode • start, stop, change the direction and switch between local and remote control.
Page 93 ACS550-02/U2 User’s Manual How to select the monitored signals Step Action Display You can select which signals are monitored in the Output mode and how they are displayed with parameters. See page Group 34: PANEL DISPLAY for detailed instructions on changing parameter values.
Page 94 ACS550-02/U2 User’s Manual Copy mode The Basic Control Panel can store a full set of drive parameters and up to two user sets of drive parameters to the control panel. The control panel memory is non- volatile. In the Copy mode, you can: •...
Page 95 ACS550-02/U2 User’s Manual How to upload and download parameters For the upload and download functions available, see above. Step Action Display Go to the Main menu by pressing if you are in the Output mode, otherwise by pressing repeatedly until you see MENU at the bottom.
Page 96: Application Macros
ACS550-02/U2 User’s Manual Application macros Macros change a group of parameters to new, predefined values. Use macros to minimize the need for manual editing of parameters. Selecting a macro sets all other parameters to their default values, except: • parameters (except parameter 9904) Group 99: START-UP DATA •...
Page 97: Abb Standard Macro
ACS550-02/U2 User’s Manual ABB Standard macro This is the default macro. It provides a general purpose, 2-wire I/O configuration, with three (3) constant speeds. Parameter values are the default values defined in section on page 115. Complete parameter list Connection example: Signal cable shield (screen) 1…10 kohm...
Page 98: Wire Macro
ACS550-02/U2 User’s Manual 3-wire macro This macro is used when the drive is controlled using momentary push-buttons. It provides three (3) constant speeds. To enable, set the value of parameter 9902 to 2 (3- WIRE Note: When the stop input ( 2) is deactivated (no input), the control panel start/stop buttons are disabled.
Page 99: Alternate Macro
ACS550-02/U2 User’s Manual Alternate macro This macro provides an I/O configuration adopted to a sequence of DI control signals used when alternating the rotation direction of the motor. To enable, set the value of parameter 9902 to 3 ( ALTERNATE...
Page 100: Motor Potentiometer Macro
ACS550-02/U2 User’s Manual Motor Potentiometer macro This macro provides a cost-effective interface for PLCs that vary the speed of the motor using only digital signals. To enable, set the value of parameter 9902 to MOTOR POT Connection example: Signal cable shield (screen)
Page 101: Hand-Auto Macro
ACS550-02/U2 User’s Manual Hand-Auto macro This macro provides an I/O configuration that is typically used in HVAC applications. To enable, set the value of parameter 9902 to 5 ( HAND AUTO Note: Parameter 2108 must remain in the default setting, 0 (...
Page 102: Pid Control Macro
ACS550-02/U2 User’s Manual PID Control macro This macro provides parameter settings for closed-loop control systems such as pressure control, flow control, etc. To enable, set the value of parameter 9902 to PID CONTROL Note: Parameter 2108 must remain in the default setting, 0 (...
Page 103: Pfc Macro
ACS550-02/U2 User’s Manual PFC macro This macro provides parameter settings for pump and fan control (PFC) applications. To enable, set the value of parameter 9902 to 7 ( PFC CONTROL Note: Parameter 2108 must remain in the default setting, 0 (...
Page 104: Torque Control Macro
ACS550-02/U2 User’s Manual Torque Control macro This macro provides parameter settings for applications that require torque control of the motor. Control can also be switched to speed control. To enable, set the value of parameter 9902 to 8 ( TORQUE CTRL...
Page 105: Connection Example Of A Two-Wire Sensor
ACS550-02/U2 User’s Manual Connection example of a two-wire sensor Many applications use process PI(D) and need a feedback signal from the process. The feedback signal is typically connected to analog input 2 (AI2). The macro wiring diagrams in this chapter show the connection when a separately powered sensor is used.
Page 106: User Parameter Sets
ACS550-02/U2 User’s Manual User parameter sets In addition to the standard application macros, it is possible to save two user parameter sets into the permanent memory and load them at a later time. A user parameter set consists of the user parameter settings, including Group 99: START- DATA, and the results of the motor identification.
Page 107: Macro Default Values For Parameters
Parameter default values are listed in section on page 115. Complete parameter list Changing from the default macro (ABB Standard), that is, editing the value of parameter 9902, changes the parameter default values as defined in the following tables. Note: There are two sets of values because the defaults are configured for 50 Hz/ IEC compliance (ACS550-02) and 60 Hz/NEMA compliance (ACS550-U2).
Page 108 ACS550-02/U2 User’s Manual ACS550-U2 Parameter 9902 APPLIC MACRO 9904 MOTOR CTRL MODE 1001 COMMANDS 1002 COMMANDS 1003 DIRECTION 1102 1103 SELECT 1106 SELECT 1201 CONST SPEED SEL 1304 MINIMUM AI 1401 RELAY OUTPUT 1402 RELAY OUTPUT 1403 RELAY OUTPUT 1501...
Page 109 ACS550-02/U2 User’s Manual Application macros Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 110: Complete Parameter List
Parameters can be modified only when the drive is stopped. • User = Space to enter desired parameter values. Some values depend on the “construction” as indicated in the table by “02:” or “U2:”. Refer to the type code on the drive, for example ACS550-02-245A-4. Code Name...
Page 111 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 0121 0.0…100.0% 0.1% 0122 000…111 (0…7 decimal) STATUS 0123 000…111 (0…7 decimal) STATUS 0124 0.0…20.0 mA 0.1 mA 0125 0.0…20.0 mA 0.1 mA 0126 -1000.0…1000.0% 0.1% OUTPUT 0127 -100.0…100.0% 0.1%...
Page 112 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 0306 FAULT WORD 0307 FAULT WORD 0308 ALARM WORD 0309 ALARM WORD Group 04: FAULT HISTORY 0401 Fault codes (panel displays as text) LAST FAULT 0402 Date dd.mm.yy / power-on time in days 1 day...
Page 113 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 1207 0…30000 rpm / 0.0…500.0 Hz 1 rpm / 0.1 Hz 02: 2400 rpm / 40.0 Hz CONST SPEED U2: 2880 rpm / 48.0 Hz 1208 0…30000 rpm / 0.0…500.0 Hz 1 rpm / 0.1 Hz 02: 3000 rpm / 50.0 Hz...
Page 114 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S Group 16: SYSTEM CONTROLS 1601 -6…7 RUN ENABLE NOT SEL 1602 , 1 = , 2 = PARAMETER LOCK LOCKED OPEN NOT SAVED OPEN 1603 0…65535 PASS CODE 1604 -6…8...
Page 115 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S Group 22: ACCEL/DECEL 2201 -6…7 2202 0.0…1800.0 s 0.1 s 5.0 s ACCELER TIME 2203 0.0…1800.0 s 0.1 s 5.0 s DECELER TIME 2204 0.0 = , 0.1…1000.0 s 0.1 s 0.0 s...
Page 116 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 2907 0.0…6553.5 MWh, 0.0 disables 0.1 MWh 0.0 MWh USER TRIG 2908 0.0…6553.5 MWh 0.1 MWh 0.0 MWh USER Group 30: FAULT FUNCTIONS 3001 < 0…3 MIN FUNCTION NOT SEL 3002 1…3...
Page 117 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S Group 33: INFORMATION 3301 0000…FFFF hex Firmware version FIRMWARE 3302 0000…FFFF hex LOADING PACKAGE 3303 yy.ww TEST DATE 3304 DRIVE RATING 3305 0000…FFFF hex Par. table version PARAMETER TABLE Group 34: PANEL DISPLAY...
Page 118 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 3607 00:00:00…23:59:58 00:00:00 STOP TIME 3608 1…7 START DAY MONDAY 3609 1…7 STOP DAY MONDAY 3610 00:00:00…23:59:58 00:00:00 START TIME 3611 00:00:00…23:59:58 00:00:00 STOP TIME 3612 1…7 START DAY MONDAY 3613 1…7...
Page 119 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 4009 100% Unit and scale defined by par. 4006 and 100.0% VALUE 4007 4010 0…2, 8…17, 19…20 SET POINT SEL 4011 Unit and scale defined by par. 4006 and 40.0%...
Page 120 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 4122 -6…7 SLEEP SELECTION NOT SEL 4123 0…30000 rpm / 0.0…500.0 Hz 1 rpm / 0.1 Hz 0 rpm / 0.0 Hz PID SLEEP LEVEL 4124 0.0…3600.0 s 0.1 s 60.0 s...
Page 121 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 5127 , 1 = FBA PAR REFRESH DONE REFRESH DONE 5128 0…0xFFFF (hex) FILE CPI FW REV 5129 0…0xFFFF (hex) FILE CONFIG ID 5130 0…0xFFFF (hex) FILE CONFIG REV 5131 0…6...
Page 122 ACS550-02/U2 User’s Manual Code Name Range Resolution Default User S 8109 0.0…500.0 Hz 0.1 Hz 02: 50.0 Hz / START FREQ U2: 0.0 Hz 8110 0.0…500.0 Hz 0.1 Hz 02: 50.0 Hz / START FREQ U2: 0.0 Hz 8111 0.0…500.0 Hz 0.1 Hz...
Page 123: Complete Parameter Descriptions
ACS550-02/U2 User’s Manual Complete parameter descriptions This section describes the actual signals and parameters for ACS550. Group 99: START-UP DATA This group defines special start-up data required to: • set up the drive • enter motor information. Code Description 9901 LANGUAGE Selects the display language.
Page 124 ACS550-02/U2 User’s Manual Code Description 9905 MOTOR NOM VOLT Defines the nominal motor voltage. Output voltage • Must equal the value on the motor rating plate. • The ACS550 cannot supply the motor with a voltage greater than the input power (mains) voltage.
Page 125 ACS550-02/U2 User’s Manual Group 01: OPERATING DATA This group contains drive operating data, including actual signals. The drive sets the values for actual signals, based on measurements or calculations. You cannot set these values. Code Description 0101 SPEED & DIR The calculated signed speed of the motor (rpm).
Page 126 ACS550-02/U2 User’s Manual Code Description 0118 DI 1-3 STATUS Status of the three digital inputs. • Status is displayed as a binary number. • 1 indicates that the input is activated. • 0 indicates that the input is deactivated. 0119 DI 4-6 STATUS Status of the three digital inputs.
Page 127 ACS550-02/U2 User’s Manual Code Description 0136 COMM VALUE 2 Free data location that can be written from serial link. 0137 PROCESS VAR 1 Process variable 1 • Defined by parameters in Group 34: PANEL DISPLAY. 0138 PROCESS VAR 2 Process variable 2 •...
Page 128 ACS550-02/U2 User’s Manual Code Description 0151 INPUT KWH (R) Calculated actual intake energy in kWh. 0152 INPUT MWH Calculated actual intake energy in MWh. 0158 PID COMM VALUE 1 Data received from fieldbus for PID control (PID1 and PID2). 0159 PID COMM VALUE 2 Data received from fieldbus for PID control (PID1 and PID2).
Page 129 ACS550-02/U2 User’s Manual Group 03: FB ACTUAL SIGNALS This group monitors fieldbus communications. Code Description 0301 FB CMD WORD 1 Read-only copy of the Fieldbus Bit # 0301, 0302, FB CMD WORD FB CMD WORD Command Word 1. STOP FBLOCAL_CTL •...
Page 130 ACS550-02/U2 User’s Manual Code Description 0305 FAULT WORD 1 Read-only copy of the Fault Word 1. Bit # 0305, 1 0306, 2 0307, FAULT WORD FAULT WORD FAULT WORD • When a fault is active, the OVERCURRENT Obsolete EFB 1...
Page 131 ACS550-02/U2 User’s Manual Group 04: FAULT HISTORY This group stores a recent history of the faults reported by the drive. Code Description 0401 LAST FAULT 0 – Clear the fault history (on panel = NO RECORD). n – Fault code of the last recorded fault. The fault code is displayed as a name. See section...
Page 132 ACS550-02/U2 User’s Manual Group 10: START/STOP/DIR This group: • defines external sources ( 1 and 2) for commands that enable start, stop and direction changes • locks direction or enables direction control. To select between the two external locations use the next group (parameter 1102).
Page 133 ACS550-02/U2 User’s Manual Code Description 11 = 1. – Assigns Start/Stop control to Timed Function 1 (Timed Function activated = ; Timed TIMED FUNC START Function de-activated = ). See STOP Group 36: TIMED FUNCTIONS. 12…14 = 2…4 – Assigns Start/Stop control to Timed Function 2…4. See 1 above.
Page 134 ACS550-02/U2 User’s Manual Group 11: REFERENCE SELECT This group defines: • how the drive selects between command sources • characteristics and sources for 1 and Code Description 1101 KEYPAD REF SEL Selects the reference controlled in local control mode. 1(Hz/rpm) – Reference type depends on parameter 9904 MOTOR CTRL MODE •...
Page 135 ACS550-02/U2 User’s Manual Code Description ) – Defines digital inputs as the speed reference source (motor potentiometer control). • Digital input 3 increases the speed (the stands for “up”). • Digital input 4 decreases the speed (the stands for “down”).
Page 136 ACS550-02/U2 User’s Manual Code Description 1104 REF1 MIN Ext ref Sets the minimum for external reference 1. • The minimum analog input signal (as a percent of the full P 1105 signal in volts or amperes) corresponds to Hz/rpm. • Parameter 1301...
Page 137 ACS550-02/U2 User’s Manual Group 12: CONSTANT SPEEDS This group defines a set of constant speeds. In general: • You can program up to 7 constant speeds, ranging from 0 500 Hz or … 30000 rpm. … • Values must be positive (No negative speed values for constant speeds).
Page 138 ACS550-02/U2 User’s Manual Code Description 13 = 3,4,5 – Selects one of seven Constant Speeds (1…7) using 4 and • See above ( 1,2,3) for code. 14 = 4,5,6 – Selects one of seven Constant Speeds (1…7) using 5 and •...
Page 139 ACS550-02/U2 User’s Manual Code Description 1209 TIMED MODE SEL Defines timed function activated, constant speed mode. Timed function can be used to change between external reference and a maximum of three constant speeds, or to change between a maximum of 4 selectable speeds, i.e.
Page 140 ACS550-02/U2 User’s Manual Group 13: ANALOG INPUTS This group defines the limits and the filtering for analog inputs. Code Description 1301 MINIMUM AI1 Defines the minimum value of the analog input. • Define value as a percent of the full analog signal range. See example below.
Page 141 ACS550-02/U2 User’s Manual Group 14: RELAY OUTPUTS This group defines the condition that activates each of the relay outputs. Code Description 1401 RELAY OUTPUT 1 Defines the event or condition that activates relay 1 – what relay output 1 means.
Page 142 ACS550-02/U2 User’s Manual Code Description 35 = – Energize relay based on input from fieldbus communication. COMM • Fieldbus writes binary code in parameter 0134 that can energize relay 1…relay 6 according to the following: Par. 0134 Binary RO6 RO5 RO4 RO3 RO2 RO1...
Page 143 ACS550-02/U2 User’s Manual Code Description 1409 RO 3 OFF DELAY Switch-off delay for relay 3. • See OFF DELAY 1410 RELAY OUTPUT 4…6 … Defines the event or condition that activates relay 4…6 – what relay output 4…6 means. 1412 •...
Page 144 ACS550-02/U2 User’s Manual Group 15: ANALOG OUTPUTS This group defines the drive’s analog (current signal) outputs. The drive’s analog outputs can be: • any parameter in Group 01: OPERATING DATA • limited to programmable minimum and maximum values of output current •...
Page 145 ACS550-02/U2 User’s Manual Code Description 1511 MAXIMUM AO2 Sets the maximum output current. See 1 above. MAXIMUM AO 1512 FILTER AO2 Defines the filter time constant for 2. See 1 above. FILTER AO Parameters Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 146 ACS550-02/U2 User’s Manual Group 16: SYSTEM CONTROLS This group defines a variety of system level locks, resets and enables. Code Description 1601 RUN ENABLE Selects the source of the run enable signal. – Allows the drive to start without an external run enable signal.
Page 147 ACS550-02/U2 User’s Manual Code Description 1605 USER PAR SET CHG Defines control for changing the user parameter set. • See parameter 9902 APPLIC MACRO • The drive must be stopped to change User Parameter Sets. • During a change, the drive will not start.
Page 148 ACS550-02/U2 User’s Manual Code Description 1608 START ENABLE 1 Selects the source of the start enable 1 signal. Note: Start enable functionality differs from the run enable functionality. – Allows the drive to start without an external start enable signal.
Page 149 ACS550-02/U2 User’s Manual Code Description 1609 START ENABLE 2 Selects the source of the start enable 2 signal. Note: Start enable functionality differs from the run enable functionality. – Allows the drive to start without an external start enable signal.
Page 150 ACS550-02/U2 User’s Manual Group 20: LIMITS This group defines minimum and maximum limits to follow in driving the motor – speed, frequency, current, torque, etc. Code Description 2001 MINIMUM SPEED Speed 2001 value is < 0 Defines the minimum speed (rpm) allowed.
Page 151 ACS550-02/U2 User’s Manual Code Description 2007 MINIMUM FREQ Freq 2007 value is < 0 Defines the minimum limit for the drive output frequency. P 2008 • A positive or zero minimum frequency value defines two ranges, one positive and one negative.
Page 152 ACS550-02/U2 User’s Manual Code Description 2017 MAX TORQUE 1 Sets the first maximum limit for torque (%). Value is a percent of the motor nominal torque. 2018 MAX TORQUE 2 Sets the second maximum limit for torque (%). Value is a percent of the motor nominal torque.
Page 153 ACS550-02/U2 User’s Manual Group 21: START/STOP This group defines how the motor starts and stops. The ACS550 supports several start and stop modes. Code Description 2101 START FUNCTION Selects the motor start method. The valid options depend on the value of parameter 9904 MOTOR CTRL MODE –...
Page 154 ACS550-02/U2 User’s Manual Code Description 2105 DC HOLD SPEED Sets the speed for DC Hold. Requires that parameter 2104 = 1 ( DC HOLD CTL DC HOLD 2106 DC CURR REF Defines the DC current control reference as a percentage of parameter 9906...
Page 155 ACS550-02/U2 User’s Manual Code Description 2112 ZERO SPEED DELAY Defines the delay for the Zero Speed Delay function. If parameter value is set to zero, the Zero Speed Delay function is disabled. The function is useful in applications where a smooth and quick restarting is essential. During the delay the drive knows accurately the rotor position.
Page 156 ACS550-02/U2 User’s Manual Group 22: ACCEL/DECEL This group defines ramps that control the rate of acceleration and deceleration. You define these ramps as a pair, one for acceleration and one for deceleration. You can define two pairs of ramps and use a digital input to select one or the other pair.
Page 157 ACS550-02/U2 User’s Manual Code Description 2208 EMERG DEC TIME Sets the deceleration time for maximum frequency to zero for an emergency. • See parameter 2109 EMERG STOP SEL • Ramp is linear. 2209 RAMP INPUT 0 Defines control for forcing the ramp input to 0.
Page 158 ACS550-02/U2 User’s Manual Group 23: SPEED CONTROL This group defines variables used for speed control operation. Code Description 2301 PROP GAIN Gain = K Sets the relative gain for the speed controller. = Integration time = 0 • Larger values may cause speed oscillation.
Page 159 ACS550-02/U2 User’s Manual Code Description 2304 ACC COMPENSATION Sets the derivation time for acceleration compensation. • Adding a derivative of the reference to the output of the speed controller compensates for inertia during acceleration. • 2303 describes the principle of derivative action.
Page 160 ACS550-02/U2 User’s Manual Group 24: TORQUE CONTROL This group defines variables used for torque control operation. Code Description 2401 TORQ RAMP UP Defines the torque reference ramp up time – The minimum time for the reference to increase from zero to the nominal motor torque.
Page 161 ACS550-02/U2 User’s Manual Group 25: CRITICAL SPEEDS This group defines up to three critical speeds or ranges of speeds that are to be avoided due, for example, to mechanical resonance problems at certain speeds. Code Description 2501 CRIT SPEED SEL output Sets the critical speeds function on or off.
Page 162 ACS550-02/U2 User’s Manual Group 26: MOTOR CONTROL This group defines variables used for motor control. Code Description 2601 FLUX OPT ENABLE Changes the magnitude of the flux depending on the actual load. Flux Optimization can reduce the total energy consumption and noise, and it should be enabled for drives that usually operate below nominal load.
Page 163 ACS550-02/U2 User’s Manual Code Description 2607 SWITCH FREQ CTRL The switching frequency may be reduced if the ACS550 Limit R7/R8 drives internal temperature rises above a limit. See the figure. This function allows the highest possible switching frequency to be used based on operating conditions.
Page 164 ACS550-02/U2 User’s Manual Group 29: MAINTENANCE TRIG This group contains usage levels and trigger points. When usage reaches the set trigger point, a notice displayed on the control panel signals that maintenance is due. Code Description 2901 COOLING FAN TRIG Sets the trigger point for the drive’s cooling fan counter.
Page 165 ACS550-02/U2 User’s Manual Group 30: FAULT FUNCTIONS This group defines situations that the drive should recognize as potential faults and defines how the drive should respond if the fault is detected. Code Description 3001 AI<MIN FUNCTION Defines the drive response if the analog input ( ) signal drops below the fault limits and is used in reference chain.
Page 166 ACS550-02/U2 User’s Manual Code Description 3007 MOT LOAD CURVE Output current (%) relative Sets the maximum allowable operating load of the motor. to 9906 MOTOR NOM CURR • When set to 100%, the maximum allowable load is equal to the value...
Page 167 ACS550-02/U2 User’s Manual Code Description 3018 COMM FAULT FUNC Defines the drive response if the fieldbus communication is lost. – No response. NOT SEL – Displays a fault (28, ) and the drive coasts to stop. FAULT SERIAL 7 – Displays an alarm (2005, ) and sets speed using 1208 7.
Page 168 ACS550-02/U2 User’s Manual Group 31: AUTOMATIC RESET This group defines conditions for automatic resets. An automatic reset occurs after a particular fault is detected. The drive holds for a set delay time, then automatically restarts. You can limit the number of resets in a specified time period and set up automatic resets for a variety of faults.
Page 169 ACS550-02/U2 User’s Manual Group 32: SUPERVISION This group defines supervision for up to three signals from Group 01: OPERATING DATA. Supervision monitors a specified parameter and energizes a relay output if the parameter passes a defined limit. Use to define the Group 14: RELAY OUTPUTS relay and whether the relay activates when the signal is too low or too high.
Page 170 ACS550-02/U2 User’s Manual Code Description 3207 SUPERV 3 PARAM Selects the third supervised parameter. See 3201 above. SUPERV PARAM 3208 SUPERV 3 LIM LO Sets the low limit for the third supervised parameter. See 3207 above. SUPERV PARAM 3209 SUPERV 3 LIM HI Sets the high limit for the third supervised parameter.
Page 171 ACS550-02/U2 User’s Manual Group 33: INFORMATION This group provides access to information about the drive’s current programs: versions and test date. Code Description 3301 FIRMWARE Contains the version of the drive’s firmware. 3302 LOADING PACKAGE Contains the version of the loading package.
Page 172 ACS550-02/U2 User’s Manual Group 34: PANEL DISPLAY This group defines the content for control panel display (middle area), when the control panel is in the Output mode. Code Description 3401 SIGNAL1 PARAM P 3404 P 3405 Selects the first parameter (by number) displayed on the control panel.
Page 173 ACS550-02/U2 User’s Manual Code Description 3405 OUTPUT1 UNIT Selects the units used with the first display parameter. Note: Parameter is not effective if parameter 3404 = 9 ( OUTPUT DSP FORM DIRECT 9 = °C 18 = MWh 27 = ft...
Page 174 ACS550-02/U2 User’s Manual Code Description 3421 OUTPUT3 MAX Sets the maximum value displayed for the third display parameter. See parameter 3407. Parameters Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 175 ACS550-02/U2 User’s Manual Group 35: MOTOR TEMP MEAS This group defines the detection and reporting for a particular potential fault – motor overheating, as detected by a temperature sensor. Typical connections are shown below. One sensor Three sensors Motor Motor...
Page 176 ACS550-02/U2 User’s Manual For other faults, or for anticipating motor overheating using a model, see Group 30: FAULT FUNCTIONS. Code Description 3501 SENSOR TYPE Identifies the type of the motor temperature sensor used, PT100 (°C), PTC (ohm) or thermistor. See parameters 1501...
Page 177 ACS550-02/U2 User’s Manual Code Description 3504 FAULT LIMIT Defines the fault limit for motor temperature measurement. • At motor temperatures above this limit, the drive displays a fault (9, ) and stops the drive. MOT OVERTEMP For thermistors or PTC connected to digital input: 0 –...
Page 178 ACS550-02/U2 User’s Manual Group 36: TIMED FUNCTIONS This group defines the timed functions. The timed functions include: • four daily start and stop times • four weekly start, stop and boost times • four timers for collecting selected periods together.
Page 179 ACS550-02/U2 User’s Manual Code Description 3601 TIMERS ENABLE Selects the source for the timer enable signal. – Timed functions are disabled. NOT SEL 1 – Defines digital input 1 as the timed function enable signal. • The digital input must be activated to enable the timed function.
Page 180 ACS550-02/U2 User’s Manual Code Description 3612 START DAY 3 Defines timer 3 weekly start day. • See parameter 3604. 3613 STOP DAY 3 Defines timer 3 weekly stop day. • See parameter 3605. 3614 START TIME 4 Defines timer 4 daily start time.
Page 181 ACS550-02/U2 User’s Manual Code Description 21 = – Booster and Time Periods 1 and 3 selected in the timer. 22 = – Booster and Time Periods 2 and 3 selected in the timer. 23 = – Booster and Time Periods 1, 2 and 3 selected in the timer.
Page 182 ACS550-02/U2 User’s Manual Group 37: USER LOAD CURVE This group defines supervision of user adjustable load curves (motor torque as a function of frequency). The curve is defined by five points. Code Description 3701 USER LOAD C MODE Motor torque (%) Supervision mode for the user adjustable load curves.
Page 183 ACS550-02/U2 User’s Manual Code Description 3713 LOAD FREQ 4 Defines the frequency value of the fourth load curve definition point. • Must be smaller than 3716 LOAD FREQ 3714 LOAD TORQ LOW 4 Defines the torque value of the fourth underload curve definition point.
Page 184 ACS550-02/U2 User’s Manual Obs. New parameters par. 3015 3704 3705 3707 3708 3710 3711 3713 3714 3716 3717 UNDER LOAD LOAD LOAD LOAD LOAD LOAD LOAD LOAD LOAD LOAD LOAD FREQ TORQ FREQ TORQ FREQ TORQ FREQ TORQ FREQ TORQ...
Page 185 ACS550-02/U2 User’s Manual Group 40: PROCESS PID SET 1 This group defines a set of parameters used with the Process PID (PID1) controller. Typically only parameters in this group are needed. – PID controller Basic set-up In PID control mode, the drive compares a reference signal (setpoint) to an actual signal (feedback) and automatically adjusts the speed of the drive to match the two signals.
Page 186 ACS550-02/U2 User’s Manual – PID controller Advanced The ACS550 has two separate PID controllers: • Process PID (PID1) and • External PID (PID2) Process PID (PID1) has 2 separate sets of parameters: • Process PID (PID1) SET1, defined in Group 40: PROCESS PID SET 1 •...
Page 187 ACS550-02/U2 User’s Manual Code Description 4002 INTEGRATION TIME Defines the PID controller’s integration time. Integration time is, by definition, the time required to increase the output by the error value: D (P 4001 = 10) • Error value is constant and 100%.
Page 188 ACS550-02/U2 User’s Manual Code Description 4008 0% VALUE Units (P4006) Defines (together with the next parameter) the scaling applied to Scale (P4007) +1000.0% the PID controller’s actual values (PID1 parameters 0128, 0130 and 0132). • Units and scale are defined by parameters 4006 and 4007.
Page 189 ACS550-02/U2 User’s Manual Code Description Analog input reference correction Parameter values 9, 10 and 14…17 use the formula in the following table. Value setting Calculation of the AI reference C + B C value + (B value - 50% of reference value) C * B C value ·...
Page 190 ACS550-02/U2 User’s Manual Code Description 4016 ACT1 INPUT Defines the source for actual value 1 ( 1). See also parameter 4018 MINIMUM 1 – Uses analog input 1 for 2 – Uses analog input 2 for – Uses current for CURRENT –...
Page 191 ACS550-02/U2 User’s Manual Code Description 4023 PID SLEEP LEVEL t < P 4024 Sets the motor speed / frequency that enables the PID sleep function – a motor speed / frequency below this level, for at least t > P 4024...
Page 192 ACS550-02/U2 User’s Manual Code Description 4027 PID 1 PARAM SET Process PID (PID1) has two separate sets of parameters, PID set 1 and PID set 2. • PID set 1 uses parameters 4001…4026. • PID set 2 uses parameters 4101…4126.
Page 193 ACS550-02/U2 User’s Manual Group 41: PROCESS PID SET 2 Parameters of this group belong to PID parameter set 2. The operation of parameters 4101…4126 is analogous with set 1 parameters 4001…4026. PID parameter set 2 can be selected by parameter 4027...
Page 194 ACS550-02/U2 User’s Manual Group 42: EXT / TRIM PID This group defines the parameters used for the second PID controller (PID2), which is used for the External / Trimming PID. The operation of parameters 4201 4221 is analogous with Process PID set 1 …...
Page 195 ACS550-02/U2 User’s Manual Code Description 4232 CORRECTION SRC Defines the trimming reference for the correction source. – Uses appropriate REF MAX WITCH • 1105 when 1 is active (A). • 1108 when 2 is active (B). – Uses the absolute maximum speed or frequency (Switch C): OUTPUT •...
Page 196 ACS550-02/U2 User’s Manual Group 50: ENCODER This group defines the setup for encoder use: • Sets the number of encoder pulses per shaft revolution. • Enables the encoder operation. • Defines how mechanical angle and revolution data is reset. See also User’s Manual for Pulse Encoder Interface Module OTAC-01 [3AUA0000001938 (English)].
Page 197 ACS550-02/U2 User’s Manual Group 51: EXT COMM MODULE This group defines set-up variables for a fieldbus adapter (FBA) communication module. For more information on these parameters, refer to the user’s manual supplied with the FBA module. Code Description 5101 FBA TYPE Displays the type of the connected fieldbus adapter module.
Page 198 ACS550-02/U2 User’s Manual Group 52: PANEL COMM This group defines the communication settings for the control panel port on the drive. Normally, when using the supplied control panel, there is no need to change settings in this group. In this group, parameter modifications take effect on the next power-up.
Page 199: Embedded Fieldbus
5305 EFB CTRL PROFILE Selects the communication profile used by the EFB protocol. – Operation of Control/Status Words conforms to ABB Drives Profile, as used in ACS400. ABB DRV LIM – Operation of Control/Status Words conforms to 32-bit DCU Profile.
Page 200 ACS550-02/U2 User’s Manual Code Description 5311 EFB PAR 11 Specifies the parameter mapped to Modbus Register 40006. 5312 EFB PAR 12 Specifies the parameter mapped to Modbus Register 40007. 5313 EFB PAR 13 Specifies the parameter mapped to Modbus Register 40008.
Page 201 ACS550-02/U2 User’s Manual Group 81: PFC CONTROL This group defines a Pump-Fan Control (PFC) mode of operation. The major features of PFC control are: • The ACS550 controls the motor of pump no. 1, varying the motor speed to control the pump capacity.
Page 202 ACS550-02/U2 User’s Manual Code Description 8104 REFERENCE STEP 2 Sets a percentage value that is added to the process reference. • Applies only when at least two auxiliary (constant speed) motors are running. • See parameter 8103 REFERENCE STEP 8105 REFERENCE STEP 3 Sets a percentage value that is added to the process reference.
Page 203 ACS550-02/U2 User’s Manual Code Description 8112 LOW FREQ 1 Sets the frequency limit used to stop the first auxiliary motor. The first auxiliary motor stops if: • Only one (the first) auxiliary motor is running. f (Hz) • ACS550 output frequency drops below the limit: 8112 - 1.
Page 204 ACS550-02/U2 User’s Manual Code Description 8117 NR OF AUX MOT Sets the number of auxiliary motors. • Each auxiliary motor requires a relay output, which the drive uses to send start/stop signals. • The Autochange function, if used, requires an additional relay output for the speed regulated motor.
Page 205 ACS550-02/U2 User’s Manual Code Description • The table below shows the ACS550 PFC motor assignments for some typical settings in the Relay Output parameters (1401…1403 and 1410…1412), where the settings are either =31 ( ), or =X (anything but 31), and where the Autochange function is disabled (8118 = 0).
Page 206 ACS550-02/U2 User’s Manual Code Description 8119 AUTOCHNG LEVEL Sets an upper limit, as a percent of output capacity, for the autochange logic. When the output from the PID/PFC control block exceeds this limit, autochange is prevented. For example, use this parameter to deny autochange when the Pump-Fan system is operating near maximum capacity.
Page 207 ACS550-02/U2 User’s Manual Code Description 8120 INTERLOCKS Defines operation of the Interlock function. When the Interlock function is enabled: • An interlock is active when its command signal is absent. • An interlock is inactive when its command signal is present.
Page 208 ACS550-02/U2 User’s Manual Code Description 2 – Enables the Interlock function and assigns a digital input (starting with 2) to the interlock signal for each PFC relay. These assignments are defined in the following table and depend on: • the number of PFC relays [number of parameters 1401…1403 and 1410…1412 with value = 31 ( •...
Page 209 ACS550-02/U2 User’s Manual Code Description 3 – Enables the Interlocks function and assigns a digital input (starting with 3) to the interlock signal for each PFC relay. These assignments are defined in the following table and depend on: • the number of PFC relays [number of parameters 1401…1403 and 1410…1412 with value = 31 ( •...
Page 210 ACS550-02/U2 User’s Manual Code Description 5 – Enables the Interlock function and assigns a digital input (starting with 5) to the interlock signal for each PFC relay. These assignments are defined in the following table and depend on: • the number of PFC relays [number of parameters 1401…1403 and 1410…1412 with value = 31 ( •...
Page 211 ACS550-02/U2 User’s Manual Code Description 8121 REG BYPASS CTRL Selects Regulator by-pass control. When enabled, Regulator by-pass control provides a simple control mechanism without a PID regulator. • Use Regulator by-pass control only in special applications. – Disables Regulator by-pass control. The drive...
Page 212 ACS550-02/U2 User’s Manual Code Description 8124 ACC IN AUX STOP Sets the PFC acceleration time for a zero-to-maximum frequency ramp. This PFC acceleration ramp: • Applies to the speed regulated motor, when an auxiliary motor is switched off. • Replaces the acceleration ramp defined in Group 22: ACCEL/DECELl.
Page 213 ACS550-02/U2 User’s Manual Group 98: OPTIONS This group configures for options, in particular, enabling serial communication with the drive. Code Description 9802 COMM PROT SEL Selects the communication protocol. – No communication protocol selected. NOT SEL – The drive communicates with Modbus via the RS485 channel (X1-communications, terminal).
Page 214: Overview
Modbus® protocol. (For protocol and profile descriptions, see sections Modbus later in this protocol technical data ABB control profiles technical data chapter.) • fieldbus adapter (FBA) – See chapter on page 251. Fieldbus adapter...
Page 215: Planning
The content of these words is defined by profiles. For details on the profiles used, sees section on page 239. ABB control profiles technical data Note: The words “output” and “input” are used as seen from the fieldbus controller point of view. For example an output describes data flow from the fieldbus controller to the drive and appears as an input from the drive point of view.
Page 216: Communication Set-Up – Efb
ACS550-02/U2 User’s Manual • To reduce noise on the network, terminate the RS485 network using 120 Ω resistors at both ends of the network. Use the DIP switch to connect or disconnect the termination resistors. See following diagram and table.
Page 217 0 Selects the communication profile used by the EFB protocol. – Operation of Control/Status ABB DRV LIM Words conforms to ABB Drives Profile, as used in ACS400. – Operation of Control/Status DCU PROFILE Words conforms to 32-bit DCU Profile.
Page 218: Activate Drive Control Functions – Efb
REQUEST For Modbus, the protocol reference can depend on the profile used, hence two columns in these tables. One column refers to the ABB Drives profile, selected when parameter 5305 = 0 ( ABB DRV ) or 5305 = 2 ( ).
Page 219 • in section on page 239. Reference scaling ABB control profiles technical data Miscellaneous drive control Using the fieldbus for miscellaneous drive control requires: • drive parameter values set as defined below • fieldbus controller supplied command(s) in the appropriate location. (The location is defined by the Protocol Reference, which is protocol dependent.)
Page 220 ACS550-02/U2 User’s Manual Relay output control Using the fieldbus for relay output control requires: • drive parameter values set as defined below • fieldbus controller supplied, binary coded, relay command(s) in the appropriate location. (The location is defined by the Protocol Reference, which is protocol dependent.)
Page 221 ACS550-02/U2 User’s Manual PID control setpoint source Using the following settings to select the fieldbus as the setpoint source for PID loops: Modbus protocol reference Drive parameter Value Description ABB DRV DCU PROFILE 4010 Setpoint is input reference 2 40003...
Page 222: Feedback From The Drive – Efb
ACS550-02/U2 User’s Manual Feedback from the drive – EFB Pre-defined feedback Inputs to the controller (drive outputs) have pre-defined meanings established by the protocol. This feedback does not require drive configuration. The following table lists a sample of feedback data. For a complete listing, see input word/point/object listings in the technical data for the appropriate protocol starting on page 231.
Page 223: Diagnostics – Efb
ACS550-02/U2 User’s Manual For example: Value of the Feedback Parameter (Feedback integer) · (Parameter resolution) · parameter that integer resolution (Value of 100% ref.) / 100% = Scaled value defines 100% 0.1% 1500 rpm 10 · 0.1% · 1500 RPM / 100% = 15 rpm 0.1%...
Page 224 ACS550-02/U2 User’s Manual Diagnostic situations The sub-sections below describe various diagnostic situations – the problem symptoms and corrective actions. Normal operation During normal network operation, 5306…5309 parameter values act as follows at each drive: • 5306 advances (advances for each message properly received EFB OK MESSAGES and addressed to this drive).
Page 225 ACS550-02/U2 User’s Manual Fault 28 – Serial 1 Err If the drive’s control panel shows fault code 28, , check for either of the SERIAL following: • The master system is down. To correct, resolve problem with master system. • The communication connection is bad. To correct, check communication connection at the drive.
Page 226: Modbus Protocol Technical Data
ACS550-02/U2 User’s Manual Modbus protocol technical data Overview The Modbus® protocol was introduced by Modicon, Inc. for use in control environments featuring Modicon programmable controllers. Due to its ease of use and implementation, this common PLC language was quickly adopted as a de-facto standard for integration of a wide variety of master controllers and slave devices.
Page 227 ABB DRV LIM ABB DRV LIM implementation of the ABB Drives profile standardizes the control interface with ACS400 drives. The ABB Drives profile is based on the PROFIBUS interface. It is discussed in detail in the following sections. • – The...
Page 228 ACS550-02/U2 User’s Manual • relay output states, numbered sequentially beginning with coil 00033. The following table summarizes the 0xxxx reference set: ABB DRV LIM DCU PROFILE ABB DRV FULL Modbus Internal location ref. (all profiles) (5305 = 0) (5305 = 1) (5305 = 2) –...
Page 229 ACS550-02/U2 User’s Manual The ACS550 supports the following Modbus function codes for coils: Function code Description Read coil status Force single coil 15 (0x0F Hex) Force multiple coils 1xxxx Mapping – Modbus discrete inputs. The drive maps the following information to the 1xxxx Modbus set called Modbus Discrete Inputs: •...
Page 230 ACS550-02/U2 User’s Manual Modbus Internal location ABB DRV DCU PROFILE ref. (all profiles) (5305 = 0 (5305 = 1) – Bit 27 Reserved REQ_REF1 STATUS WORD 10028 – Bit 28 Reserved REQ_REF2 STATUS WORD 10029 – Bit 29 Reserved REQ_REF2EXT...
Page 231 Maps directly to the profile‘ . Supported only CONTROL WORD S CONTROL WORD 40001 if 5305 = 0 or 2 (ABB Drives profile). Parameter 5319 holds a copy in hex format. 40002 Reference 1 Range = 0…+20000 (scaled to 0…1105 ), or -20000…0 (scaled to 1105...
Page 232 ACS550-02/U2 User’s Manual For the Modbus protocol, drive parameters in report the Group 53: EFB PROTOCOL parameter mapping to 4xxxx Registers. Code Description 5310 EFB PAR 10 Specifies the parameter mapped to Modbus register 40005. 5311 EFB PAR 11 Specifies the parameter mapped to Modbus register 40006.
Page 233 ACS550-02/U2 User’s Manual Actual values The contents of the register addresses 40005…40012 are and are: ACTUAL VALUES • specified using parameters 5310…5317 • Read-only values containing information on the operation of the drive • 16-bit words containing a sign bit and a 15-bit integer •...
Page 234: Abb Control Profiles Technical Data
ABB control profiles technical data Overview ABB Drives profile The ABB Drives profile provides a standard profile that can be used on multiple protocols, including Modbus and the protocols available on the FBA module. Two implementations of the ABB Drives profile are available: •...
Page 235 ACS550-02/U2 User’s Manual ABB Drives profile The following table and the state diagram later in this sub-section describe the content for the ABB Drives profile. CONTROL WORD ABB Drives profile (See parameter 5319) CONTROL WORD Commanded Name Value Comments state...
Page 236 ACS550-02/U2 User’s Manual ABB Drives profile (See parameter 5319) CONTROL WORD Commanded Name Value Comments state RESET 0=>1 Fault reset if an active fault exists (Enter RESET ). Effective if 1604 = SWITCH ON INHIBITED COMM Continue normal operation OPERATING 8…9 Unused...
Page 237 ACS550-02/U2 User’s Manual DCU profile (See parameter 0301) CONTROL WORD Name Value Command/Req. Comments STPMODE_EM Emergency ramp stop mode (no op) STPMODE_C Coast stop mode (no op) RAMP_2 Ramp pair 2 Ramp pair 1 RAMP_OUT_0 Ramp output to 0 (no op)
Page 238 ACS550-02/U2 User’s Manual ABB Drives profile The following table and the state diagram later in this sub-section describe the content for the ABB Drives profile. STATUS WORD ABB Drives profile (EFB) (See parameter 5320) STATUS WORD Description Name Value (Correspond to states/boxes in the state diagram)
Page 239 ACS550-02/U2 User’s Manual DCU profile The following tables describe the content for the DCU profile. STATUS WORD DCU profile (See parameter 0303) STATUS WORD Name Value Status READY Drive is ready to receive start command. Drive is not ready. ENABLED External run enable signal received.
Page 240 ACS550-02/U2 User’s Manual DCU profile (See parameter 0304) STATUS WORD Name Value Status ALARM An alarm is on. No alarms are on. REQ_MAINT A maintenance request is pending. No maintenance request is pending. DIRLOCK Direction lock is ON. (Direction change is locked out.) Direction lock is OFF.
Page 241 To illustrate the operation of the state diagram, the following example ( ABB DRV LIM implementation of the ABB Drives profile) uses the control word to start the drive: • First, the requirements for using the must be met. See above.
Page 242 ACS550-02/U2 User’s Manual The state diagram below describes the start-stop function of (CW) CONTROL WORD (SW) bits for the ABB Drives profile. STATUS WORD From any state From any state From any state Emergency Stop Emergency Off Fault OFF2 (CW Bit1=0)
Page 243 ACS550-02/U2 User’s Manual Reference scaling ABB Drives and DCU profiles The following table describes scaling for the ABB Drives and DCU REFERENCE profiles. ABB Drives and DCU profiles Reference Reference Range Scaling Remarks type REF1 -32767 Speed or -20000 = -(par. 1105) Final reference limited by …...
Page 244 ACS550-02/U2 User’s Manual ABB Drives and DCU profiles Value Reference AI reference scaling setting REF1 (%) · ( (%) / 0.5 · (%)) COMM COMM Fieldbus reference correction coefficient 200% 100% AI1 input signal (100 - 0.5 · (par. 1105))%...
Page 245 ACS550-02/U2 User’s Manual Reference handling parameters to configure for control of rotation Group 10: START/STOP/DIR direction for each control location ( 1 and 2). The following diagrams illustrate how group 10 parameters and the sign of the fieldbus reference interact to produce...
Page 246 (e.g. PROFIdrive for PROFIBUS, AC/DC Drive for DeviceNet). All of the FBA protocols can also be configured for the ABB Drives profile. Configuration details depend on the protocol and profile used.These details are provided in a user’s manual supplied with the FBA module.
Page 247 ACS550-02/U2 User’s Manual Details for the ABB Drives profile (which apply for all protocols) are provided in section on page 262. ABB Drives profile technical data Control interface In general, the basic control interface between the fieldbus system and the drive consists of: •...
Page 248 The use of a second reference (REF2) is supported only when a protocol is configured for the ABB Drives profile. Reference scaling is fieldbus type specific. See the user’s manual provided with the FBA module and/or the following sections as appropriate: •...
Page 249: Mechanical And Electrical Installation – Fba
ACS550-02/U2 User’s Manual Mechanical and electrical installation – FBA WARNING! Connections should be made only while the drive is disconnected from the power source. Overview The FBA (fieldbus adapter) is a plug-in module that fits in the drive’s expansion slot 2.
Page 250: Communication Set-Up – Fba
ACS550-02/U2 User’s Manual Communication set-up – FBA Serial communication selection To activate the serial communication, use parameter 9802 . Set 9802 COMM PROT SEL = 4 ( EXT FBA Serial communication configuration Setting 9802, together with mounting a particular FBA module, automatically sets the appropriate default values in parameters that define the communication process.
Page 251 Input reference 2 supplied by fieldbus. SELECT COMM (Required only if 2 references used.) COMM 10 ( COMM Note: Multiple references are supported only when using the ABB Drives profile. Scaling Where required, can be scaled. See the following sections, as REFERENCES appropriate: •...
Page 252 ACS550-02/U2 User’s Manual Relay output control Using the fieldbus for relay output control requires: • drive parameter values set as defined below • fieldbus controller supplied, binary coded, relay command(s) in the appropriate location. (The location is defined by the Protocol Reference, which is protocol dependent.)
Page 253: Feedback From The Drive – Fba
– bit 0 (DI3) STATUS Scaling To scale the drive parameter values see the following sections, as appropriate: • on page 269 (ABB Drives profile technical Actual Value scaling data) • on page 271 (Generic profile technical Actual Value scaling data).
Page 254: Diagnostics – Fba
ACS550-02/U2 User’s Manual Diagnostics – FBA Fault handling The ACS550 provides fault information as follows: • The control panel display shows a fault code and text. See chapter Diagnostics on page for a complete description. • Parameters 0401 , 0412...
Page 255 ACS550-02/U2 User’s Manual Fieldbus fault code Drive fault code (DRIVECOM specification) 630Fh CONFIG FILE 7510h SERIAL 6306h EFB CON FILE FF90h FORCE TRIP FF92h FF93h FF94h FF56h MOTOR PHASE FF95h OUTP WIRING 630Fh INCOMPATIBLE SW 4110h CB OVERTEMP FF6Bh USER LOAD CURVE...
Page 256 ACS550-02/U2 User’s Manual Serial communication diagnostics Besides the drive fault codes, the FBA module has diagnostic tools. Refer to the user’s manual supplied with the FBA module. Fieldbus adapter Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 257: Abb Drives Profile Technical Data
ACS550-02/U2 User’s Manual ABB Drives profile technical data Overview The ABB Drives profile provides a standard profile that can be used on multiple protocols, including protocols available on the FBA module. This section describes the ABB Drives profile implemented for FBA modules.
Page 258 ACS550-02/U2 User’s Manual ABB Drives profile (FBA) CONTROL WORD Name Value Commanded state Comments RAMP_HOLD Enable ramp function. RFG OUT ENABLED Enter RAMP FUNCTION GENERATOR ACCELERATOR ENABLED Halt ramping (Ramp Function Generator RFG OUT HOLD output held) RAMP_IN_ Normal operation. Enter...
Page 259 ACS550-02/U2 User’s Manual ABB Drives profile (FBA) STATUS WORD Description Name Value (Correspond to states/boxes in the state diagram) OFF_2_STA 2 inactive ACTIVE OFF_3_STA 3 inactive ACTIVE SWC_ON_INHIB SWITCH ON INHIBIT ACTIVE SWITCH ON INHIBIT NOT ACTIVE ALARM Alarm (See section...
Page 260 ACS550-02/U2 User’s Manual The state diagram below describes the start-stop function of (CW) CONTROL WORD (SW) bits. STATUS WORD From any state From any state From any state Emergency Stop Emergency Off Fault OFF2 (CW Bit1=0) OFF3 (CW Bit2=0) (SW Bit3=1)
Page 261 As described earlier in section on page 252, the word is REFERENCE Control interface a speed or frequency reference. Reference scaling The following table describes scaling for the ABB Drives profile. REFERENCE ABB Drives Profile (FBA) Reference Reference Range Scaling Remarks...
Page 262 ACS550-02/U2 User’s Manual ABB Drives profile (FBA) Reference Value setting AI reference scaling REF1 (%) · ( (%) / 0.5 · (%)) COMM COMM Fieldbus reference correction coefficient 200% 100% AI1 input signal (100 - 0.5 · (par. 1105))% 100%...
Page 263 ACS550-02/U2 User’s Manual Reference handling parameters to configure for control of rotation Group 10: START/STOP/DIR direction for each control location ( 1 and 2). The following diagrams illustrate how group 10 parameters and the sign of the fieldbus reference interact to produce...
Page 264 ACS550-02/U2 User’s Manual Actual Value As described earlier in section on page 252, Actual Values are Control interface words containing drive values. Actual Value scaling The scaling of the integers sent to the fieldbus as Actual Values depends on the resolution of the selected drive parameter.
Page 265: Generic Profile Technical Data
ACS550-02/U2 User’s Manual Generic profile technical data Overview The generic profile aims to fulfill the industry-standard drive profile for each protocol (e.g. PROFIdrive for PROFIBUS, AC/DC Drive for DeviceNet). Control Word As described earlier in section on page 252, the...
Page 266 ACS550-02/U2 User’s Manual Actual Value scaling For Actual Values, scale the feedback integer using the parameter’s resolution. (See section on page for parameter resolutions.) For Complete parameter list example: Feedback (Feedback integer) · (Parameter resolution) = Parameter resolution integer Scaled Value 0.1 mA...
Page 267 ACS550-02/U2 User’s Manual Fieldbus adapter Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 268: Diagnostic Displays
ACS550-02/U2 User’s Manual Diagnostics WARNING! Do not attempt any measurement, parts replacement or other service procedure not described in this manual. Such action will void the warranty, may endanger correct operation and increase downtime and expense. WARNING! All electrical installation and maintenance work described in this chapter should only be undertaken by qualified service personnel.
Page 269: Correcting Faults
ACS550-02/U2 User’s Manual The message reappears after a few seconds if the control panel is not touched and the fault is still active. Flashing green – Alarms For less severe errors, called alarms, the diagnostic display is advisory. For these situations, the drive is simply reporting that it had detected something “unusual.”...
Page 270 ACS550-02/U2 User’s Manual Fault Fault name in Description and recommended corrective action code panel Intermediate circuit DC voltage is excessive. Check for and correct: DC OVERVOLT • Static or transient overvoltages in the input power supply. • Insufficient deceleration time (parameters 2203...
Page 271 Internal fault. Low voltage condition detected on OINT power supply. OPEX PWR Contact your local ABB representative. Internal fault. Current measurement is out of range. Contact your local ABB CURR MEAS representative. Ripple voltage in the DC link is too high. Check for and correct: SUPPLY PHASE •...
Page 272 RESERVED Internal fault. Configuration Block Drive ID is not valid. Contact your local DRIVE ID ABB representative. Internal configuration file has an error. Contact your local ABB CONFIG FILE representative. Fieldbus communication has timed out. Check for and correct: SERIAL •...
Page 273 Fault name in Description and recommended corrective action code panel 101… Error internal to the drive. Contact your local ABB representative and report SYSTEM ERROR the error number. 201… Error in the system. Contact your local ABB representative and report the SYSTEM ERROR error number.
Page 274 ACS550-02/U2 User’s Manual Fault Fault name in Description and recommended corrective action code panel 1009 Parameter values for power control are inconsistent: Improper motor PAR PCU nominal frequency or speed. Check for both of the following: • 1 < (60 · 9907 / 9908 <...
Page 275: Correcting Alarms
ACS550-02/U2 User’s Manual • digital input • serial communication. When the fault has been corrected, the motor can be started. History For reference, the last three fault codes are stored into parameters 0401, 0412, 0413. For the most recent fault (identified by parameter 0401), the drive stores additional data (in parameters 0402…0411) to aid in troubleshooting a problem.
Page 276 ACS550-02/U2 User’s Manual Alarm Display Description code 2004 The change in direction being attempted is not allowed. Either: DIR LOCK • Do not attempt to change the direction of motor rotation, or • Change parameter 1003 to allow direction change (if DIRECTION reverse operation is safe).
Page 277 ACS550-02/U2 User’s Manual Alarm Display Description code 2013 This alarm warns that the drive is about to perform an automatic fault AUTORESET (Note 1) reset, which may start the motor. • To control automatic reset, use Group 31: AUTOMATIC RESET.
Page 278 ACS550-02/U2 User’s Manual Alarm Display Description code 2027 This alarm warns that the condition defined by parameter 3701 USER LOAD USER has been valid longer than half of the time defined by CURVE LOAD C MODE 3703 USER LOAD C TIME 2028 Shown during the Start delay.
Page 279 ACS550-02/U2 User’s Manual Code Description 5050 Parameter upload was aborted. 5051 File error was detected. 5052 Parameter upload attempt has failed. 5060 Parameter download was aborted. 5062 Parameter download attempt has failed. 5070 Panel backup memory write error was detected.
Page 280: Maintenance Intervals
Note: ACS550-U2 Installation Supplement [3AUA0000004067 (English)] provides more information about the maintenance of ACS550-U2 drives. Maintenance intervals If installed in an appropriate environment, the drive requires very little maintenance. This table lists the routine maintenance intervals recommended by ABB. Interval Maintenance Instruction...
Page 281: Heatsink
(see parameter 2901). This information can also be passed to the relay output (see parameter 1401) regardless of the used panel type. Replacement fans are available from ABB. Do not use other than ABB specified spare parts. Maintenance...
Page 282 ACS550-02/U2 User’s Manual Replacing the fan (R7) 1. Remove power from the drive. 2. Remove the upper front cover and disconnect the control panel cables. 3. Disconnect the discharging resistor wire. 4. Remove the DC capacitor pack by undoing the black fixing screws.
Page 283 ACS550-02/U2 User’s Manual Replacing the fan (R8) 1. Remove power from the drive. 2. Remove the upper front cover. 3. Disconnect the fan capacitor and power supply wires. Replace the starting capacitor. 4. Undo the black fastening screws of the plastic side cover of the fan and lift the cover off.
Page 284: Capacitors
It is not possible to predict a capacitor failure. Capacitor failure is usually followed by damage to the drive and an input cable fuse failure, or a fault trip. Contact ABB if capacitor failure is suspected. Replacements are available from ABB. Do not use other than ABB specified spare parts.
Page 285 ACS550-02/U2 User’s Manual Replacing the capacitor pack (R8) 1. Remove power from the drive. 2. Remove the upper front cover and the side plate equipped with control panel mounting slot. 3. Disconnect the discharging resistor wire. 4. Undo the fastening screws.
Page 286: Leds
ACS550-02/U2 User’s Manual LEDs This table describes LEDs of the drive. Where When the LED is lit Control board Red (blinking) Drive in fault state Green The power supply on the board is OK. Control panel mounting platform Drive in fault state...
Page 287 ACS550-02/U2 User’s Manual Maintenance Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 288: Ratings
ACS550-02/U2 User’s Manual Technical data Ratings By type code, the table below provides ratings for the ACS550 adjustable speed AC drive, including: • IEC ratings • NEMA ratings (shaded columns) • frame size • drive cabinet heat dissipation and air flow.
Page 289 … for every 100 m (330 ft). If the installation site is higher than 2000 m (6600 ft) above sea level, please contact your local ABB distributor or office for further information. Technical data Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
Page 290: Fuses And Circuit Breakers
ACS550-02/U2 User’s Manual Fuses and circuit breakers Fuses Branch circuit protection must be provided by the end-user, sized per national and local electric codes. Recommendations for fuses for short-circuit protection on the input cable and the drive are below. Verify that the fuse operates rapidly enough by checking that the short-circuit current of the installation is at least the minimum short-circuit current given in the table below.
Page 291 ACS550-02/U2 User’s Manual Circuit breakers Use of fuses is preferable, but ABB MCCB circuit breakers listed in the table below can also be used. Type code Input current ABB Tmax moulded case circuit breaker (MCCB) Tmax frame Tmax rating Electronic...
Page 292: Cable Types
ACS550-02/U2 User’s Manual Cable types The table below gives copper and aluminium cable types for different load currents. Cable sizing is based on max. 9 cables laid on a cable ladder side by side, ambient temperature 30 °C, PVC insulation, surface temperature 70 °C (EN 60204-1 and IEC 60364-5-52/2001).
Page 293 ACS550-02/U2 User’s Manual NEMA Cable sizing is based on NEC Table 310-16 for copper wires, 75 °C (167 °F) wire insulation at 40 °C (104 °F) ambient temperature. Not more than three current- carrying conductors in raceway or cable or earth (directly buried). For other conditions, dimension the cables according to local safety regulations, appropriate input voltage and the load current of the drive.
Page 294: Cable Entries
ACS550-02/U2 User’s Manual Cable entries Mains and motor cable maximum sizes (per phase) accepted at the cable terminals, and the tightening torques are listed below. U1, V1, W1, U2, V2, W2 Earthing PE Frame Number of Max. cable Bolt Tightening...
Page 295: Motor Connection
ACS550-02/U2 User’s Manual Motor connection Motor connection specifications 0…U , 3-phase symmetrical, U at the field weakening point Voltage (U 0…500 Hz Frequency 0.01 Hz Frequency resolution See section on page 293. Current Ratings 1.5 · P Power limit 10…500 Hz...
Page 296: Control Connections
ACS550-02/U2 User’s Manual Examples for using the table: Requirements Checking and conclusions R7 frame size, Check operational limits for R7 -> for a 100 m (330 ft) cable the basic Category C2, unit is sufficient. 100 m (330 ft) cable Check EMC limits ->...
Page 297: Cooling
ACS550-02/U2 User’s Manual Cooling Cooling Specifications Internal fan, flow direction from front to top. Method Free space around the drive See the table on page for required free space around the drive. Dimensions, weights and noise The dimensions and mass for the ACS550 depend on the frame size and enclosure type, refer to section on page 308.
Page 298: Ambient Conditions
ACS550-02/U2 User’s Manual Ambient conditions The following table lists the ACS550 environmental requirements. Ambient environment requirements Storage and transportation in the Installation site protective package • 0…1000 m (0…3 300 ft) • 1000…2000 m (3 300…6 600 ft) if Altitude...
Page 299: Materials
EU. They must be removed and handled according to local regulations. For further information on environmental aspects and more detailed recycling instructions, please contact your local ABB representative. Applicable standards Drive compliance with the following standards is identified by the standard “marks”...
Page 300: Ce Marking
ACS550-02/U2 User’s Manual CE marking A CE mark is attached to the drive to verify that the drive follows the provisions of the European Low Voltage and EMC Directives (Directive 73/23/EEC, as amended by 93/68/EEC, and Directive 89/336/EEC, as amended by 93/68/EEC).
Page 301: Iec/En 61800-3 (2004) Definitions
ACS550-02/U2 User’s Manual The drives are to be used in a controlled environment. See section Ambient on page for specific limits. conditions IEC/EN 61800-3 (2004) Definitions EMC stands for Electromagnetic Compatibility. It is the ability of electrical/electronic equipment to operate without problems within an electromagnetic environment.
Page 302: Equipment Warranty And Liability
If you have any questions concerning your ABB drive, please contact the local distributor or ABB office. The technical data, information and specifications are valid at the time of printing.
Page 303: Product Protection In The Usa
ACS550-02/U2 User’s Manual Product protection in the USA This product is protected by one or more of the following US patents: 4,920,306 5,301,085 5,463,302 5,521,483 5,532,568 5,589,754 5,612,604 5,654,624 5,799,805 5,940,286 5,942,874 5,952,613 6,094,364 6,147,887 6,175,256 6,184,740 6,195,274 6,229,356 6,252,436...
