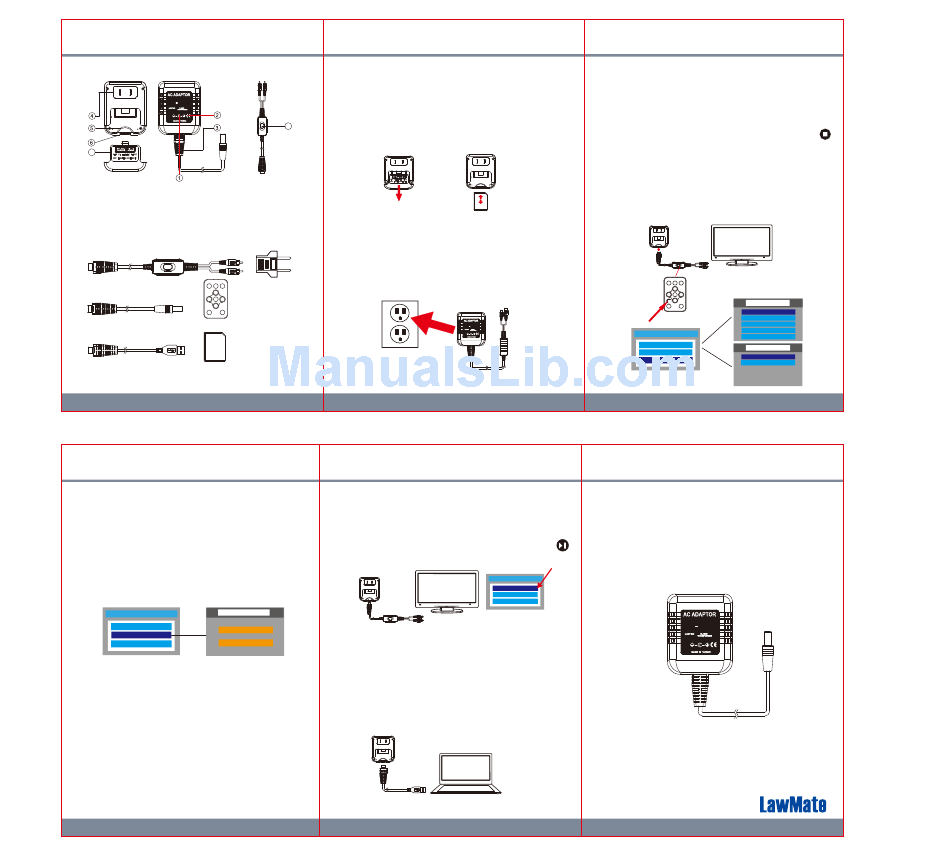

1. Name and Parts
Model No:UN310-0520
I/P:AC 100~240V 50/60Hz 0.3A
O/P:DC 5V
2A
7
RISK OF ELECTRIC SHOCK
DRY LOCATION USE ONLY
1. Camera Lens
5. SD Card Slot
2. Microphone*
6. Mini USB Port
3. Covert Power Cord
7. Bottom Covert Piece
4. Two Prong Power Supply
8. IR Sensor
*No microphones are available for USA market.
2. Package Content
A/V Out Cable
European Standard
Adapter Head
※For PAL system only
IR Remote Control
Covert Power Cord
SD
Card
USB Connection Cable
Memory Card
(4GB above)
1
6. Recording Mode Setting
6.1. Default recording mode is set to "Motion Detect" and
length of recording time is 1 minute.
6.2. To change length of recording time, go to "Recorder
Setting" then enter "Motion Detect", press SETUP on
Remote Control. Enter "Length of Recording" and select
the length required(1 min, 3min, 5min).
6.3. If continuous recording function is required, enter
"Recorder Setting" then select " Normal" recording mode.
Main Menu
Recorder Setting
Video Files
Normal
Recorder Setting
Motion Detect
Program Setting
7. Overwrite Recording(Loop Recording)
7.1. By default, overwrite recording function is turned off to
avoid loss of important videos.
7.2. To enable overwrite recording, go to "Recorder Setting",
enter either "Normal" or "Motion Detect" mode then press
SETUP on remote control.
Select "On" to activate Overwrite recording function.
4
3. Getting Started
3.1. Remove the bottom lid by sliding it downwards as shown
in illustration 1
3.2. Insert memory card into slot as shown in illustration 2
3.3. Plug covert power cord or desired cables to Mini USB port.
3.4. Slide the bottom lid back to place.
8
3.5. As soon as you plug the charger into an electrical outlet
it is ready to work.
RISK OF ELECTRIC SHOCK
DRY LOCATION USE ONLY
(1)
4. Power on DVR and Video Recording
4.1. Simply plug the charger DVR into an electrical outlet to
power on the device.
4.2. Recording mode is preset on "Motion Detect", hence,
recording will start as soon as a movement is detected.
Model No:UN310-0520
I/P:AC 100~240V 50/60Hz 0.3A
O/P:DC 5V
2
8. Viewing Videos
8.1. On monitor
With charger plugged to an electrical outlet and AV Out
Cable connected to monitor, go to "Video Files" and
select the video file you would like to watch then press
on remote control.
8.2. On computer
Unplug charger from electrical outlet, connect USB Cable
to Mini USB Port on charger and the other end to an USB
port on computer. The charger will be recognized as an
external drive for use to replay the videos on computer.
It is recommended to remove the memory card from the
device and use a card reader to play videos on computer
without interrupting recording task.
5
5. Time and Date Setting & On-Screen Display
5.1. Connect AV Out Cable to Mini USB port.
5.2. Connect the other end of the two RCA jacks to AV In port on
monitor.
5.3. Power on monitor and select the corresponding video source.
5.4. Aim RF remote control to the IR Sensor, press stop button
on the control to exit recording / preview page and enter
menu page.(See illustration)
5.5. Navigate DVR menu by aiming RF remote control to IR
Sensor and scroll down "Program Setting" then "Time Date
Setting" to edit accordingly.
5.6. Time and Date information is automatically saved as soon
as the charger is unplugged from electrical outlet.
(2)
2A
Recorder Setting
Program Setting
Video Recorder in Adapter Design
Main Menu
Video Files
Recorder Setting
Program Setting
LawMate, innovation never stops
Program Setting
Language
Time Date Display
Time Date Setting
MIC
Main Menu
Storage Info
Video Files
Program Setting
Firmware Upgrade
Load Setup Defaults
3
PV-AC20
Quick Guide
Model No:UN310-0520
I/P:AC 100~240V 50/60Hz 0.3A
O/P:DC 5V
2A
®
V1.5A
