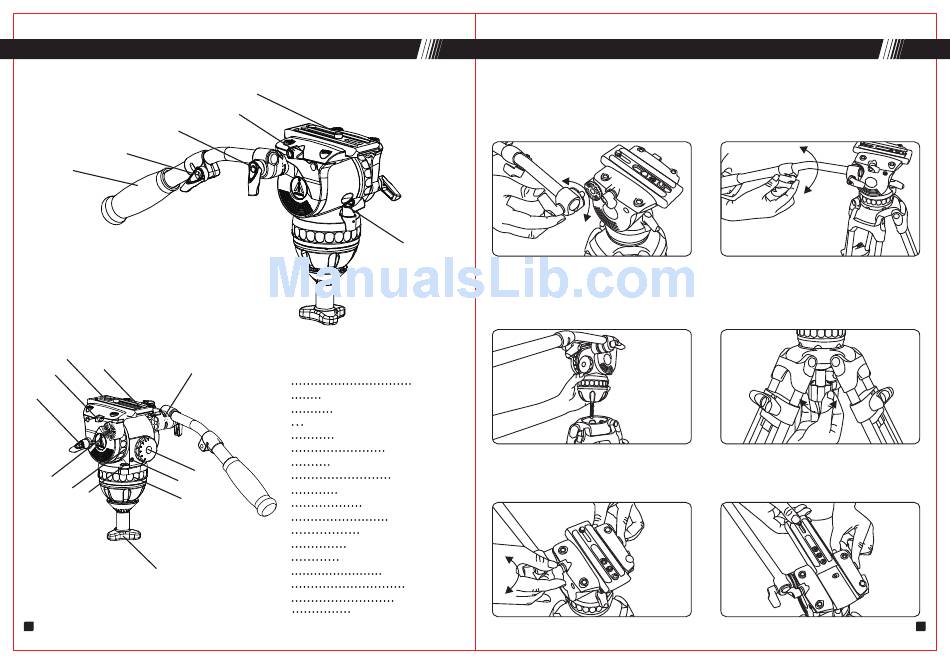

PARTS(GH06~GH25)
C
B
A
Q
S
G
T
H
I
M
N
J R
L
F
7
D
E
K
A
B Pan Handle Length Adjustment Knob
C
Pan Handle Locking Thumb Screw
D Quick Release Plate Camera Locking Screw
E
Quick Release Plate Locking Knob
F Bowl Locking Knob
G
Quick Release Plate Release Button
H Tilt Locking Knob
I Counterbalance Adjustment Dial
J Tilt Drag Adjustment Dial
K Pan Locking Knob
L Pan Drag Adjustment Dial
M Pan Handle Mounting Rosette
N
Bubble Level LED Power Button
Q Quick Release Plate
R
Bubble Level
S Rubber Washer
T
Pan Handle Locking Washer
SET UP & USE(GH06-GH25)
1. Installing Pan Handle
Place the pan handle A in the desired position on the rosette M and tighten the locking
thumb screw C, making sure the locking washer T is in place between the handle and
rosette. Loosen the length adjustment knob B on the pan handle to adjust the length of
the handle. Length adjustment is only available on GB2 and GB3 pan handles.
M
loose
A lock
2. Installing the Fluid Head on a Tripod
Adjust the tripod to the desired height, and place the ball of the head into the bowl of
the tripod. Level the head using the bubble level R, and secure the bowl locking
knob F onto the bottom of the head on the underside of the tripod bowl.
Pan Handle

3. Removing the Quick Release Plate

Loosen locking knob E and hold the release button G while sliding the plate toward
the rear of the head.
loose
E
lock
loose
B
lock
loose
G
C
lock
F
G
