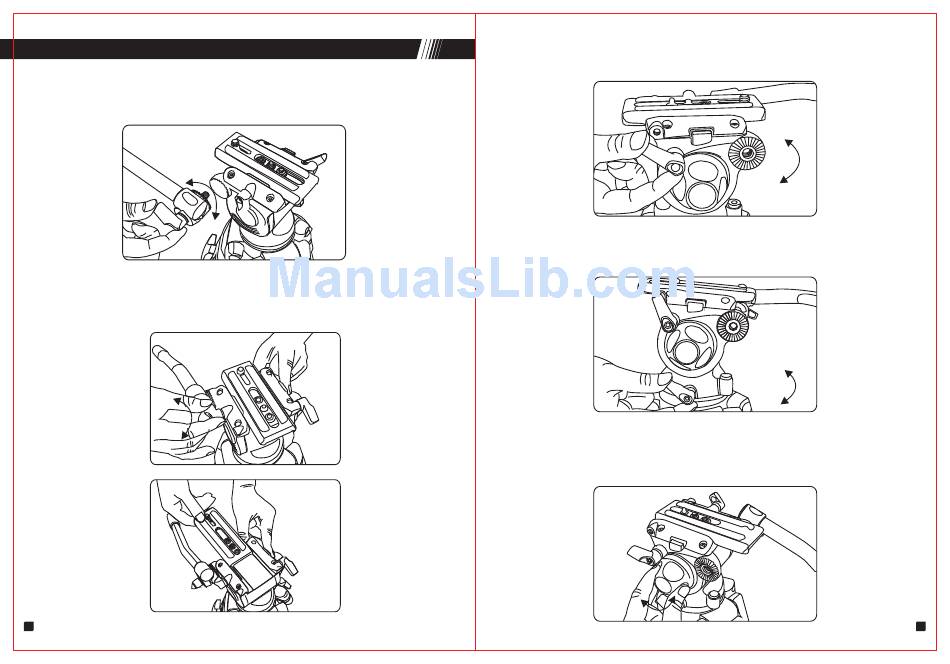

SET UP & USE (GH03)
1.Install Pan Handle
Place the pan handle E in the desired position on the pan handle mounting
rosette F, then secure it by tightening pan handle locking thumb screw D.
E
F
loose
lock
D

2. Removing the Quick Release Plate

Loosen the quick release plate locking knob B, then press the quick release
plate release button C while sliding the plate A towards the back of the head.
loose
B
lock
3
C
C

3.Adjusting Tilt Position

Loosen the tilt locking knob G to change tilt position. Tighten the knob to
lock the tilt position.
G

4.Adjusting Pan Position

Loosen the pan locking knob J to change the pan position. Tighten the
knob to lock the pan position.
5.Tilt Drag Adjustment
Increase tilt drag by turning the tilt drag adjustment knob H clockwise
(as if tightening a screw). Reduce the tilt drag by turning the knob H
counter-clockwise (as if loosening a screw).
H
Increase Reduce
loose
lock
loose
J
lock
