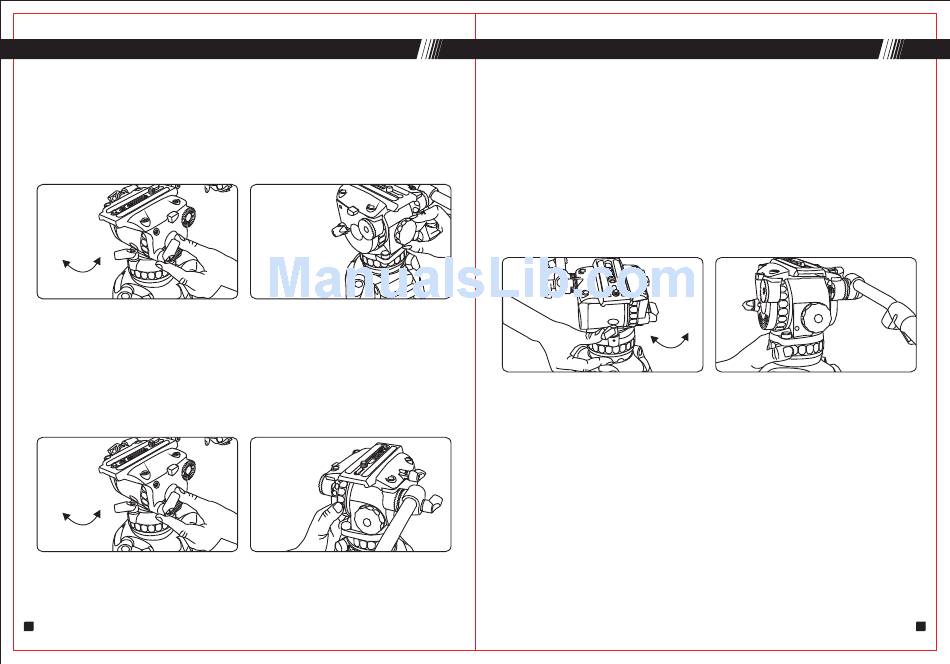

ADJUSTING COUNTERBALANCE & DRAG
6.Adjusting Counterbalance Settings
Loosen the tilt locking knob H and hold the head steady with the pan
handle. Turn the counterbalance dial I to a setting that allows the camera
to remain in position without operator assistance. Lower numbers mean
less tension; higher numbers use more tension to balance loads.
lock loose
7. Adjusting Tilt Drag
Loosen the tilt locking knob H. Turn the tilt drag adjustment dial J to the
desired setting. Lower numbers give less resistance; higher numbers
offer more resistance.
lock loose
11
I
J
ADJUSTING PAN DRAG
8. Adjusting Pan Drag
Loosen the pan locking knob K. Use the pan drag adjustment dial L to set
the desired amount of pan drag. Lower numbers give less drag; higher
numbers offer more resistance.
lock loose
