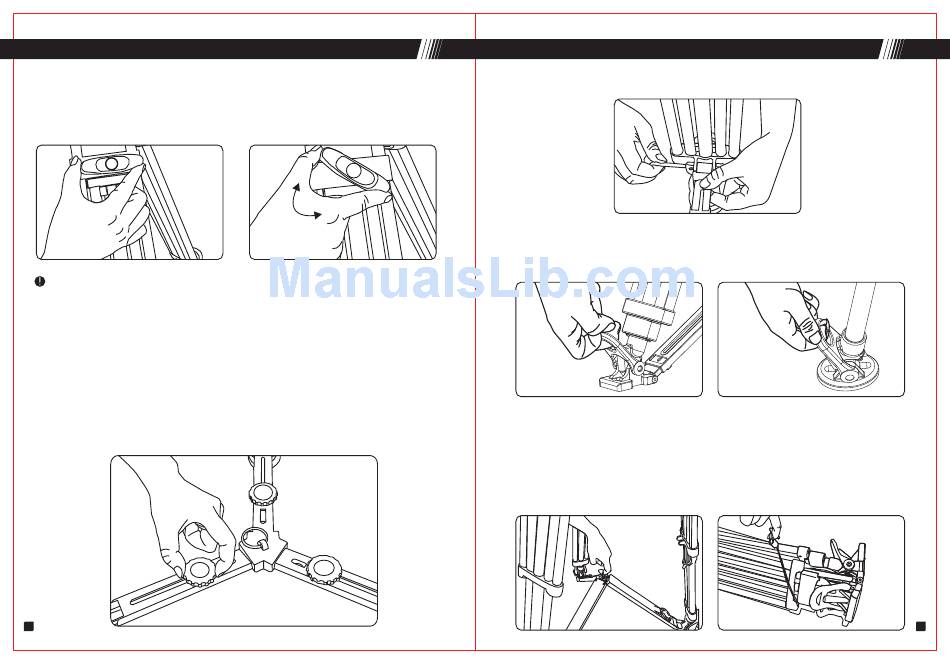

USE(GA/GC751 GA/GC752 GA/GC101 GA/GC102)

1.Loosening and Locking Tripod Legs
To Loosen: Turn locking knob C counter-clockwise
To Tighten: Turn locking knob C clockwise
C
Special Note: It is a best practice to unlock, adjust, and re-lock the
tripod legs before the legs are unfolded.

2.Adjusting the Mid-Level Spreader

To make adjustments to the mid-level spreader, loosen the locking knob E
and reposition the leg attached to that section of the spreader. When the
adjustment is made, tighten the knob to re-secure the spreader.

3.Adjusting the Ground Spreader

To make adjustments to the ground spreader, loosen the locking knob E
and reposition the leg attached to that section of the spreader. When the
adjustment is made, tighten the knob to re-secure the spreader.
23
C
lock
loose
E
USE(GA/GC751 GA/GC752 GA/GC101 GA/GC102)
4. To remove the mid-level spreader, remove the retaining pin K
located where the spreader attaches to the leg.
5. Installing a Ground Spreader
To install the ground spreader, remove the rubber tripod feet
using the pull-tab J, placed the spiked tripod feet on the ground
spreader, and secure them with the rubber tab J on the spreader.
J
6. Folding the Tripod
a. Loosen the leg locks and collapse each leg to its minimum length, then
lock the knobs.
b. Unlock and reduce the all attached spreaders to their minimum size.
c. Securing the tripod by the bowl, pull up on the spreader pull ring F and fold
the legs, then pull out the easy hook D and wrap it around the legs,
securing the hook to a leg tube.
F
K
J
D
