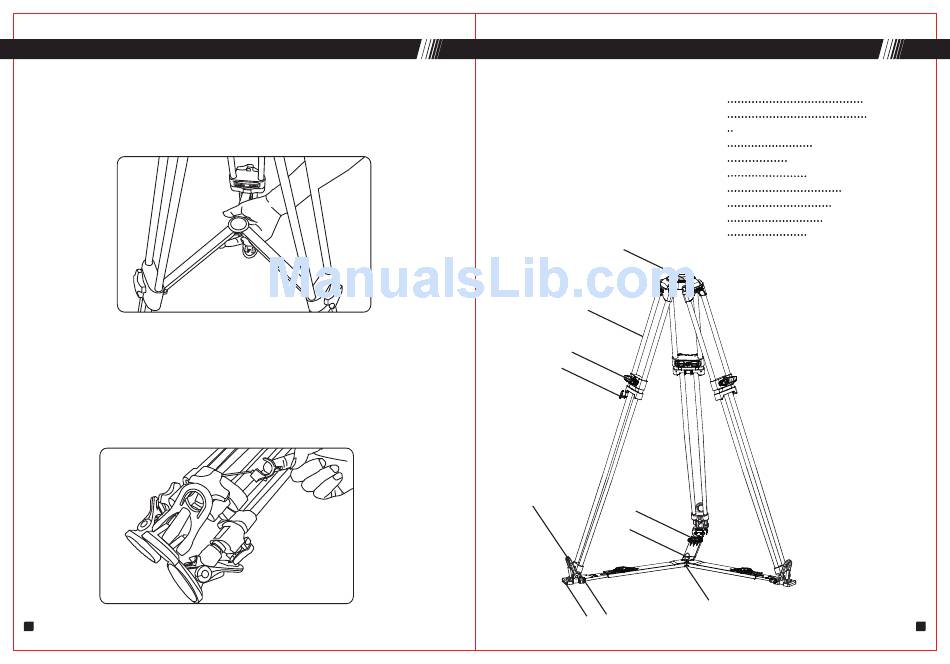

4. Folding Tripod
a: Loosen the locking knobs for all extended leg stages and reduce them
to their minimum length, then re-lock all of the knobs
b: Holding the tripod by the bowl, lift up on the center of the mid-level
spreader G and fold the legs together. Pull out the retractable easy hook D,
wrap it around the legs, and secure the hook to a leg tube to secure the legs.
19
G
D
PARTS(GA101/GC101)
A
B
C
D
J
E
F
I H
A Bowl B ase
B Leg Tube
C
Patented Leg Lock (Mono-Lock) for Leg Stages
D Retractable E asy Hook
E
Ground Spreader Locking Knob
F
Ground Spreader Pull Ring
G
Ground Spreader
H
Spiked Tripod Foot
I
Anti-Slip Rubber Foot
J
Rubber Foot Securing Tab
