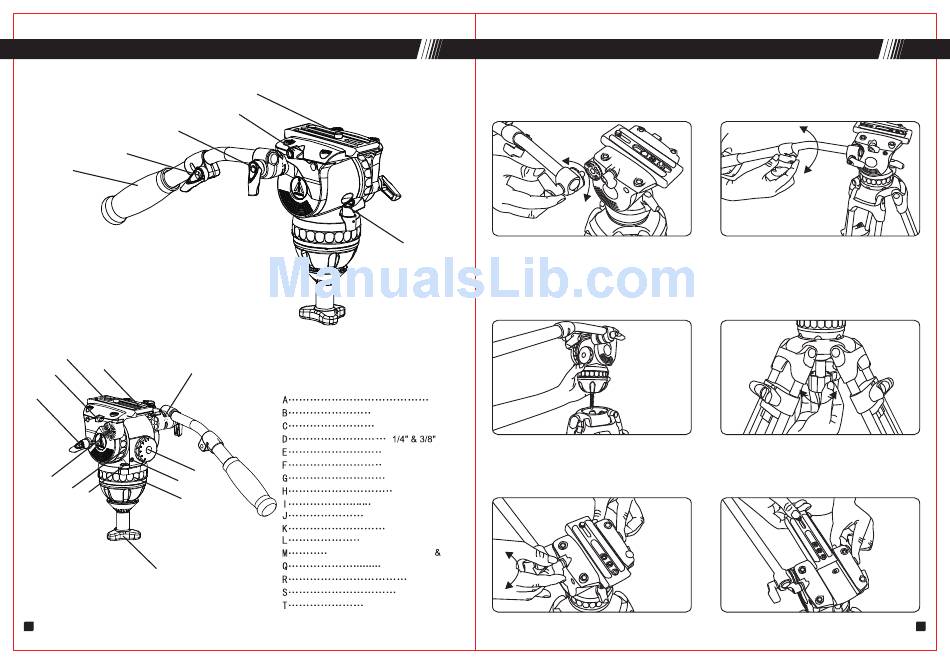

PARTS(GH06~GH25)
C
B
A
Q
S
G
T
H
I
M
N
J R
L
F
7
D
E
K
Length adjusting knob
Pan bar locking knob
Plate locking knob
Bowl locking knob
Insurance button
Tilt locking knob
Counterbalance knob
Tilt drag adjusting knob
Pan locking knob
Pan drag adjusting knob
Connection part of handle head
Quick release plate
Rubber washer
Pan bar locking washer
SET UP & USE(GH06-GH25)

1. Installing Panbar

Open the panbar, screwing the panbar knob "A" to "M" hole, and lock it. Loose
knob "B" , you can extend the length and adjust the pan bar angle,that you like.
M
loose
A lock

2. Installing fluid head to tripod

Please adjust the tripod to your required height and lock every stage tightly.
Put the head on the tripod, level the fluid head using the bubble level.Then
tighten the bowl locking knob "F" .
Pan bar
screw

3. Removing quick release plate

Loose plate locking knob "E" , pull the slide plate to the rear of the fluid head
whilst pressing the safety button "G" .
loose
E
Bubble level
lock
loose
B
lock
loose
G
C
lock
F
G
