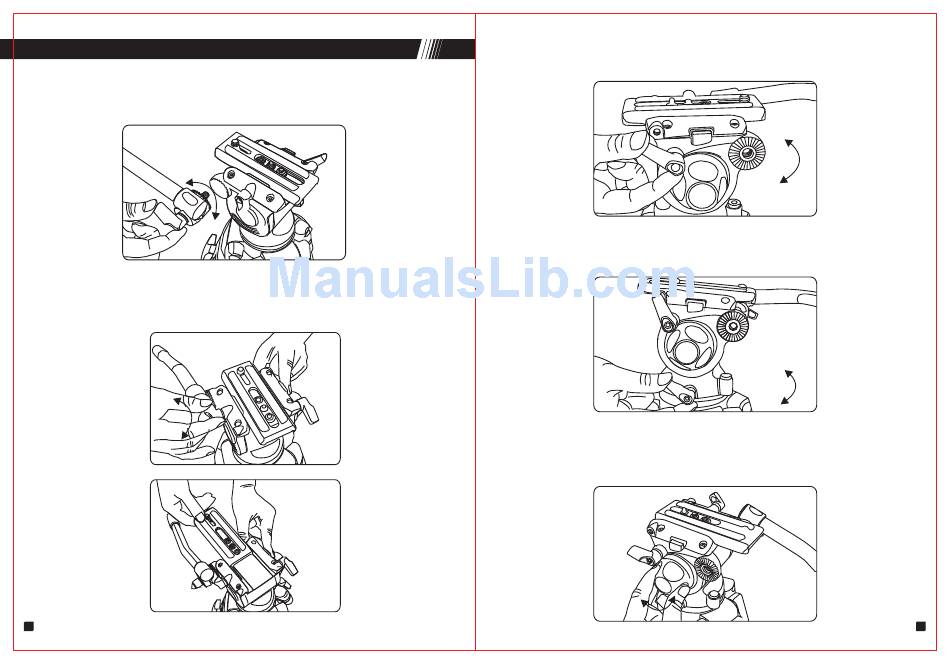

SET UP & USE (GH03)

1.Install Panbar

Open the panbar,adjust the panbar to your request position, then screwing
the panbar knob "D" to "F " hole, and lock it.
E
F
loose
lock
D
2. Removing quick release plate
Loose plate locking knob "B" , pull the slide plate to the rear of the fluid head
whilst pressing the safety button "C" .
loose
B
lock
3
C
C

3.Adjusting tilt position

Lock or Loose locking knob "G" to adjust tilt position.
G

4.Adjusting pan position

Lock or Loose locking knob "J" to adjust pan position.
5.Pan & Tilt drag adjustment
Screwing or loose tilt locking knob "H" , then slowly move the fluid head
vertically until find your required drag. (GH03 is with fixed pan drag)
H
Increase Reduce
loose
lock
loose
J
lock
