Skyrc G630 Instruction Manual

Instruction Manual

Charging Hub G630

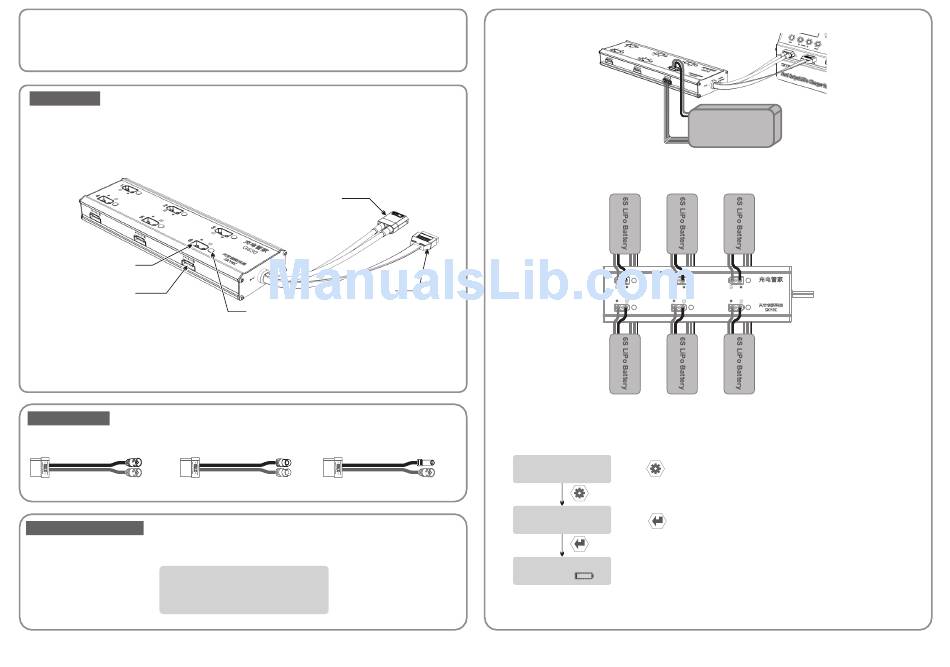

Introduction

Charging hub G630 embeds an automatic charging management system. It only can work with SkyRC
PC1080. 1 piece SkyRC PC1080 can work with 2 pieces G630, and 6 packs of LiPo batteries can be
connected to 1 piece G630, i.e. 1 piece SkyRC PC1080 can charge 12 packs of LiPo batteries in
sequence, automatically, according to their voltage, the highest one will be charged first, 6 LEDs
indicate the status of each battery respectively.
XT90 Battery
Connector
Balance Lead Socket
Note: if you want to use G630, please make sure your SkyRC PC1080
has installed V1.05 firmware or above.
Optional Parts
AS150 AS150
(Female case w/ male terminals) (Male case w/ female terminals)
SK-600119-03 SK-600119-04

Operation Procedures

1. Power on: connect the charger to AC source, switch on, charger will 'beep' once and fan will turn to
self-check, screen display as below.
L i P o
2 0 . 0 A
V1.0
SK-600124
XT90 Connector
Balance Lead
LED Status Indicator
AS150
(Male case w/ female terminal) +
XT150 Male connector
SK-600119-05
F A S T C H A R G E
S L A V E
-
1
-
2. Connect G630 to SkyRC PC1080 charger.
3.
Connect batteries to G630. (as illustrated below)
(Note: only 6S LiPo batteries supported. Must connect both balance lead and main lead)
1 2
4 5
4.
Operate the charger:
One G630 can connect up to 6 pieces batteries and charge 1 piece battery at a time. The first
connected battery will be charged first, and the rest will be charged according to their voltage,
the highest one will be charged first.
L i P o F A S T C H A R G E
Press key to enter G630 interface.
2 0 . 0 A S L A V E
C o n n e c t G 6 3 0
Press key to start.
G 6 3 0 I n U s e
During charging, current and capacity percentage will be displayed.
2 0 .0 A 1 5 %
5.
Charging finished.
The correspondent LED of the fully charged battery will turn solid green, buzzer will beep 5 times.



6S LiPo Battery
3
G630
6
-
2
-
