Skyrc G360 Instruction Manual

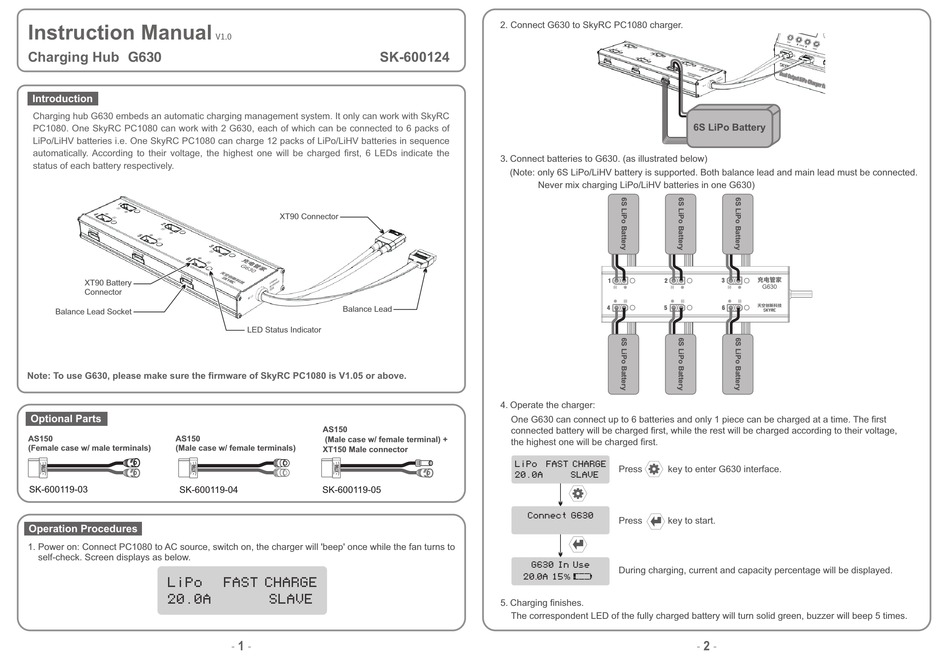

Instruction Manual
Charging Hub G630

Introduction

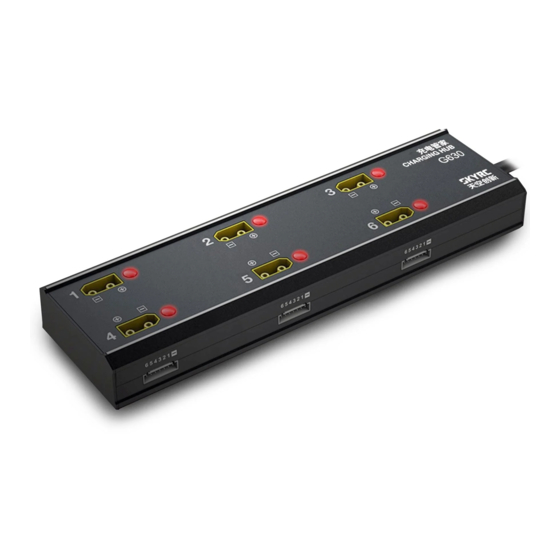

Charging hub G630 embeds an automatic charging management system. It only can work with SkyRC
PC1080. One SkyRC PC1080 can work with 2 G630, each of which can be connected to 6 packs of
LiPo/LiHV batteries i.e. One SkyRC PC1080 can charge 12 packs of LiPo/LiHV batteries in sequence
automatically. According to their voltage, the highest one will be charged first, 6 LEDs indicate the
status of each battery respectively.
XT90 Battery
Connector
Balance Lead Socket
Note: To use G630, please make sure the firmware of SkyRC PC1080 is V1.05 or above.

Optional Parts

AS150 AS150
(Female case w/ male terminals) (Male case w/ female terminals)
SK-600119-03 SK-600119-04

Operation Procedures

1. Power on: Connect PC1080 to AC source, switch on, the charger will 'beep' once while the fan turns to
self-check. Screen displays as below.
L i P o
2 0 . 0 A
V1.0
SK-600124
XT90 Connector
Balance Lead
LED Status Indicator
AS150
(Male case w/ female terminal) +
XT150 Male connector
SK-600119-05
F A S T C H A R G E
S L A V E
-
1
-
2. Connect G630 to SkyRC PC1080 charger.
3.
Connect batteries to G630. (as illustrated below)
(Note: only 6S LiPo/LiHV battery is supported. Both balance lead and main lead must be connected.
Never mix charging LiPo/LiHV batteries in one G630)
1 2
4 5
4.
Operate the charger:
One G630 can connect up to 6 batteries and only 1 piece can be charged at a time. The first
connected battery will be charged first, while the rest will be charged according to their voltage,
the highest one will be charged first.
L i P o F A S T C H A R G E
Press key to enter G630 interface.
2 0 . 0 A S L A V E
C o n n e c t G 6 3 0
Press key to start.
G 6 3 0 I n U s e
During charging, current and capacity percentage will be displayed.
2 0 .0 A 1 5 %
5.
Charging finishes.
The correspondent LED of the fully charged battery will turn solid green, buzzer will beep 5 times.



6S LiPo Battery
3
G630
6
-
2
-
