- Page 1 User's Guide Model RPM10 Laser Photo / Contact Tachometer with IR Thermometer Patented contact: www.ponpe.com sale@ponpe.com...
- Page 2 Introduction Congratulations on your purchase of Extech's Laser Photo/Contact Tachometer with Non- Contact IR Thermometer, Model RPM10. This Tachometer provides contact RPM and Linear Surface Speed measurements, non-contact RPM measurements and IR temperature measurements. The laser pointer beam provides accurate long distance measurements for photo tachometer measurements and also identifies the measurement spot for the non-contact temperature tests.

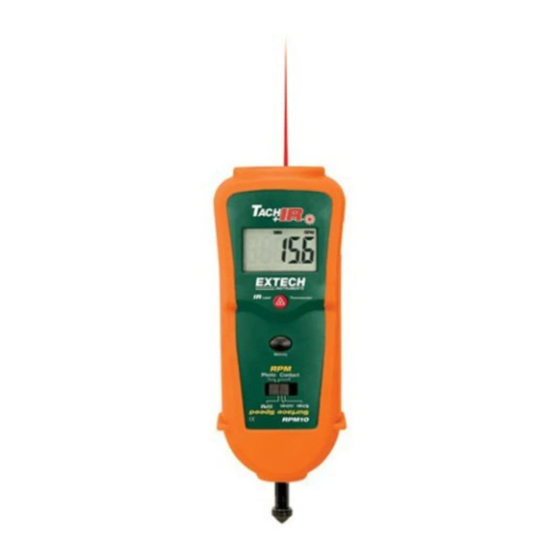

- Page 3 Meter Description Photo Tachometer sensor, IR Thermometer sensor and laser source MEASURE button IR Thermometer button Memory button Function Switch Battery compartment (rear) Contact Tachometer shaft RPM10-EU-EN-V2.2-3/11 contact: www.ponpe.com sale@ponpe.com...
- Page 4 NOTE: Bright ambient light may interfere with the reflected light beam. Shading the target area may be necessary in some cases. CAUTION: Rotating objects can be dangerous. Use extreme care. Laser beam Reflective Tape RPM10-EU-EN-V2.2-3/11 contact: www.ponpe.com sale@ponpe.com...
- Page 5 Slide the Function Switch to SURFACE SPEED “ft/min" or "m/min" position. Press the Measure button and hold the surface speed wheel against the moving surface being measured. Release the Measure button when the display stabilizes Linear Speed (approx. 2 seconds). Wheel RPM10-EU-EN-V2.2-3/11 contact: www.ponpe.com sale@ponpe.com...
- Page 6 1. Press the Memory key once: The “Last” icon appears with the stored last reading. 2. Press the Memory key again. The “MAX” icon appears with stored maximum reading 3. Press the Memory key again. The “MIN” icon appears with stored minimum reading RPM10-EU-EN-V2.2-3/11 contact: www.ponpe.com...
-
Page 7: Specifications
18 to 28°C (64 to 82°F) Emissivity 0.95 fixed value Field of View D/S = Approx. 6:1 ratio (D = distance, S = spot) Laser power Less than 1mW Spectral response 6 to 14 μm (wavelength) Battery Replacement RPM10-EU-EN-V2.2-3/11 contact: www.ponpe.com sale@ponpe.com... - Page 8 Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
