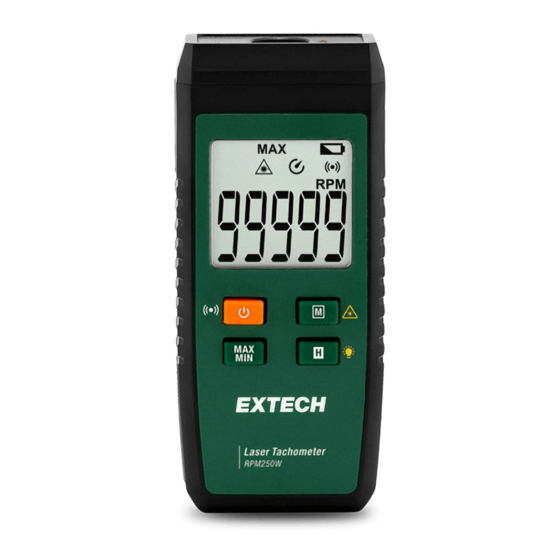

Laser tachometer
Hide thumbs Also See for RPM250W:

Advertisement

Quick Links

RPM250W Laser
Tachometer
Bluetooth® Connectivity with the
ExView® Mobile App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPM250W and is the answer not in the manual?

Questions and answers

Summary of Contents for Extech Instruments RPM250W

  • Page 1 Quick Start RPM250W Laser Tachometer Bluetooth® Connectivity with the ExView® Mobile App...
  • Page 2 Quick Start (en) PREPARATION 1. Included items: RPM250W, reflective tape, Quick Start, and batteries. 2. Download the User Manual from the Extech website. 3. Download the ExView mobile app from the App Store (iOS®) or Google Play (Android™). 4. Install the batteries in the rear compartment, observing correct polarity.
  • Page 3 9. For measurements > 99,999 RPM, OL will appear. COUNT OPERATION (ILLUMINATED OBJECTS) 1. Short press the button until COUNT is displayed. 2. Position the meter 2 to 20 in. (50 to 500 mm) from the device under test. 3. Switch on the device under test so that it begins moving. 4.
  • Page 4 METER DESCRIPTION 1. Photo-electric sensor and Laser pointer lens 2. Backlit LCD 3. Function buttons 4. Tripod Mount 5. Battery compartment FUNCTION BUTTONS Long press to switch the meter on. Short press to switch off. Long press to switch Bluetooth on/off. In RPM mode, short press to view the MAX/MIN readings;...
  • Page 5 DISPLAY SYMBOLS 1. Measurement reading 2. Laser pointer symbol 3. Tachometer/Counter monitor symbol 4. Data Hold 5. Maximum reading 6. Minimum reading 7. Low battery symbol 8. Auto Power Off (APO) symbol 9. Bluetooth active 10. Tachometer (RPM) and Counter (COUNT) mode icons BASIC SPECIFICATIONS Display type 5 digit backlit LCD...
  • Page 6 CUSTOMER SUPPORT Customer Support Telephone List: https://support.flir.com/contact Service e-mail: repair@extech.com Technical Support: https://support.flir.com #NAS100083; r. AA/78963/78963; en-US...
  • Page 8 Quick Start last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2021, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
