Summary of Contents for Netvue Vigil

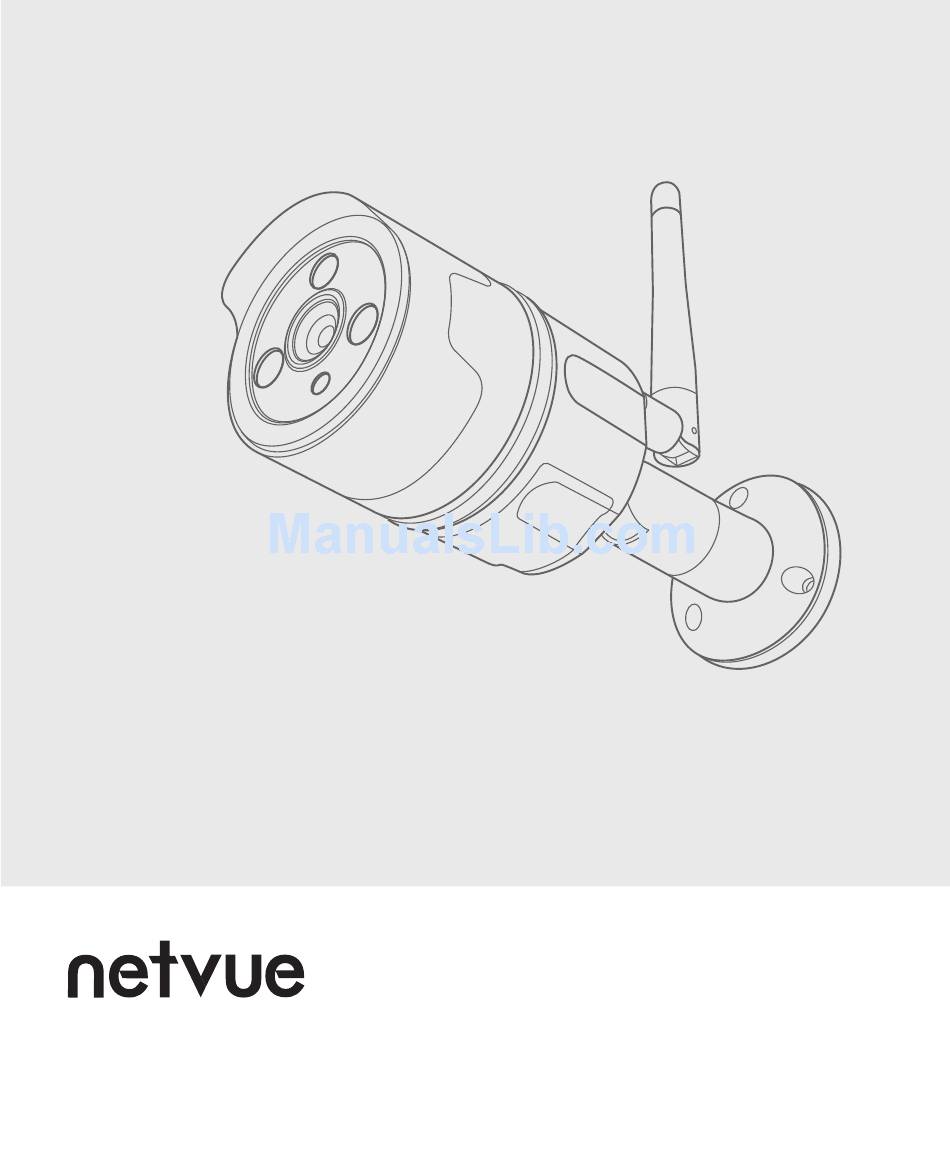

- Page 1 Your property guardian at day and night Vigil Camera Quick Guide...
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environ- ment.
- Page 4 Your property guardian at day and night Vigil Camera Quick Guide Drilling Template Power Adapter Quick Guide Hex Key Mounting Screws Anchors Drill Bit Weatherproof Tube Antenna Vigil Camera...
- Page 6 Infrared LEDs Antenna Lens Light Sensor Speaker Micro SD Card Slot Microphone Wi-Fi Configuration Button Ethernet Cable Port Status Light Power Port...
- Page 7 Vigil Camera comes with a built-in card slot which supports up to 128GB Micro SD card. Once you insert the storage card, the camera will automati- cally start to record and store videos on the storage card. Videos can be replayed by dragging the timeline below the live feed screen in Netvue App.
- Page 8 1. Keep the Vigil Camera and all accessories out of reach of children and pets. 2. Power supply voltage that is required to operate Vigil Camera should be 12VDC (≥1000mA). 3. The product can only be used in proper temperature and humidity: Operating temperature: -20°C - 50°C (-4°F-122°F)
-
Page 9: Wireless Connection
Please add the Vigil Camera onto your Netvue account through Netvue App before mounting it outside. There are two ways of adding Vigil Camera onto Netvue App: Wireless Connection and Wired Connection. Wireless connection Wireless connection uses Wi-Fi to connect the camera to the App. It is the easiest way if the installation spot is close to your router and have a strong Wi-Fi signal. - Page 10 If the Wi-Fi signal strength is weak at your installation spot, the Ethernet cable connection might be your solution. An Ethernet cable is required for this connection method. Plug one end of the Ethernet cable into Vigil Cam, and the other end into the LAN port on your router. Then follow the in-app instruction to complete the following set up process.
- Page 11 1. Power on Vigil Camera with the provided power adapter. You should hear a chime once it has fully started.
- Page 12 Download Netvue App 2. Download Netvue App from App Store or Google Play onto your phone.
- Page 13 3. Register an account if you are a new user to Netvue. If you already have an account, log into your account.
- Page 14 4. Tap “+” at the top right corner to add a new device.
- Page 15 5. A product list will show up, choose “Vigil Camera. ”...
- Page 16 please select network connection Wireless connect Wired connect CANCEL 6. Choose a connecting method.
- Page 17 please select network connection Wireless connect Wired connect CANCEL 7. Follow the in-app instruction to complete the entire set up process.
- Page 18 OWNER OUTDOOR AUTO HISTORY 8. Test the video streaming. Now move to Vigil Camera installation.
- Page 19 Check following things before you starting to drill holes on your wall: 1. Vigil Camera has been successfully added to your Netvue App and is able to stream video. 2. Have planned the cable route. Measured the length of the power cable and Ethernet cable (if you plan to use Ethernet connection) you will need.
- Page 20 Step 1: Take off the anti-dust cap. Attach the provided antenna to Vigil Camera.
- Page 21 Step 2: Find a good installation spot. We recommend installing the Vigil camera just 7-10 feet (2-3 meter) above the ground for a better two-way audio experience. There is a power outlet nearby. Test whether Vigil camera can stream video smoothly at the spot.
- Page 22 Step 3: Before you starting to drill, make sure you know the locations of wall-in pipes and electrical wires. (If you are not comfortable with drilling holes, please consult with a licensed electrician.) Install Camera on Concrete or Brick: Use the provided drilling template to mark the position of holes on your wall.
- Page 24 Install Camera on Wood: Use the provided drilling template to mark the position of holes on your wall. Directly tighten the included screws to secure the camera.
- Page 25 Step 4 (Wired Connection): Read this step if you are using wired connection, otherwise skip to Step 5. This step requires the skill of making an Ethernet cable. Consult with the electrician if you are not sure how to do it. A weatherproof tube is needed for Ethernet cable to avoid leaking water into Ethernet cable port.
- Page 26 Step 5: Use the hex key to loosen screws on the hinge. Point the camera to your designate direction, then tighten the screws. 105° 360° 360°...
- Page 27 Netvue Vigil Camera uses status light to communicate. Status Light Description Green Online Blinking Green Wi-Fi Configuration Mode Slowly Blinking Green Offline None Not Working Properly...
- Page 28 Feel free to contact us for additional help: support@netvue.com 1(866)749-0567 Chat with us through App @NetvueTech www.netvue.com 240 W Whitter Blvd Ste A, La Habra, CA 90631 © 2010-2018 Netvue Technologies Co., Ltd. All Rights Reserved. Version 1.0...
Need help?
Do you have a question about the Vigil and is the answer not in the manual?
Questions and answers
My QR and id code are no longer legible. The vigil camera is still connected to my fire tablet through Alexa. Can I connect it to my android instead somehow?
If the QR and ID code are no longer legible, you can connect your Netvue Vigil camera to an Android device using the Smart Link method:
1. Press and hold the button at the end of the camera’s cable until you hear a sound and see the green light flashing.
2. In the Netvue App, select "Smart Link."
3. Wait for the device to play a chime, indicating successful connection.
4. If there is no chime after two minutes, check if you are using a 5 GHz Wi-Fi network, entered the wrong Wi-Fi password, or if the router is too far.
5. Try switching to a 2.4 GHz Wi-Fi network or use a personal hotspot to connect.
6. Once you hear cheerful music, indicating a successful connection, click the green button in the app.
7. Name your device, and it will appear in the Netvue App.
This answer is automatically generated
