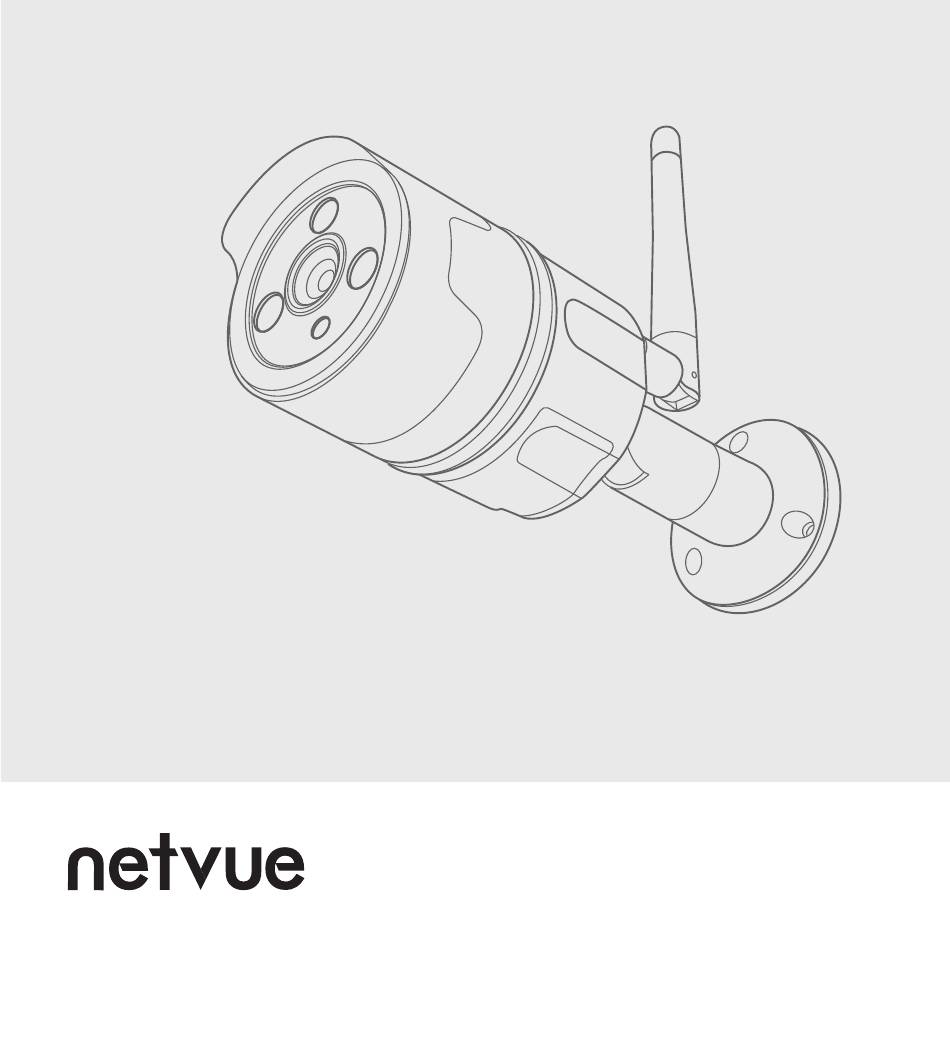

- Page 1 Your property guardian at day and night Vigil Camera Quick Guide...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Your property guardian at day and night Vigil Camera Quick Guide Drilling Template Power Adapter Quick Guide Hex Key Mounting Screws Anchors Drill Bit Weatherproof Tube Antenna Vigil Camera...
- Page 6 Infrared LEDs Antenna Lens Light Sensor Speaker Micro SD Card Slot Microphone Wi-Fi Configuration Button Ethernet Cable Port Status Light Power Port...
- Page 7 Vigil Camera comes with a built-in card slot which supports up to 128GB Micro SD card. Once you insert the storage card, the camera will automati- cally start to record and store videos on the storage card. You can view those videos in the ‘Replay’...
- Page 8 1. Keep the Vigil Camera and all accessories out of reach of children and pets. 2. Power supply voltage that is required to operate Vigil Camera should be DC12V (≥1000mA). 3. The product can only be used in proper temperature and humidity: Operating temperature: -10°C - 50°C (14°F-122°F)
-
Page 9: Wireless Connection
Please add the Vigil Camera onto your Netvue account through Netvue App before mounting it outside. There are two ways of adding Vigil Camera onto Netvue App: Wireless Connection and Wired Connection. Wireless connection Wireless connection uses Wi-Fi to connect the camera to the App. It is the easiest way if the installation spot is close to your router and have a strong Wi-Fi signal. -
Page 10: Wired Connection
If the Wi-Fi signal strength is weak at your installation spot, the Ethernet cable connection might be your solution. An Ethernet cable is required for this connection method. Plug one end of the Ethernet cable into Vigil Cam, and the other end into the LAN port on your router. Then follow... - Page 11 Download Netvue App 1. Download Netvue App from App Store or Google Play onto your phone.
- Page 12 2. Register an account if you are a new user to Netvue. If you already have an account, log into your account.
- Page 13 3. Tap “+” to add a new device.
- Page 14 4. A product list will show up. Choose ‘Outdoor Cameras’ - ‘Vigil Camera’ .
- Page 15 5. Scan the QR code on the back of the Vigil.
- Page 16 6. Choose a connecting method, and then follow the in-app instruction to complete the entire set up process.
- Page 17 7. Test the video streaming. Now move to Vigil Camera installation.
- Page 18 Check following things before you starting to drill holes on your wall: 1. Vigil Camera has been successfully added to your Netvue App and is able to stream video. 2. Have planned the cable route. Measured the length of the power cable and Ethernet cable (if you plan to use Ethernet connection) you will need.
- Page 19 Step 1: Take off the anti-dust cap. Attach the provided antenna to Vigil Camera.
- Page 20 Step 2: Find a good installation spot. We recommend installing the Vigil camera just 7-10 feet (2-3 meter) above the ground for a better two-way audio experience. There is a power outlet nearby. Test whether Vigil camera can stream video smoothly at the spot.
- Page 21 Step 3: Before you starting to drill, make sure you know the locations of wall-in pipes and electrical wires. (If you are not comfortable with drilling holes, please consult with a licensed electrician.) Install Camera on Concrete or Brick: Use the provided drilling template to mark the position of holes on your wall.
- Page 23 Install Camera on Wood: Use the provided drilling template to mark the position of holes on wood. Directly tighten the included screws to secure the camera.
- Page 24 Step 4 (Wired Connection): Read this step if you are using wired connection, otherwise skip to Step 5. This step requires the skill of making an Ethernet cable. Consult with the electrician if you are not sure how to do it. A weatherproof tube is needed for Ethernet cable to avoid leaking water into Ethernet cable port.
- Page 25 Step 5: Use the hex key to loosen screws on the hinge. Point the camera to your designate direction, then tighten the screws. 105° 360° 360°...
- Page 26 Netvue Vigil Camera uses status light to communicate. Status Light Description Solid Green Online Blinking Green Wi-Fi Configuration Mode Slowly Blinking Green Offline None Not Working Properly...
- Page 28 Feel free to contact us for additional help: support@netvue.com 1(866)749-0567 @NetvueTech Netvue Forum in-App Chat netvue.com/community www.netvue.com 240 W Whitter Blvd Ste A, La Habra, CA 90631 © 2010-2019 Netvue Technologies Co., Ltd. All Rights Reserved. Version 1.2...
