Lawmate PV-500W Manual

1. BU-18HD Names and Parts
1. Camera Lens
2. Microphone
3. Micro USB
3
b
a
c
d e
User's Manual
a. BU-18HD 2MP Camera
b. Button & Screw Kit
c. 3M Double Coated Tape
d. DIY Lens Cover Button
e. User's Manual
1
8. Connect the wired controller to the DVR
3
1. Plug in the Controller able into the Control port 3 .
2. Turn on the Controller, the device starts recording instantly;
When turned off, the recording stops and device powered off.
3. To turn on the device, slide the controller toggle downward
and hold for 3 seconds.
4. To turn off the device, slide the controller toggle downward
again and hold for 3 seconds.
● Solid green LED on Controller - the controller is connected.
● Solid red LED on Controller - the device is recording.
9. Connect the DVR to the computer
With the DVR powered off, plug the USB Cable
into the USB port 14 on DVR and the
other end to the computer.
14
5
3. PV-500HDW Names and Parts
1
1.Battery Pack
2.Battery Lock Switch
2
3.Controller Port
3
15
4
5
6
7
8
9 10 11
4. Green LED - Charge 10. Rec on/stop Button
5. Red LED - Rec 11. Memory Card Slot
6. Orange LED - Wi-Fi 12. DC 5V in Jack
7. Blue LED - Power 13. Reset Key
8. Camera In Port 14. USB Port
9. Power / Wi-Fi on & 15. Default Key
off Button
2
10. Formate the memory card
1. The camera must be connectd to the DVR first.
2. With gold contact facing down, insert the memory card into
3. With device powered off, press and hold Rec button
10
4. And then press Power button for 3 seconds until you
9
see the blinking red LED.
5. Lastly, release both buttons at the same time.
● Blinking Red LED + Solid Blue LED - the memory
card is being formatted.
● All lights go off - the formatting is completed.
Caution: To make the memory card recognizable, please be
sure to format the memory card before using it for the first time.
Please note that formatting on computer is not recommended,
for it might result in the failure for the computer to recognize
the card.
11. Date and time setting (for Windows system)
1. From the desktop right-click to open Notepad, create a text
file named settime.txt
2. On the first line of the file, enter date and time information as
year.month.day hours.minutes.seconds
For example, suppose the time is October 16, 2015 15:00.
Then enter 2015.10.16 15:00:00
There should be a space left between day and hours,
※
and the time format should be the 24-hour format.
3. Save the file to the root directory of the memory card.
4. Insert the memory card into the slot, and power on the device.
The date and time setting is now completed.
When the date and time setting is completed. The settime.txt
※
file should not be visible when you connect the device to
the computer again.
6
4. Package Content of PV-500HDW
DC 5V 2A Charger
Battery Pack
European Adapter
USB Cable
Head
14
13
Controller Cable
Pouch
12
5. Install and Remove Battery
1.
To remove the battery, gently unlock
by switching LOCK switch to the right side
and push battery in red arrow pointed
direction.
To install the battery, attach the
2.
battery to the DVR, gently push
the battery in red arrow pointed
direction. Lastly, don't forget to slide
LOCK swith to the left to ensure it is
locked properly.
3
12. Operation
1. Power on: Press 9 for 3 seconds.
11 .
2. Recording: With device powered on, press 10
.
stop recording.
3. Wi-Fi: With device powered on, press 9 to turn on/off Wi-Fi.
4. Power off: With no ongoing recording, press
5. Reset: When the device functions abnormally, press
6. Restore default Wi-Fi password: long press 15
7. Restore default setting : press 15 for 10 seconds.
● Solid blue LED - power on
● Solid red LED - recording on
● Blinking orange LED - device searching for Wi-Fi connection
● Solid orange LED - device is connected to Wi-Fi
The device powers off itself when memory card is full.
※
13. Download videos and photos from DVR
Knowing that all video files are stored in the memory card.
You can do the following to download videos.
1. Use a memory card reader to transfer files from the card to
the computer.
2. Or, connect the device to the computer with memory card
inserted. Turn on the device and it will work as a flash drive.
14. Put on DIY lens cover button
Stick the tape on the button and screw it on the camera.
7
6. Battery Charging
Memory Card
1. Connect the charger plug to the DC In Jack
2. Plug the power cord of the charger to an AC wall outlet.
The charging starts automatically. The device can record
while charging.
● Solid green LED - the device is charging.
● Green LED goes off - the deviced is fully charged.
7. Connecting camera to DVR
To connect the camera,
plug the camera's micro
USB end into Camera in
port
※ Only to connect the camera
to DVR when system is turned off.
※ Both camera and memory card
need to be inserted to DVR
to turn the system on.
8
4

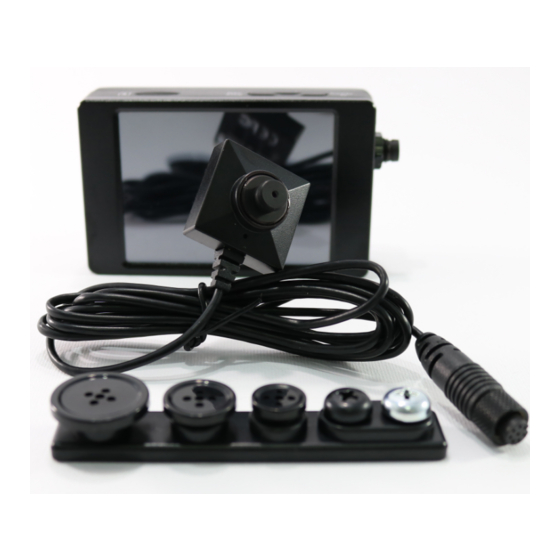

PV-500W Bundle
to start or
BU-18HD + PV-500HDW Package
9
for 3 seconds.
.
13
for 4 seconds.
LawMate, innovation never stops
12 .
on the DVR.
8
®
V1.0
