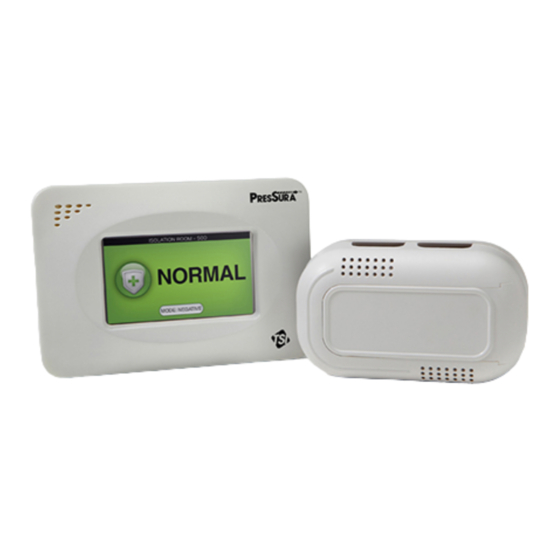

Room pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL RPM10/RPM20 (-LON)/RPM20-CC PRESSURA
The Model RPM10, RPM20 (-LON) and RPM20-CC Room Pressure Monitors must be wired to 24 VAC only.
Wiring the unit to 110 VAC will cause serious damage to the unit and void the warranty.
The pressure sensor must be mounted through the wall between the controlled space (isolation room) and
referenced space (ante room / hallway).
Go to
www.tsi.com
to download the Operation & Service Manual for the Model RPM10 or RPM20.
These installation instructions guide the installer through the installation of the TSI Model RPM10 PresSura
Room Pressure Monitor or the TSI Model RPM20 (-LON) / RPM20-CC PresSura Room Pressure Monitor. The
installation instructions cover all monitor versions. Unless specified otherwise, figures and instructions apply
to all versions. Please read these instructions thoroughly before beginning installation.
This product is classified by UL as to fire resistive properties only. See UL File R15545.

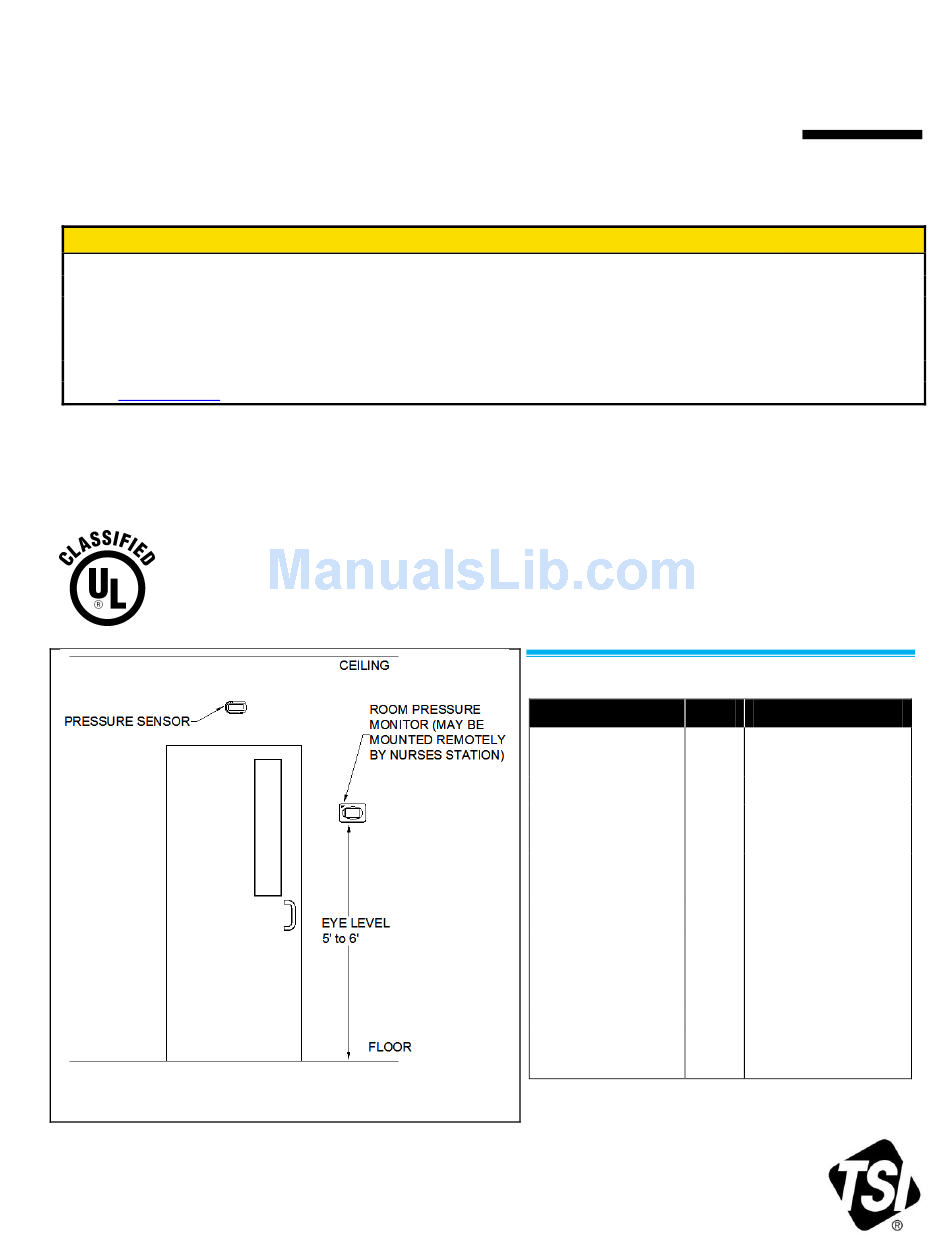

Figure 1: Typical Installation
_____________________
TSI and TSI logo are registered trademarks of TSI Incorporated. PresSura is a trademark of TSI Incorporated.
BACnet is a trademark of ASHRAE. Modbus is a registered trademark of Modicon, Inc.
LonWorks is a registered trademark of Echelon® Corporation.
ROOM PRESSURE MONITOR
WARNING

Component List

Part Number
800243
801913
800980
800981/800982
800986/800867
INSTALLATION INSTRUCTIONS
Qty
Description
1
Pressure sensor
with cable
or
1
Transducer Pick-
ups
RPM10 Room
Pressure Monitor
or
1
RPM20 /
RPM20-LON Room
Pressure Monitor
or
1
RPM20-CC Room
Pressure Monitor
™
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRESSURA RPM10 and is the answer not in the manual?

Questions and answers

Related Manuals for TSI Instruments PRESSURA RPM10

Summary of Contents for TSI Instruments PRESSURA RPM10

  • Page 1 MODEL RPM10/RPM20 (-LON)/RPM20-CC PRESSURA ™ ROOM PRESSURE MONITOR INSTALLATION INSTRUCTIONS WARNING The Model RPM10, RPM20 (-LON) and RPM20-CC Room Pressure Monitors must be wired to 24 VAC only. Wiring the unit to 110 VAC will cause serious damage to the unit and void the warranty. The pressure sensor must be mounted through the wall between the controlled space (isolation room) and referenced space (ante room / hallway).
  • Page 2 Pressure Sensor Installation WARNING 800243 pressure sensor must be mounted through the wall between the controlled space (isolation room) and referenced space (hallway), exactly as shown in Figure 3 and Figure 4.  Determine pressure sensor location (Figure 1, Figure 3, and Figure 4). Pressure sensor typically mounts in the reference space, and the dummy housing mounts in the isolation room.
  • Page 3 CEILING ½ THE DISTANCE BETWEEN CEILING & DOOR JAMB PRESSURE DUMMY SENSOR COVER BLACK FIRE SEALANT RING MUST INSERT INTO 2 ¼” HOLE CONTROLLED SPACE REFERENCE SPACE (TYPICALLY A HALLWAY) Figure 3: Cutaway View of Mounted Pressure Sensor Figure 4: Pressure Sensor Mounting p.
  • Page 4 Pressure Transducer Installation mounts in the reference space, and the plate WARNING mounts in the clean room. 801913 pressure plates must be mounted in the wall between the controlled space (clean room) Drill a 2¼-inch hole through each side of the ...

  • Page 5: Wiring Recommendations

    Pressure Monitor Installation Pressure Monitor Rough-in  Select the mounting location of the pressure monitor. The construction plans normally show the mounting location. If no location is specified, then the unit is typically installed as shown in Figure 1. Alternate mounting locations are nurses’ station, other staff areas, etc. ...

  • Page 6: Power Requirements

     Press cover plate onto PresSura Monitor. Power Requirements Through the Wall Digital Interface Sensor Each Module (DIM) Each 24VAC, 50/60 Hz, 3VA 24VAC, 50/60 Hz, 3VA WARNING: Monitor must be wired exactly as wire diagram shows. Making modifications to the wiring may severely damage the unit.
  • Page 7 NOTE: Number of sensors will vary per application. Figure 9. Pressure Transducer Sensors Wiring to Model RPM10 / RPM20 NOTE: Model RPM10 does not support Room 2 or Anteroom Pressure Transducer Sensors. RPM20-CC only does not support Room 2 or Anteroom Pressure Transducers when configured for use with Remote with Pump Particle Counter.
  • Page 8 Figure 10. Optional Supply / Exhaust Flow Switch Wiring to Model RPM10 / RPM20 NOTE: RPM20-CC does not support Exhaust Flow Switch when configured for use with Remote with Pump Particle Counter. Figure 11. Optional Supply / Exhaust Pressure-Based Flow Station Wiring to Model RPM10 / RPM20 NOTE: RPM20-CC does not support Exhaust Pressure-Based Flow Station when configured for use with Remote with Pump Particle Counter.
  • Page 9 Figure 12. Optional Supply / Exhaust Linear Flow Station Wiring to Model RPM10 / RPM20 NOTE: RPM20-CC does not support Exhaust Linear Flow Station when configured for use with Remote with Pump Particle Counter. Figure 13. Optional Supply / Exhaust Venturi Valve Wiring to Model RPM10 / RPM20 NOTE: RPM20-CC does not support Exhaust Venturi Valve when configured for use with Remote with Pump Particle Counter.
  • Page 10 Figure 14. Optional Door Switch Wiring to Model RPM10 / RPM20 NOTE: Model RPM10 does not support Room 2 Door Switch. RPM20-CC does not support Door Switch when configured for use with Remote with Pump Particle Counter. Figure 15. Optional Occupancy Sensor Wiring to Model RPM10 / RPM20 NOTE: Model RPM10 does not support Room 2 Occupancy Sensor.
  • Page 11 Figure 16. Optional Temperature Sensor Wiring to Model RPM20 NOTE: Model RPM10 does not support Temperature Sensor. Figure 17. Optional Key Switch Wiring to Model RPM10 / RPM20 NOTE: Model RPM10 does not support Room 2 Key Switch. RPM20-CC does not support Key Switch when configured for use with Remote with Pump Particle Counter p.
  • Page 12 Figure 18. Optional Key Switch with Remote Alarm Wiring to Model RPM10 / RPM20 NOTE: Model RPM10 does not support Room 2 Key Switch with remote alarm. RPM20-CC does not support Key Switch when configured for use with Remote with Pump Particle Counter p.
  • Page 13 Figure 19. Optional Relative Humidity Sensor Wiring to Model RPM20 NOTE: Model RPM10 does not support Relative Humidity Sensor. NOTE: A 120Ω resistor should be installed on both ends of the RS-485 daisy-chain. Figure 20. Optional Nurses Station Communications Wiring to Model RPM10 / RPM20 p.
  • Page 14 NOTE: A 500Ω resistor should be installed across the input at the Model RPM20-CC. Figure 21. Remote with Pump Particle Counter wiring to Model RPM20-CC. NOTE: Model RPM10 and Model RPM20 do not support Remote with Pump Particle Counter. NOTE: A 120Ω resistor should be installed on both ends of the RS-485 daisy-chain. Figure 22.
  • Page 15 Figure 23. Optional LONworks Communications Wiring to Model RPM20-LON p. 15 of 16...
  • Page 16 Figure 24. Proper Communication Wiring Diagram TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany...
