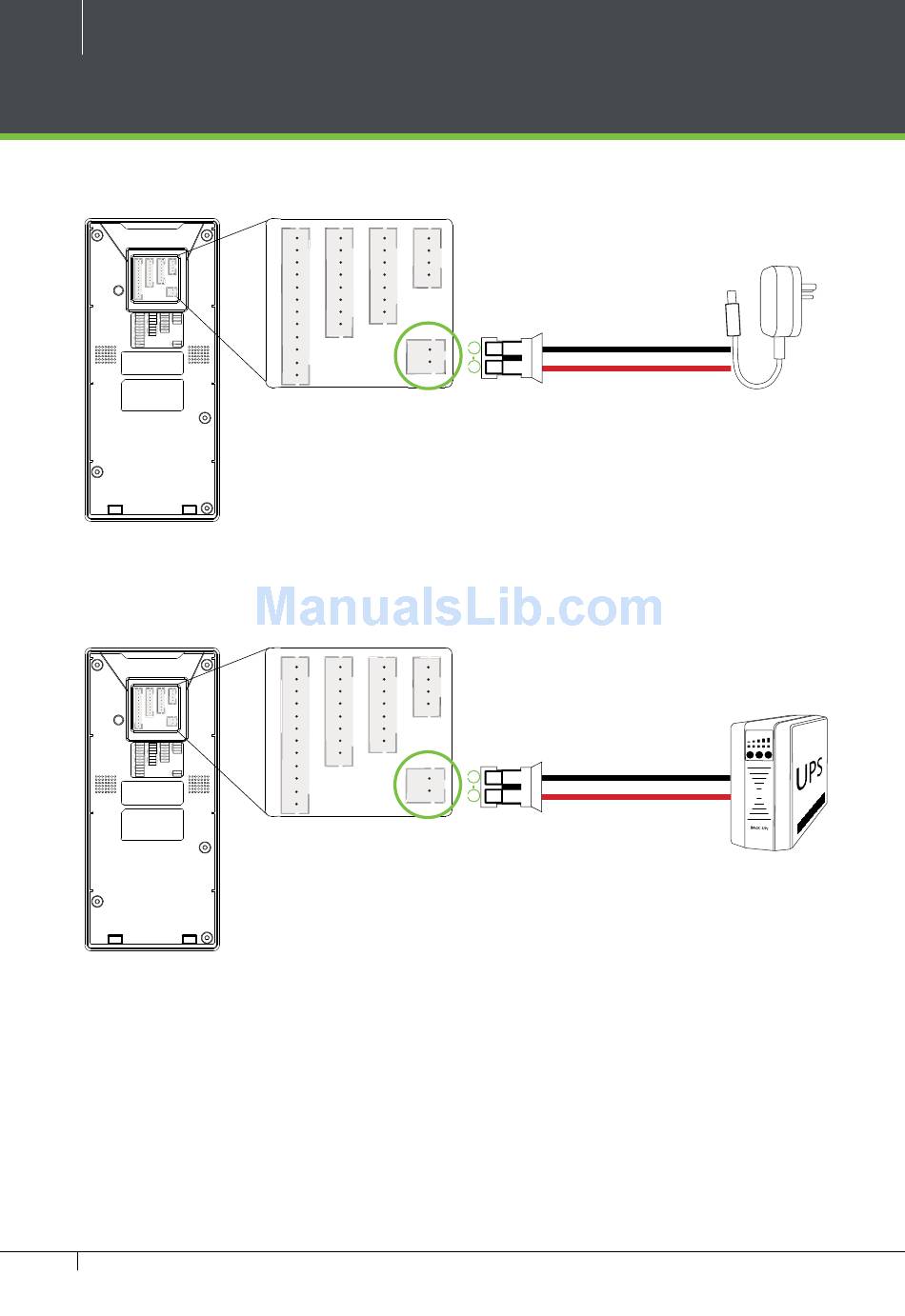

Power Connection

Without UPS
485B
RJ45-6
485A RJ45-3
GND RJ45-2
TXD RJ45-1
RXD
GND
WD1
WD0
GND
+12V
With UPS (Optional)
485B RJ45-6
485A RJ45-3
GND RJ45-2
TXD RJ45-1
RXD
GND
WD1
WD0
GND
+12V
Recommended Power Supply
•
12V±10%, at least 500mA
•
To share the power with other devices, use a power supply with higher current
ratings.
ProCapture-T & ProRF-T and ZKBioSecurity 3.0 Quick Start Guide
GND
1
2
12V DC
GND
1
2
12V DC
12V DC Adaptor
12V DC Adaptor
