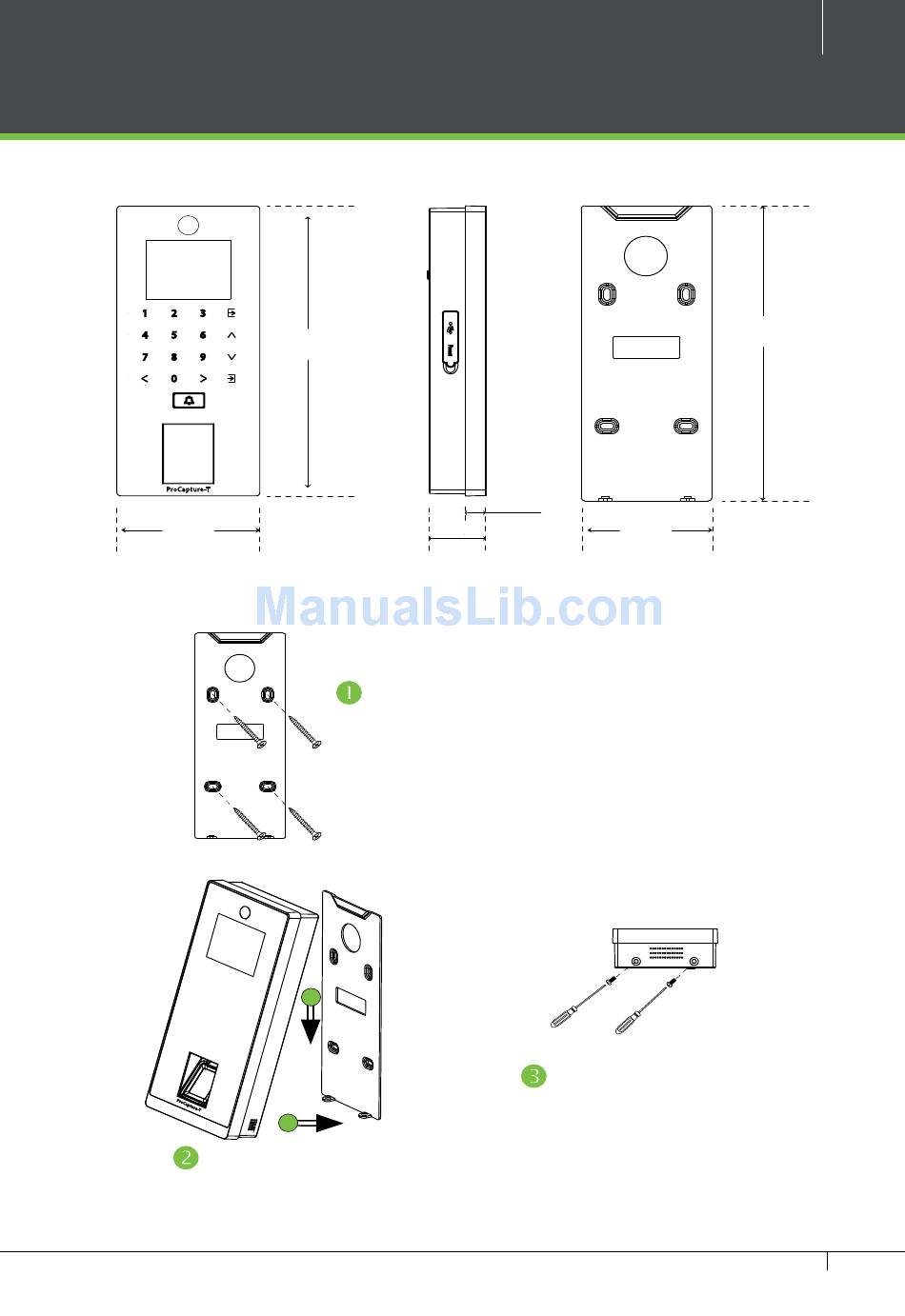

Product Dimensions & Installation
Product Dimensions
ProCapture-T
3.43in
(87mm)
Mounting the Device on the Wall
Insert the device to back plate.
7.70in
(195.5mm)
1.38in
(35mm)
Fix the back plate onto the wall using wall
mounting screws.
Note: We recommend drilling the mounting
plate screws into solid wood (i.e. stud/beam).
If a stud/beam cannot be found, use supplied
drywall plastic anchors.
1
2
0.51in
(13mm)
3.0in
(76.1mm)
Use security screws to fasten
the device to back plate.
ProCapture-T & ProRF-T and ZKBioSecurity 3.0 Quick Start Guide
7
7.34in
(186.5mm)
