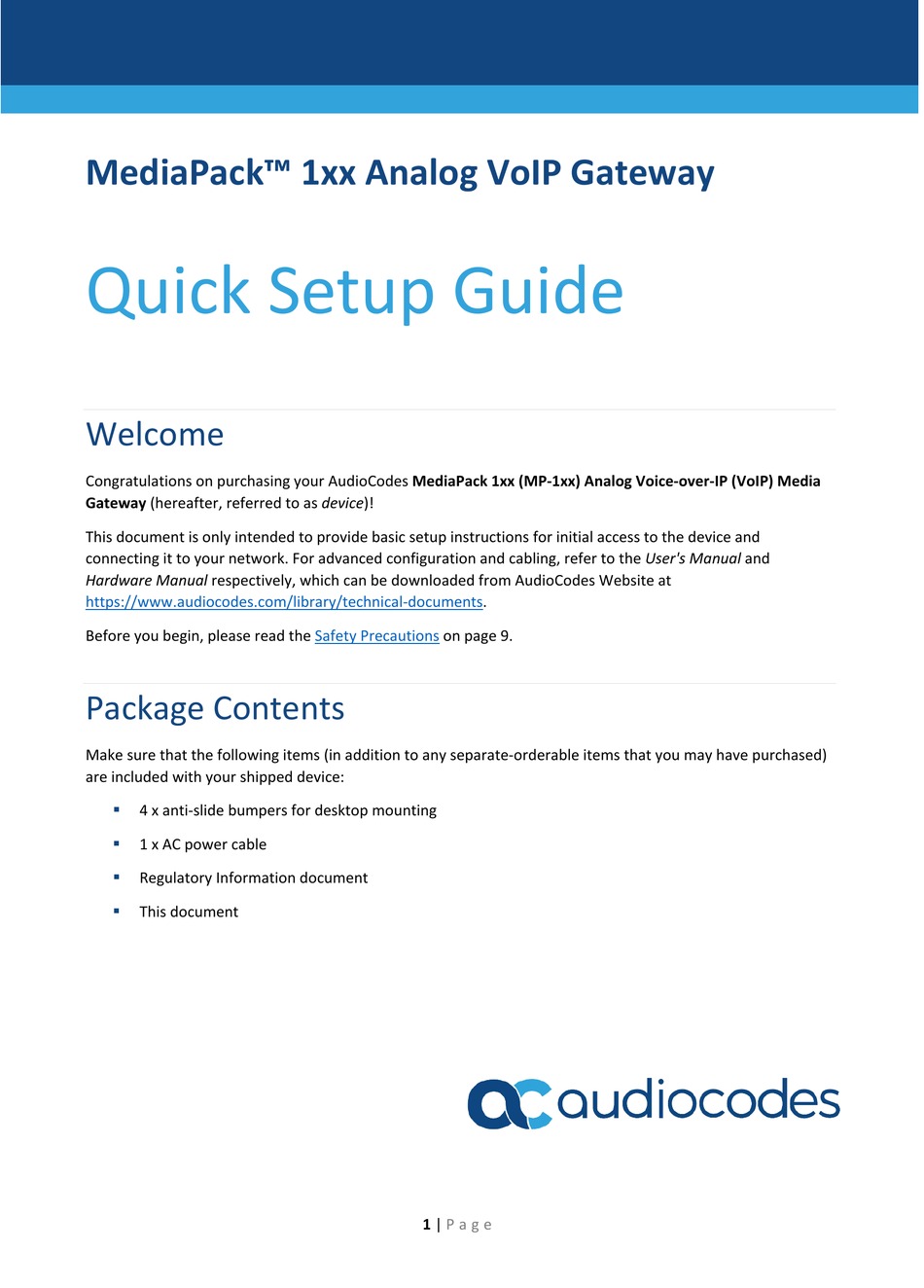

MediaPack™ 1xx Analog VoIP Gateway
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes MediaPack 1xx (MP-1xx) Analog Voice-over-IP (VoIP) Media
Gateway (hereafter, referred to as device)!
This document is only intended to provide basic setup instructions for initial access to the device and
connecting it to your network. For advanced configuration and cabling, refer to the User's Manual and
Hardware Manual respectively, which can be downloaded from AudioCodes Website at
https://www.audiocodes.com/library/technical-documents.
Before you begin, please read the

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are included with your shipped device:
4 x anti-slide bumpers for desktop mounting
1 x AC power cable
Regulatory Information document
This document
Safety Precautions
on page 9.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MediaPack 1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes MediaPack 1 Series

Summary of Contents for AudioCodes MediaPack 1 Series

  • Page 1: Package Contents

    MediaPack™ 1xx Analog VoIP Gateway Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes MediaPack 1xx (MP-1xx) Analog Voice-over-IP (VoIP) Media Gateway (hereafter, referred to as device)! This document is only intended to provide basic setup instructions for initial access to the device and connecting it to your network.

  • Page 2: Physical Description

    Physical Description [The presence and number of FXS and FXO port interfaces depends on ordered MP-1xx model.] 100-240V AC power plug entry. Power LED (located on front panel): Green On Power received by device No power Ready LED (located on front panel): Green On Device is powered up Installing software (.cmp file) or device failure...

  • Page 3: Mounting The Device

    Mounting the Device You can mount the device on a desktop using the four anti-slide bumpers (supplied), which you need to stick in the grooves (shown below) located on the underside of the device. You can also mount the device on a wall or in a standard 19-inch rack. For instructions on wall mounting and 19-inch rack mounting, refer to the Hardware Manual P a g e...
  • Page 4 Power Cabling the Device The device is powered from a standard alternating current (AC) electrical wall outlet, using the supplied power cord. Insert the female connector located on the end of the power cord (supplied) into the device's power socket located on the rear panel. Insert the male plug located on the other end of the power cord into a standard electrical wall outlet.
  • Page 5 Assigning an IP Address to the Device The default IP address depends on your MP-1xx model: FXS-only models and FXS-with-FXO models: 10.1.10.10  FXO-only models: 10.1.10.11  For all MP-1xx models, the default subnet mask is 255.255.0.0 and the Default Gateway IP address is 0.0.0.0. You can change the IP address using any of the following methods: Accessing the device's Web-based management interface from a computer using the default IP address ...
  • Page 6 On your computer, open a standard Web browser (for example, Google Chrome), and then in the URL field, enter the device's default IP address; the Web Login screen appears: Type in the default username (Admin) and password (Admin), and then click Login. Open the IP Settings table (Configuration tab >...
  • Page 7 Open the Maintenance Actions page (Maintenance tab > Maintenance menu > Maintenance Actions), and then click BURN to save your settings to the device's flash memory. This process also causes the device to reset. As you have changed the device's IP address, your connection to the device's management interface through your browser is no longer available.
  • Page 8 ASSIGNING AN IP ADDRESS THROUGH THE VOICE MENU You can change the IP address through the device's interactive voice response (IVR) menu, using touch-tone dialing (DTMF tones) on a standard telephone that is connected to one of the device's FXS ports: Connect a telephone to one of the device's FXS ports.

  • Page 9: Safety Precautions

    For FXS ports, the device provides only Secondary Protection against power surges. In deployments  where the telephone lines are installed outside, you must install AudioCodes’ approved surge protector (Circa model 4B3S-75) as the primary protection against lightning and other over-voltages phenomena which might couple the 2-wire.
  • Page 10 Website: https://www.audiocodes.com/ ©2018 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice and CloudBond are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are property of their respective owners.
