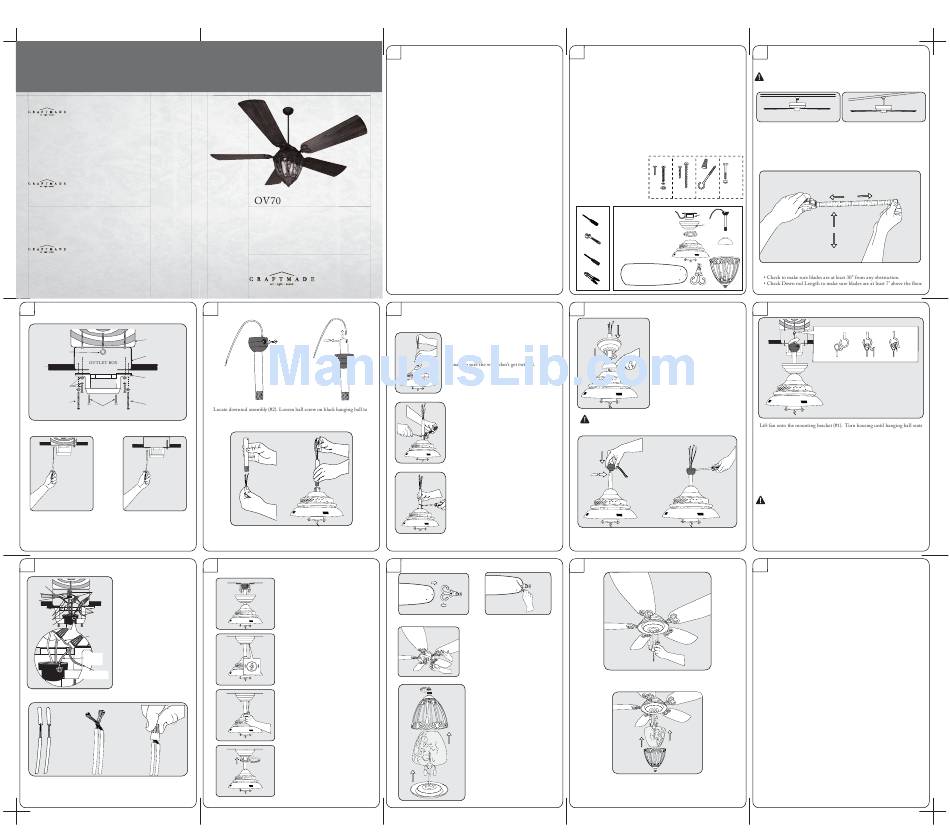

Craftmade OV70 Installation Instructions

P.O. Box 1037
650 S. Royal Lane, Suite 100
Coppell, TX 75019
(800) 486-4892
8:00 To 5:00 CST (Central Standard Time)
Toll Free Fax: (877) 304-1728
email: customerservice@craftmade.com
www.craftmade.com
P. O. Box 1037
650 S. Royal Lane, Suite 100
Coppell, TX 75019 EE.UU.
(800) 486- 4892
8:00 A 5:00 CST (Hora local central)
Número de fax sin cargo: (877) 304-1728
Correo electrónico: customerservice@craftmade.com
www. craftmade.com
P. O. Box 1037
650 S. Royal Lane, Suite 100
Coppell, TX 75019 EE.UU.
de 8 heures à 17 heures (Heure standard du centre)
Numéro de télécopieur gratuit : (877) 304-1728
Email: customerservice@craftmade.com
www. craftmade.com
4
Installing Mounting Bracket
Support Beam
"J" Hook (S8)
Outlet Box (A)
Ceiling
Mounting Bracket (1)
Bracket Screws
& Washers (S3)
Wood Screws (S1)
Wood Screws (S1)
Canopy Screws (S2)
NOTE: Do not mount directly to sheet rock or ceiling tile.
Prior to securing mounting bracket, screw "J" hook (S8) into ceiling outlet box
as a secondary support means. Secure mounting bracket (#1) to the outlet box
(A) by tightening bracket screws & washers (S3) as shown. If not mounting to
an outlet box, use wood screws (S1) and washers (S3) and mount securely to
ceiling beam. Be sure at this point to insert canopy screws (S2) in bracket.
9
Ground
1. Connect fan wires to ceiling
Wire
White (Neutral)
Connectors wires: white fan wire to white
(S6)
outlet wire, black to black and
Black
(Power)
green to green. Wire connectors
(S6) are provided for your conve-
Ground
White (Green)
nience. If an additional blue wire is
Black
present then also connect the blue
Blue
wire to the black wire. (Optional
light kit may be wired to
Outlet Box
Ground (Green)
individual wall switches, if
desired.)
Downrod 2. After connections are made
Ground
with wire connectors, turn splices
(Green)
upward and push carefully into
Mounting Bracket outlet box. Separate blue and black
Ground (Green)
wires on one side of the box, and
white and green wires on the other
side.
There are up to 4 colored wires coming from
the top of the motor (including ground wire).
O l i v i e r C e i l i n g F a n s
Installation Instructions
Instrucciones de instalación
Instructions d'installation
5
Downrod Assembly
free lock pin. Black hanging ball will slide down. Remove ground screw and
green ground wire. Remove hanging ball from downrod and save all parts.
Insert fan wires through downrod.
10
Attach canopy (3) to the mounting bracket
by placing screws (S2) into slot in canopy.
Twist clockwise to lock into place.
Tighten screws firmly.
Seat the canopy screw cover into slots
and twist to lock.
1
Read and Save These Safety Precautions
1. Turn off electricity at main switch before wiring or servicing fan in order to
avoid possible electrical shock.
2. All wiring must be in accordance with the National Electric Code
(ANSI/NFPA70-1999) and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. After making the wire connections, the wires should be spread apart with
the grounded conductor and the equipment-grounding conductor on the
one side of the outlet box and the ungrounded conductor on the other side
of the outlet box.
4. The splices after being made should be turned upward and pushed carefully
up into the outlet box.
5. Conductor of a fan identified as grounded conductor to be connected to
grounded conductor of power supply, conductor of a fan identified
as ungrounded conductor to be connected to an ungrounded conductor of
power supply, conductor of fan identified for equipment grounding to be
connected to an equipment-grounding conductor.
6. Fan should not be mounted in an area where it might get wet.
7. To reduce the risk of fire, electric shock or personal injury, mount to outlet
box marked "Acceptable for Fan Support" and use mounting screws provide
with the outlet box.
8. For safety and best operating results, we recommend that you have a
qualified electrician assemble and install your fan.
9. WARNING: To reduce the risk of fire or electric shock, do not use this fan
with any solid state speed control device.
10. To reduce the risk of personal injury, do not bend the blade brackets when
installing the brackets, balancing the blades or cleaning the fan.
Do not insert foreign objects in between rotating fan blades.
6
Attaching Downrod to Motor Housing
Thread the downrod onto the motor housing
Insert safety bolt (S7) through flange & down-
rod and attach nut. Tighten firmly.
Tighten set screw (A) against downrod.
11
Assemble Blade Arms to Blades using the (S4) Blade Screws.
Slide the blades into place, support
and attach with motor screws.
Disassemble the light kit. First, unscrew
the decorative finial followed by the small
hex nut. Remove rubber washer. Next
carefully lift the light kit cage from the
fitter base. Now carefully remove the light
kit glass and set in a safe place until later.
2
Before Assembly
1. Make sure that the fan voltage (120) is compatible with your own electrical
system.
2. Check to make sure that your carton contains all the parts mentioned in the
parts list.
NOTE: The box can be used as a work space to prevent any damage on the
ornamental surface.
CAUTION: Before installing, choose a location for mounting the fan where
the blades have at least 7 feet of clearance from all objects and floor. Mount an
outlet box to the ceiling or use an existing box
CAUTION: Do not mount fan to sheet rock or drywall type materials. To
insure proper support, use the two #1 wood screws to secure mounting bracket
to joist or beam. If the location you choose does not have a suitable support
beam, install a 2"x 4" brace between ceiling joists to support.
Screw Package Quantity
Hardware
S1. Wood Screws & Washers 2
Inventory
S2. Screws (for Canopy)
3
S3. Bracket Screws & Washers
2 S5
S4. Blade Screws
S4
S2
S5. Wire Connectors 3
S6
S6. Safety Bolt & Nut 1
S7. "J" Hook 1
S3 S1 S7
S8. Zip Tie 1
Tools you Need What You Have
1
Parts Quantity
2
1. Mounting Bracket
1
3
2. Down Rod Assembly
1
1. Phillips Screwdriver 4" Rod Supplied
3. Canopy
1
4. Flange Cover 1
4
5. Fan Housing & Motor 1
6. Light Kit with Glass 1
5
3. Adjustable Wrench 7. Blades Arms 4
8. Blades 4
(Sold Separately) 6
2. Flat Screwdriver
7
8
4. Wire Strippers
7
Place flange cover (4) over downrod
assembly. Attach antenna wire to flange
cover. Place canopy screw cover over
downrod. Place canopy (3) over
downrod (2).
WARNING: Failure to completely tighten downrod as described in
steps above could result in the fan loosening and possibly falling.
Replace hanging ball, insert hanging pin through downrod and tighten set
screw "C" in hanging ball into downrod.
12
Screw in candelabra light bulbs. (included)
Attach light kit fitter using the 3 screws (Supplied).
Reattach the light kit glass, light kit cage,
rubber washer, small hex nut and
decorative finial.
3
Turn off circuit breakers and wall switch to the fan supply line leads.
Important: When using an existing outlet box, be sure the box is
Preparation
securely attached to the building structure and can support the full
weight of the fan. Failure to do so can result in serious injury or death.
a.) Downrod Mount b.) Angle Mount
(Normal Ceilings) (Vaulted Ceilings)
IMPORTANT: If using the angle mount method, check to make sure the ceiling angle is
not steeper than 35º. Angles greater than 35º will require a 45º angle adapter.
30"
84"
8
itself into ball socket (listen for click).
For added security, attach safety cable from fan unit to "J" hook (S8) in
outlet box. Secure by looping zip tie (S9) through safety cable and "J" hook.
Tighten zip tie securely.
WARNING: To reduce the risk of fire, electric shock or personal injury,
mount so outlet box marked "acceptable for fan support" and use mount-
ing screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
13
Trouble Shooting
Problem A: Fan Will not Start
Solutions:
1. Check fuse or circuit breaker and replace if necessary
2. Turn off electrical power and check all wire connectors.
3. Check on/off TCS and wall control selector switch. See operation
instructions.
Problem B: Fan is Excessively Noisy
Solutions:
1. Check that all screws in fan assembly are tight and properly seated.
2. Check to make sure mounting bracket is installed properly.
3. Check to make sure light kit and glass reinstalled properly and
tight.
4. If wall control is used, insure the wall control is not a transformer
or a variable speed type.
Problem C: Fan Wobbles
Solutions:
1. Check that all blades are screwed firmly into blade holders.
2. Check that all blade holders are screwed firmly into motor.
3. Check the weight of blades. All our blades are weighed on
electronic scales. The weight is marked on the reverse side of the
fan blade near the motor end. All of the blades should be the same
weight to prevent fan from wobbling.
4. A balancing kit is enclosed if needed.
