Installation Guide
100BASE-FX Multimode-Single mode
Media Converter
KC-220FF SERIES
DOC. 010430-KC220FF-K Rev.1.0
P/N: 750-0155-001

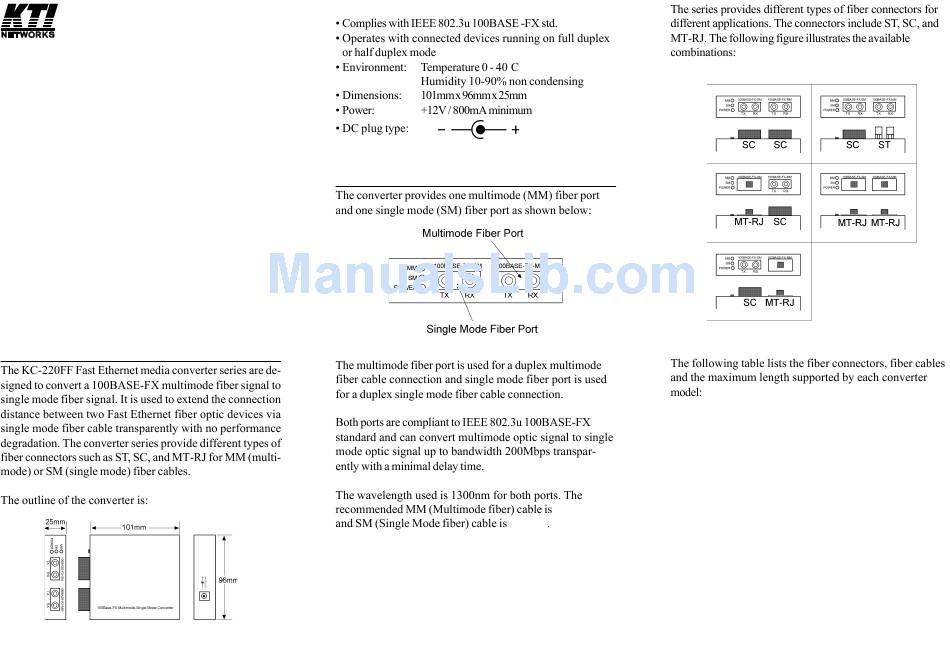

General Description
Specifications
o
Connectors & Cables
9/125mm
Model
KC-220FF-TSA
KC-220FF-TS3
KC-220FF-TS5
KC-220FF-CSA
KC-220FF-CS3
KC-220FF-CS5
62.5/125mm
KC-220FF-CJ
KC-220FF-JJ
KC-220FF-JSA
* MM Port : the maximum MM cable length is 2K meters.
* SM Cable length : the maximum length in point-to-point full
duplex operation
MM Port* SM Port SM Cable Length*
ST
SC
15Km
ST
SC
30Km
ST
SC
50Km
SC
SC
15Km
SC
SC
30Km
SC
SC
50Km
SC
MT-RJ
15Km
MT-RJ
MT-RJ
15Km
MT-RJ
SC
15Km
