Rossmax RA500 Instruction Manual

RA500
Model:
EN
Instruction Manual
www.qutie-rossmax.com
Please read the instruction manual carefully before using
the product and be sure to keep this manual.
RA500 Infrared Ear Thermometer
The Rossmax Infrared Ear thermometer has been carefully de-
veloped for accurate, safe and fast temperature measurements
in the ear.
It is a non-invasive ear thermometer using an infrared detector
to detect body temperature from the auditory canal for adult
and child.
• The quality of the infrared ear thermometer has been verified
and conforms to the provisions of the EC council directive 93/42/
EEC(Medical Device Directive) Annex I essential requirements and
applied harmonized standards. EN 12470-5: 2003 Clinical ther-
mometers-Part 5: Performance of infrared ear thermometers (with
maximum device.)
• This thermometer converts the ear temperature to display its "oral
equivalent." (according to the result of the clinical evaluation)

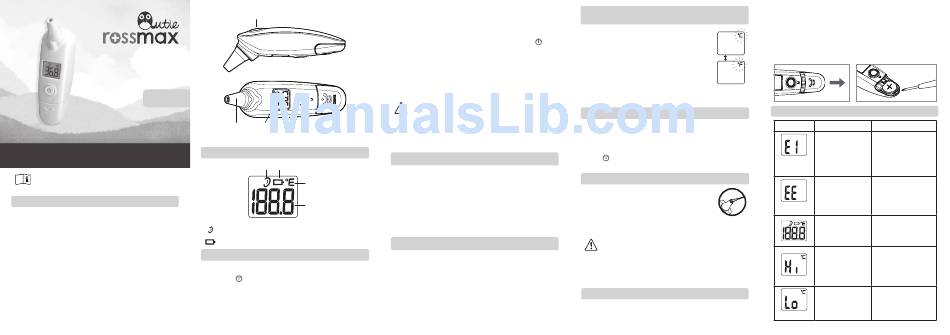

Start button
Battery
Probe LCD ON/OFF/Memory
cover
display button
LCD dislpay
Ear Battery
°C/°F unit
Temperature
display
• It means measurable.
• When battery icon appears, please replace the battery.

How to use the RA500 Infrared Ear Thermometer

1. To achieve accurate readings, make sure the ear canal is clean.
2. Press the "On/Off/Memory" button. The thermometer is
ready for use after the ear icon is flashing and two beeps are
sounded.
3. Gently pull the ear back to straighten the ear canal and snugly
position the probe into the ear canal, aiming towards the
membrane of the eardrum to obtain an accurate reading.
4. Measuring the ear temperature: Use the index finger to trig-
ger. Press "Start" button, a long beep will be sounded when
measurement is done.
5. Power Off: Device will automatically shut off if left idle for
more than 1 minute to extend buttery life. Or press "On/
Off/Memory" button for at least 3 seconds to turn the device
off.
6. Fever alarm: the measuring temperature is higher than
37.5°C(99.5°F), the display will flashing and 4 short beeps
will be sounded. The measuring temperature is higher than
42.2°C(108.0°F), the display will show "Hi"and 4 short beep
will be sounded.
a. It is recommended that you measure 3 times with the
same ear. If the 3 measurements are different, select the
highest temperature.
b. To avoid the risk of cross contamination, please clean
the probe according to "Clean and Storage" section
after each use.

Scanning Mode

If you continuously obtain different measurement results, it is
recommended that you use Scanning Mode to measure.
Measuring the ear temperature: Use the index finger to trig-
ger, press and hold the "Start" button for 3 seconds to take
measurement. During the measuring process, gently pivoting
the probe side-to-side to view the entire ear canal or in order to
find the highest temperature. Release the "Start" button when
hearing a long beep sound and the measurement is completed.

Enabling or disabling the beep sound

1. Turn off the device.
2. Hold down the "Start" button, then press and hold the"ON/
OFF/Memory" button until the LCD shows °C.
3. Press the "ON/OFF/Memory" change beep sound from on to
off, then release the "ON/OFF/Memory" button.
4. After 6 seconds without changing, the beep On/Off setting
will be completed, and the unit will be entered into the meas-
urement mode.
Switching between temperature scale
Fahrenheit and Celsius
To change the Unit from °C to °F:
1. Turn off the device.
2. Hold down the "Start" button, then press and hold
the"ON/OFF/Memory" button until the LCD shows °C.
3. Press the "Start" to change the °C to °F, then release
the "Start" button.
4. During the setting adjustment, each old or new tem-
perature scale setting will be flashing for 6 seconds.
After 6 seconds without changing, the temperature
scale adjustment will be completed, and the unit will
be entered into measurement mode.

Memory function

There are total 9 set memories for body measurement. If the
reading of the thermometers is within the normal temperature
range of 34 °C to 42.2 °C (93.2 °F to 108°F ), when the meas-
urement is done, the measurement data is saved into memory.
• Press "On/Off/Memory" button again to see the tempera-
ture stored.

Cleaning and storage

The probe is the most delicate part of the ther-
mometer. Use with care when cleaning the lens to
avoid damage.
1. Please use the cotton swab with the Alcohol to
clean the lens (on the inside of the probe).
2. Allow the probe to fully dry for at least 5 minutes.
a. Please check the device if it falls and damages. If you
can't make sure of it, please send the complete device
to the nearest retailer for recalibration.
b. Keep the unit dry and away from any liquid and direct
sunlight. The probe should not be submerging into
liquids.

Change the battery

1. This thermometer is supplied with one lithium cell (CR2032).
2. Turn off the thermometer before replace the battery.
3. Open the battery cover: Hold the device and flip the battery
out with a small screwdriver.
4. Insert the new battery and press the right side of the battery
down until you hear a click.
5. Place back the battery cover.
* The positive (+) side up and the negative (-) side pointed down.

Troubleshooting

Error message Problem Solution
The ambient Allow the thermometer
temperature is not to rest in a room for
within the range be- at least 30 minutes
tween 10°C~40°C at room temperature:
bi-bi-bi
(50°F~104°F) 10°C to 40°C (50°F to
104°F)
The system is Unload the battery,
not functioning wait for 1 minute and
properly. re-power it. If the mes-
sage reappears, contact
bi-bi-bi
the retailer for service.
Device can not be Change with a new
powered on to the battery. If the message
ready stage. reappears, contact the
retailer for service.
Temperature Ensure no break or dirt
taken is higher than of the probe cover and
take a new temperature
42.2°C (108.0°F)
measurement.
bi-bi-bi-bi
Temperature taken Make sure the probe
is lower than 34°C cover is clean and take
(93.2°F) a new temperature
measurement.
bi-bi-bi-bi
