Microchip Technology MPLAB REAL ICE In-Circuit Emulator Setup page 2

®
MPLAB
Emulator Pod
ACTIVE
STATUS
FUNCTION RESET
External Triggers
or Trace
Standard
Driver Board
PIC32MX Trace Interface
Emulator Pod
Debug/Programmer Interface
Trace
Adapter
logic probe connector

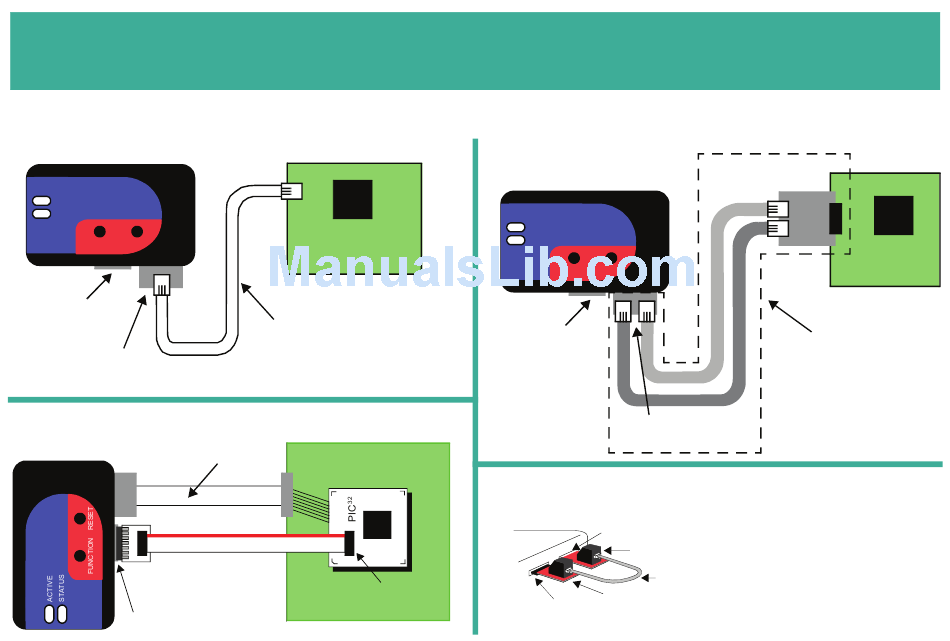

REAL ICE™ In-Circuit Emulator Setup
for PIC32MX Devices
Standard Communication
PIC32MX PIM
Target Board
Debug/Programmer Interface
PIM
trace cable
trace port
Target Board
OR
High-Speed Communication
Emulator Pod
ACTIVE
STATUS
FUNCTION RESET
J2 J3
External Triggers
or Trace
High-Speed
Driver Board
Loop-Back Test
Driver Board Slot
Emulator
Standard Driver Board
Pod
Loop-Back Test Board
Logic Probe Connector
Performance Pak
High-Speed
Receiver Board
J3
J2
Target Board
Debug/Programmer Interface
To verify that the emulator is function-
ing properly, use the loop-back test
board. Disconnect the emulator from
the target and PC, plug in the stan-
dard driver board and loop-back test
board as shown, reconnect the emu-
Modular Cable
lator to the PC, and select the emula-
tor as in "Software Setup", Step 3, on
the front of these instructions to
automatically run the loop-back test.
PIC32MX PIM
