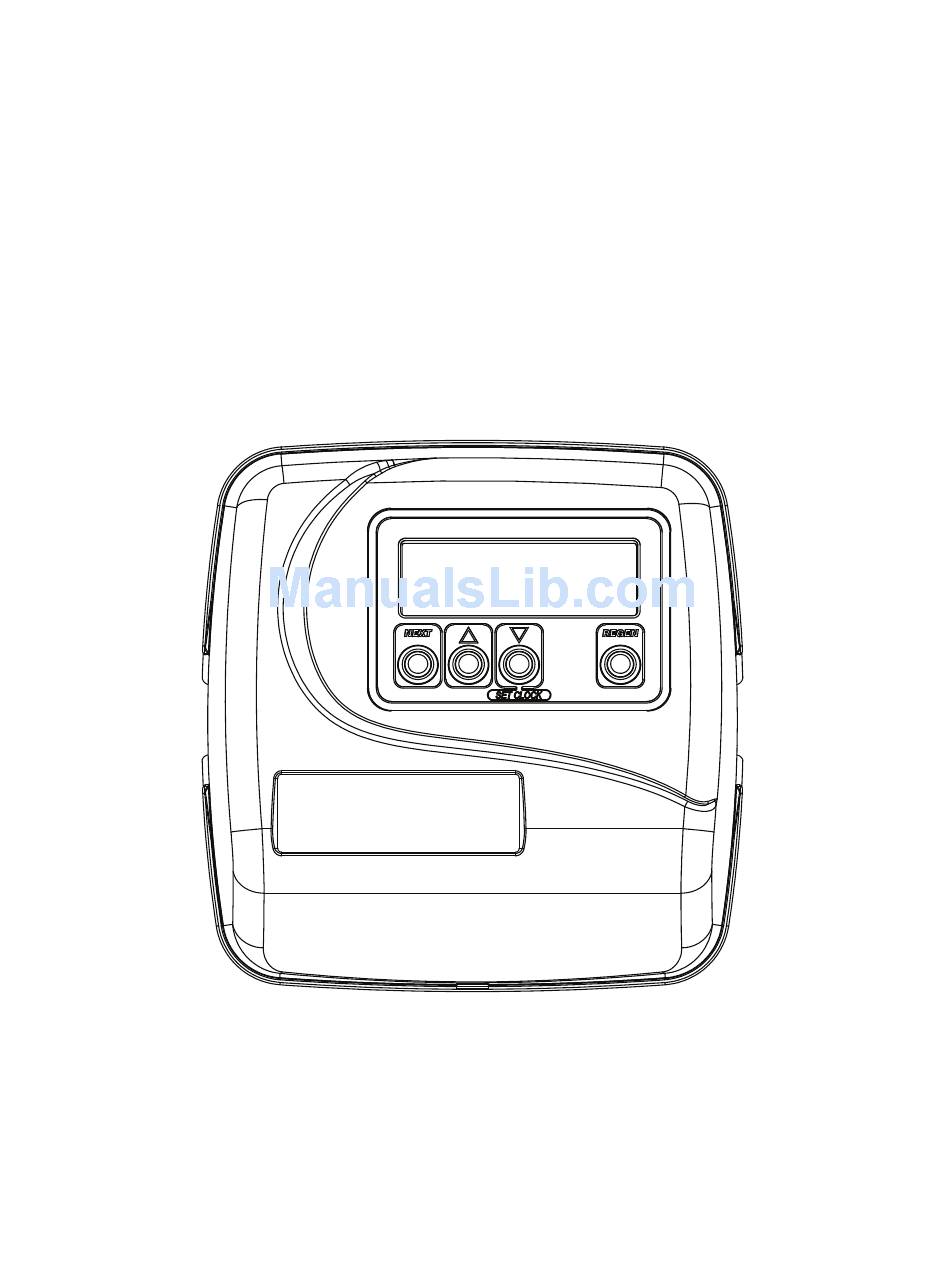

- Page 1 Water Specialist EE Control Valve Programming and Cover Drawing Manual...
- Page 2 Page 2 EE Man u al...
-
Page 3: Table Of Contents
EE Man u al Page 3 Table of Contents EE Front Cover and Drive Assembly ..........................4 Regeneration and Error Screens, Button Operations and Functions ................... 5 User Displays ..................................6 Confi guration Settings ................................ 7 OEM Softener System Setup ............................11 Setting Options Table ................................ -
Page 4: Ee Front Cover And Drive Assembly
Description Quantity V3175EE-01 WS1EE FRONT COVER ASSEMBLY V3107-01 WS1 MOTOR V3002-A WS1 DRIVE BRACKET ASY V3408EE-04BOARD WS1THRU/2 EE PCB 5 DIGIT REPL V3110 WS1 DRIVE GEAR 12X36 V3109 WS1 DRIVE GEAR COVER V3106-01 WS1 DRIVE BRACKET & SPRING CLIP V3186-05... -
Page 5: Regeneration And Error Screens, Button Operations And Functions
EE Man u al Page 5 Regeneration and Error Screens Regen Screen Displays the time remaining in the current cycle. Pressing REGEN advances to the next cycle. Error Screen Alternated fl ashing Err and error code every 3 seconds. Clear by disconnecting the power supply at the PC board and reconnecting, or press NEXT and REGEN simultaneously for 3 seconds. -
Page 6: User Displays
Page 6 EE Man u al User Displays When the system is operating, one of fi ve displays may be shown. Pressing NEXT will General Operation alternate between the displays shown below. User 1 Typical user display. Shows volume remaining to regeneration. This screen will not be viewed if the control is set for time-clock operation. -
Page 7: Confi Guration Settings
EE Man u al Page 7 Confi guration Settings Step 1CS – Press NEXT and ▼ simultaneously for 5 seconds and release. Press NEXT and ▼ Step 1CS simultaneously for 5 seconds and release. If the screen in Step 2CS does not appear, the lock on the valve is activated. - Page 8 Page 8 EE Man u al Step 5CS 1.0T Step 5CS – This display will not appear if was selected in Step 2CS. Allows selection of one of the following using ▲ or ▼: • the Control Valve to have no hard water bypass;...
- Page 9 EE Man u al Page 9 WS1, WS1.25 and WS1.5 Valves For Clack Corporation alternator systems using WS1, WS1.25 and WS1.5 valves there will be an option to delay the last two cycles of regeneration (only “Rinse” and “Fill”). This feature splits the regeneration into two portions.
- Page 10 Page 10 EE Man u al Confi guring the Control Valve for System Controller Operation: Select “SYS” to link control valve to System Controller. For communication between control valve and System Controller, a three-wire communication cable is required. Selection requires that a connection to a Clack No Hard Water Bypass (V3070FF or V3070FM) be made to the two-pin connector labeled MAV located on the printed circuit board for WS1 and WS1.25 control...
-
Page 11: Oem Softener System Setup
EE Man u al Page 11 OEM Softener System Setup Step 1S - Press NEXT and ▼ simultaneously for 5 seconds and release. If screen in Step 2S does not Step 1S appear, the lock on valve programming has been activated. To unlock press ▼, NEXT, ▲, REGEN in sequence, then press NEXT and ▼... - Page 12 Page 12 EE Man u al Step 9S – Select the pounds for the fi fth cycle using ▲ or ▼. For valve types 1.5 and 2.0, “oFF” is also Step 9S available. NOTE: if Step 2CS is set to 2.0 or Step 7CS is set to MIN, Fill will be in minutes.
- Page 13 EE Man u al Page 13 Step 15S – Set Relay Actuation Time or Gallons using ▲ or ▼. The choices are: Step 15S • Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior to activating the relay.
-
Page 14: Setting Options Table
Page 14 EE Man u al Setting Options Table Filters should only use shaded options Volume Regeneration Time Result Capacity Option Override Reserve capacity automatically estimated. AUTO NORMAL Regeneration occurs when volume capacity falls below the reserve capacity at the next Regen Set Time. -
Page 15: Oem Filter System Setup
EE Man u al Page 15 OEM Filter System Setup Cycle Sequence, Adjustable Default Times (minutes) Type Backwash Draw Backwash Rinse Backwash* Fill Filtering Backwash Filtering Regen 0:30 .95 GAL Filtering Regen (2.0”) 0:30 *Cycle is non-adjustable, not shown in cycle sequence programming. - Page 16 Page 16 EE Man u al Step 7F – Set Regeneration Time Options using ▲ or ▼. NOTE: This step will not appear if Step 5F is set Step 7F to oFF or Step 5CS is set to “SYS”. If value is set to: •...
-
Page 17: Installer Display Settings - Regeneration Type Auto
EE Man u al Page 17 Installer Display Settings - Regeneration Type Auto Step 1I - To enter Installer Display press NEXT and ▲ simultaneously for about 5 seconds and release. Step 1I Step 2I – Hardness: Set the amount of infl uent hardness using ▲ or ▼. This display will not be viewed Step 2I if FILTERING BACKWASH or FILTERING REGEN is selected in Step 2F or if “oFF”... -
Page 18: Installer Display Settings - 28 Day Regeneration
Page 18 EE Man u al Installer Display Settings - 28 Day Regeneration Step 1I - To enter Installer Display press NEXT and ▲ simultaneously for about 5 seconds and release. Step 1I Step 2I – Day Override: When volume capacity is set to “oFF”, sets the number of days between Step 2I regenerations. -
Page 19: Installer Display Settings - 7 Day Regeneration
EE Man u al Page 19 Installer Display Settings - 7 Day Regeneration Step 1I - To enter Installer Display press NEXT and ▲ simultaneously for about 5 seconds and release. Step 1I Step 2I – Use ▲ or ▼ to set the current day of the week. -
Page 20: Diagnostics
Page 20 EE Man u al Diagnostics Step 1D - Press ▲ and ▼ simultaneously for 5 seconds and release. If screen in Step 2D does not appear Step 1D the lock on the valve is activated. To unlock press ▼, NEXT, ▲, REGEN in sequence, then press ▲ and ▼... - Page 21 EE Man u al Page 21 Step 9D – Volume, reserve capacity used for last 7 days: If the valve is Step 9D set up as a softener, a meter is installed, and Set Volume Capacity is set to “Auto,” this display shows day 0 (for today) and fl ashes the reserve capacity.
- Page 22 Page 22 EE Man u al...
- Page 23 EE Man u al Page 23...
-
Page 24: Revision History
Page 24 EE Man u al Revision History: 12/9/2016 PAGE 19: Step 10D – Updated display 1/16/2017 PAGE 12: Step 12S - Added 28 day and 7 day programming PAGE 14: Reserve capacity not automatically estimated. NORMAL 28 day - Regeneration occurs at the next Regen Set Time when the specifi ed number of...
