Section I General Information

1.1 Introduction
The PM1000II, is a panel mounted, 4-
place monaural intercom system (ICS). Please
read this manual completely before installation
to minimize the risk of damage to the unit and
to become familiar with all the features.

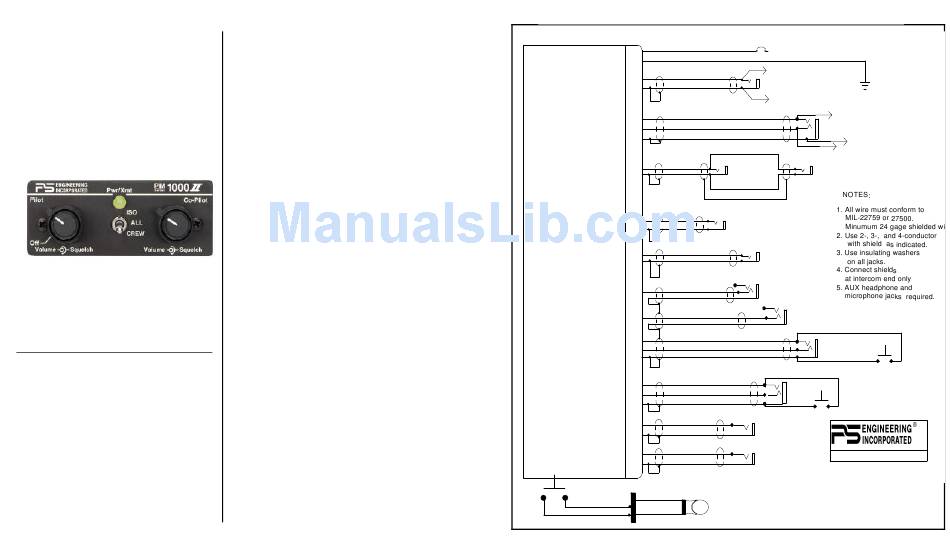

PM1000II, p/n 11908, Front Panel
1.2 Scope
This manual contains installation and op-
erational instructions for the following PS En-
gineering units:
Part Number Description
11906 w/Pilot ISO and Internal Recorder System (IRS)
11908 Same as above w/internal crew function
11909 Push to talk intercom for use in noisy cockpits
1.3 Description
The PM1000II is a 4-place, panel mounted
intercom with individual volume and squelch
controls for the pilot and copilot. The copilot's
squelch control adjusts the trip level of the copi-
lot and passengers.
A front panel mode switch allows the pilot
to select multiple intercom configurations:
"ISO" mode isolates the pilot from the in-
PM1000II Specialty Intercom Manual
tercom and connects to the aircraft radio. The
passengers can continue to communicate with
each other and listen to entertainment without
distracting the pilot. They do not hear radio com-
munications.
"ALL" mode places all headsets on a party
line. Each one hears aircraft radio, entertainment
and can use the intercom.
"CREW" (11908 only) allows the pilot and
copilot positions to hear the aircraft radios and
use the intercom, while the rear passengers can
have their own intercom conversation without
disturbing the crew. This also activates music 2
input.
The PM1000II has an automatic fail-safe
interconnect to the aircraft radio. If power to the
intercom is disrupted, an internal relay will con-
nect the pilot's headset to the aircraft radio. This
allows continuous radio communications. Note:
The copilot will no longer hear aircraft radio
when power is removed.
The 2-color LED shows green when power is
on and red during radio transmissions. This
functions as a stuck mic indicator.
An auxiliary input is provided, allowing the
pilot, copilot and passengers the option to listen
to music during flight. During intercom or air-
craft radio activity, this music is automatically
muted to allow communications without distrac-
tion. When the activity ceases, the Soft Mute cir-
cuit will gradually return the music to the origi-
nal listening volume.
The "ISO" mode provides uninterrupted air-
craft radio communications for the Pilot. Because
the pilot's intercom volume control does not af-
fect the aircraft radio volume, it is possible to
select various balances of volume level between
the ICS and the aircraft radio while in the ALL
mode. Reducing the intercom volume, the pilot
Page 2 January 2002
PM1000II
11920 Sub-D DB-25 Female (Sockets) on unit
14
Power In
Ground 1
A/C Radio Phone Audio Hi
17
A/C Radio Phone Audio Lo
4
12
Aircraft Radio PTT
Aircraft Mic Audio Hi 25
Aircraft Mic Audio Lo
13
Pass 1 & 2 Phones Hi 15
Pass 1& 2 Phones Lo
2
Copilot Phones Hi 19
Copilot Phones Lo
6
18
Pilot Phone Audio Hi
5
Pilot Phone Audio Lo
Pass 1 Mic Audio Hi
9
Pass 1 Mic Audio Lo
Pass 2 Mic Audio Hi
8
Pass 2 Mic Audio Lo
22
Copilot Mic PTT
21
Copilot Mic Audio Hi
Mic Audio Lo
10
24
Pilot Mic PTT
Pilot Mic Audio Hi
23
Pilot Mic Audio Lo
11
Music Input 1 Hi
20
Music Input 1 Lo
7
Music Input 2 Hi 16
Music Input 2 Lo
3
3.5 mm plug
January 2002
With Crew p/n 11908
1A
11-33 VDC
To Aircraft Radio
Phone Hi
AUX Headphone Jack
To Aircraft Radio
Phone Low
Aircraft Radio PTT
Aux Mic Jack
To Aircraft Radio Mic Audio Lo
To A/C Radio Mic Audio Hi
Passenger 1 Passenger 2
Phones Phones
Copilot Headphone Jack
Pilot Headphone Jack
no connection
Pass 1 Mic
no connection
Pass 2 Mic
Copilot Mic Jack
Copilot PTT
Pilot Mic
Jack
Pilot PTT
Music Jack 1
9800 MARTEL ROAD, LENOIR CITY TN 37922
TITLE:
PM1000II (11908) with CREW and IRS
Music Jack 2
IRS Playback Schematic (Section 2.2.4)
Page 11 200-124-0100
