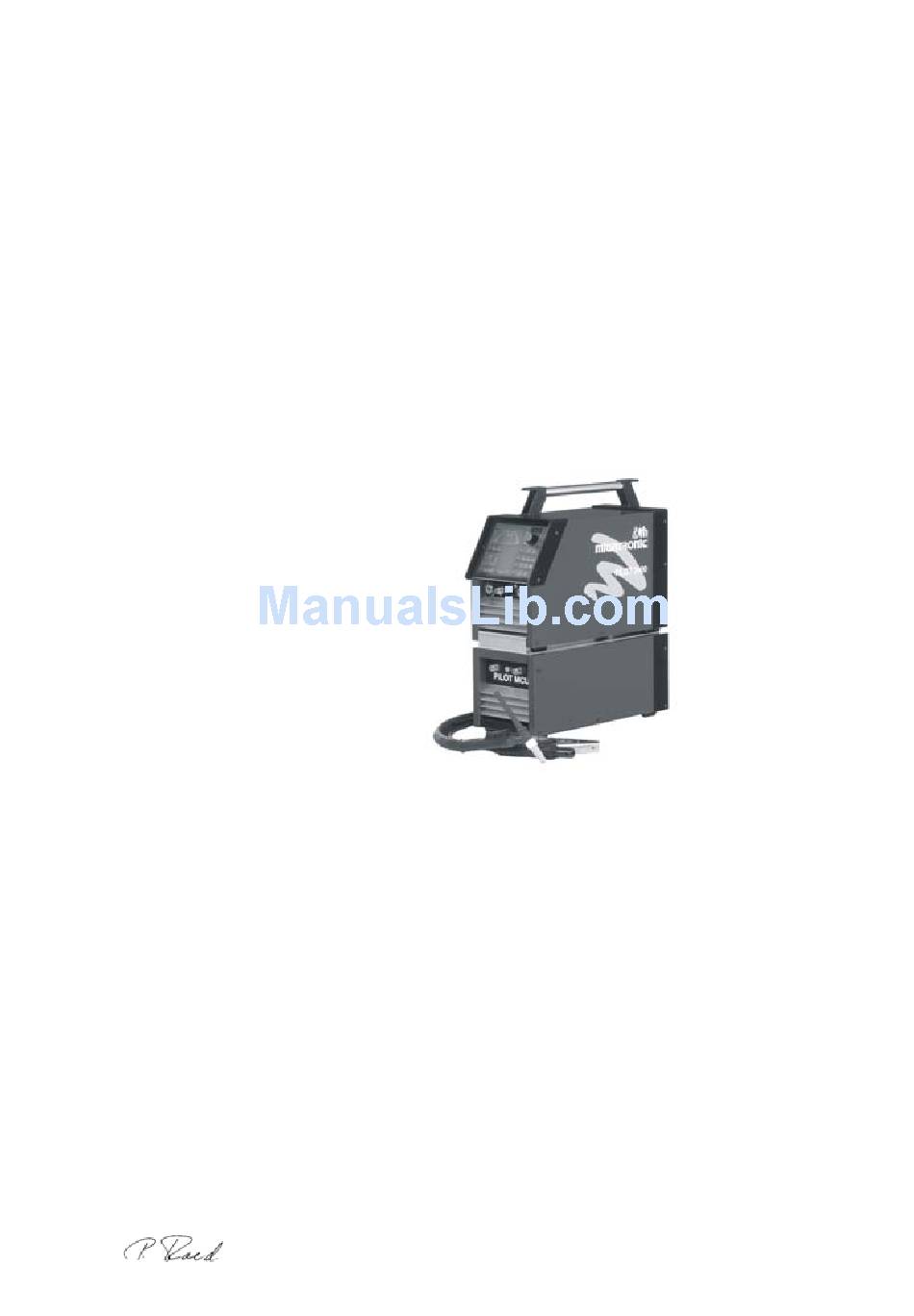

  • Page 1 MIGATRONIC A/S Aggersundvej 33 9690 Fjerritslev Denmark hereby declare that our machines as stated below Type: PILOT 1800/2400 as of: week 40, 2001 conforms to directives 73/23/EEC and 89/336/EEC. European Standards: EN60974-1 EN50199 Issued in Fjerritslev on 1st October 2001.
  • Page 2 ENGLISH WARNING Arc welding and cutting can be dangerous to the user, people working nearby, and the surroundings if the equipment is handled or used incorrectly. Therefore, the equipment must only be used under the strict observance of all relevant safety instructions. In particular, your attention is drawn to the following: Electricity - The welding equipment must be installed according to safety regulations and by a properly trained and qualified person.

  • Page 3: Machine Programme

    MACHINE PROGRAMME PILOT 1800/2400 is a line of portable welding External adjustment machines, especially designed for welding where Remote control and foot control units can be de- weight and dimensions have to be small. livered to PILOT machines with connection for external adjustment.

  • Page 4: Initial Operation

    INITIAL OPERATION Mains connection Connection of external adjustment PILOT 1800/2400 must be connected to a mains Connect the remote control unit on the rear of the supply with 3 phases and protection earthing. After machine on the circulary 8-poled plug (9).

  • Page 5: Maintenance

    1:3 which provides an anti-freeze solution up to -10 Calibration The machine has been calibrated from the factory. The certificate is valid for one year. If maintenance of the calibration is requested, please contact the MIGATRONIC service department for drawing up a contract.

  • Page 6: Initial Instructions

    INITIAL INSTRUCTIONS All "parameters" are set by the use of only one During pulse welding an average welding current is control knob. These parameters include current, automatically shown when shifting between welding pulse time, slope-up time, etc. current and base current becomes faster than possible viewing.
  • Page 7 Torch adjustment TIG welding has been selected. Current setting to be by means of the current control knob located in the handle of a Migatronic Function of the torch trigger dialog torch, if a dialog torch is used. The maximum...
  • Page 8 The arc will extinguish after the period of slope- process then continues in normal fashion. down time. The torch is held at the welding spot until after the period of gas post-flow time in order to protect the welding spot against oxidation.
  • Page 9 However, after slope-down the machine does not switch directly to post-flow but to pilot arc again. It is now possible to continue with a new welding pro- cess by a lengthy activation of the torch trigger (> 0.3 seconds), or to extinguish the pilot arc by a brief activation (<...
  • Page 10 Reduced current Parameters for MMA welding and TIG spot welding When four-times welding a reduced current is activated by pressing the trigger briefly. This re- Parameters can be both selected duced current is set to a percentage value of the and adjusted during welding.
  • Page 11 "maintenance". Turn on the machine again establishing the arc if the machine has been when a free passage has been established. Welding mounted with a cooling module and a Migatronic can then be continued. water-cooled torch. Cooling continues until 2½ min.

  • Page 12: Technical Data

    TECHNICAL DATA Power source: PILOT 1800 PILOT 2400 Mains voltage 3x400 V ±15% 3x400 V ±15% Fuse 10 A 16 A Consumption max. 5,76 kW 8,64 kW Efficiency 0,85 0,85 Permitted load: - 35% duty cycle (40°C) 180 A 240 A - 60% duty cycle (40°C)
