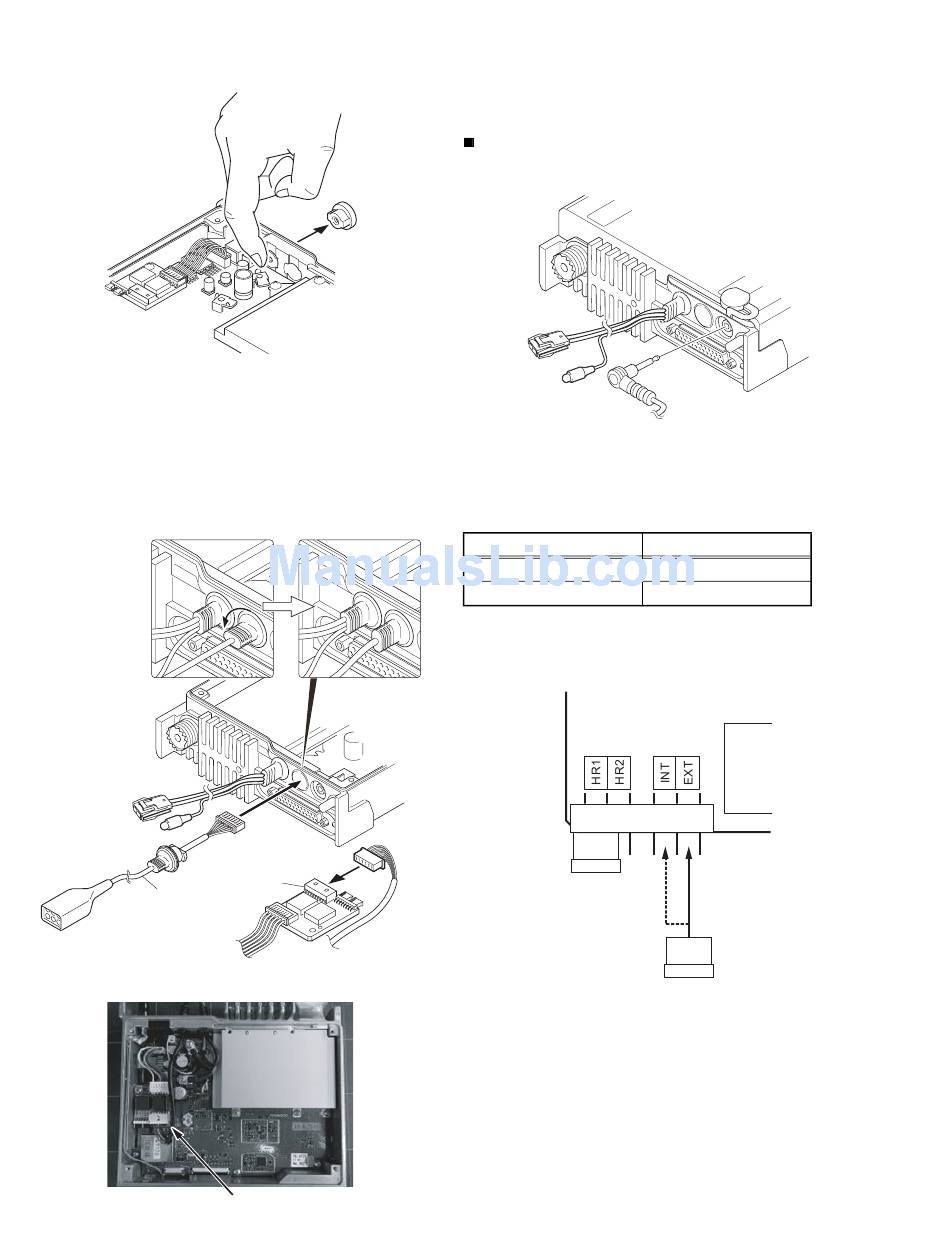

(6) Remove the cap on the rear of the chassis by pushing it
from the inside with your finger. <4>
(7) Pass the 6-pin connector of the cable (E37-1113-25)
through the chassis hole <5> and insert the bush into the
shassis hole.
(8) Rotate the bush of the cable 90 degrees counterclockwise
as viewed from the rear of the chassis. <6>
(9) Insert the 6-pin connector of the cable into the connector
(CN2) of the KAP-2 relay unit. <7>
Note:
You must setup using the KPG-D1/D1N.
E37-1113-25
(10) Form the KAP-2 cable as shown in the figure.
1-12 (No.RA017<Rev.002>)
<4>
Fig.2-3
<6> <6> <6>
<5>
CN2
<7>
Fig.2-4
KAP-2 cable
2.3.3 External Speaker (Option)
2.3.3.1 KES-3
The KES-3 is an external speaker for the 3.5-mm-diameter
speaker jack.
Connection Procedure
Connect the KES-3 to the 3.5-mm-diameter speaker jack on
the rear of the transceiver.
2.3.3.2

KES-5

External speaker KES-5 can be installed for KAP-2. If KES-5 is
installed, it can be set by changing the CN1 short pin from pins 4
and 5 to pins 5 and 6 on the KAP-2.
KAP-2 CN1 Connect
4-5
5-6
When you use the KES-5, plug the short pin to pins 5 and 6 on
the KAP-2.
When you use the INT. SP or KES-3, plug the short pin to pins 4
and 5 on the KAP-2.
KAP-2 unit
1 CN1
INT. SP
or
KES-3
Fig.3-1
Set Up
INT. SP or KES-3
KES-5
6
KES-5
Short pin
Fig.3-2
