Finding the Batch Number

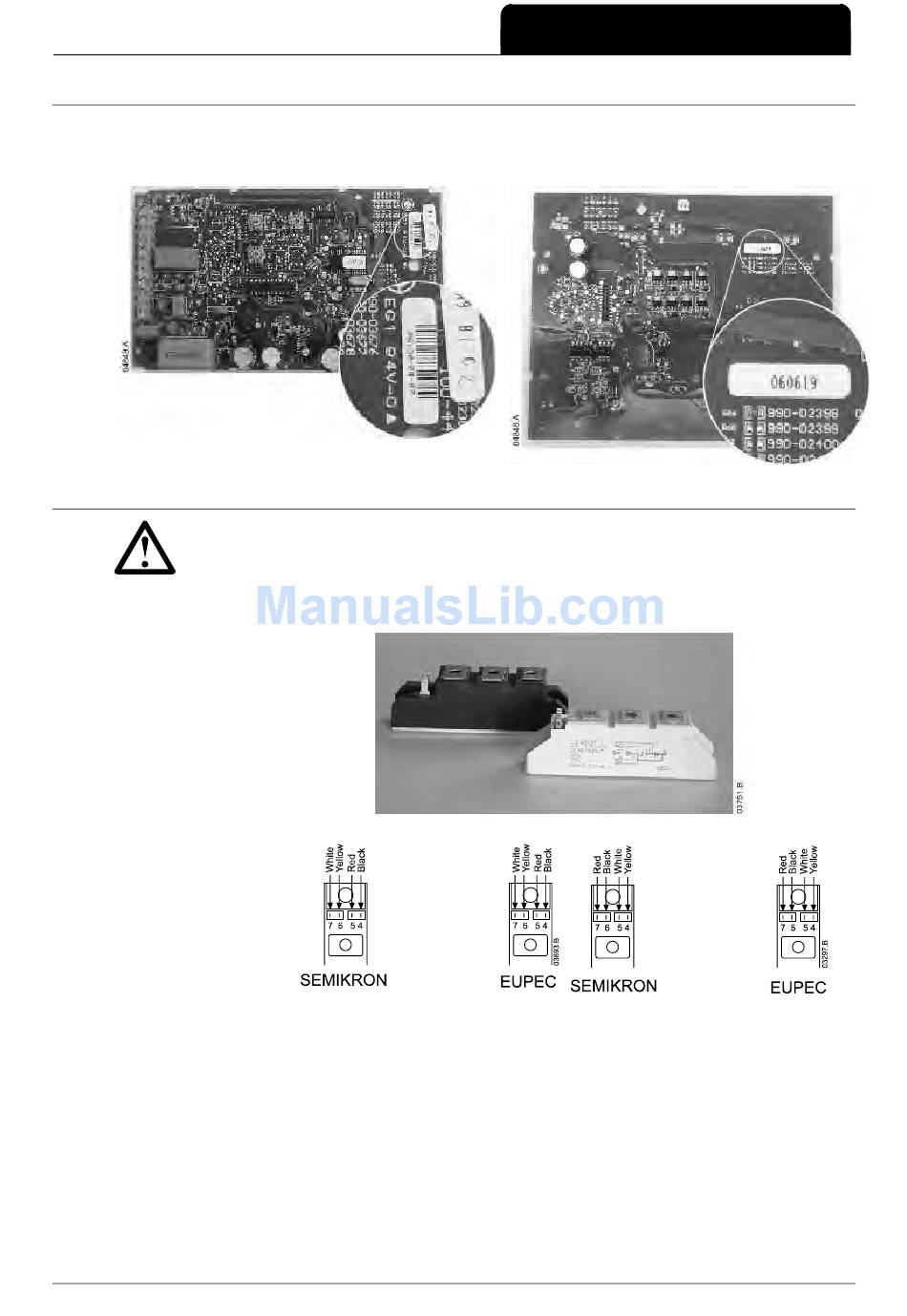

The soft starter's batch number can be identified from a label on each PCB.
For boards with a barcode, the batch number is on the
barcode label.
5.4

SCR Connections

NOTE
Spare part kits may include either Semikron or Eupec SCRs. These SCRs are fully interchangeable in CSX
Series units and can be mixed within the same soft starter.
The connections between the Interface PCB and SCR depend on the revision of the Interface PCB (340-02471-00x,
340-02472-00x, 340-02473-00x). Connect the firing looms according to the diagrams below:
995-02557-00
995-02558-00
995-02559-00
995-02560-00
995-02561-00
710-02696-00C
For boards with no barcode, the batch number is a six digit
number on a separate label.
PCB revision -00C
CSX Series
SPARE PARTS
PCB revision -00D or later
Page 17
