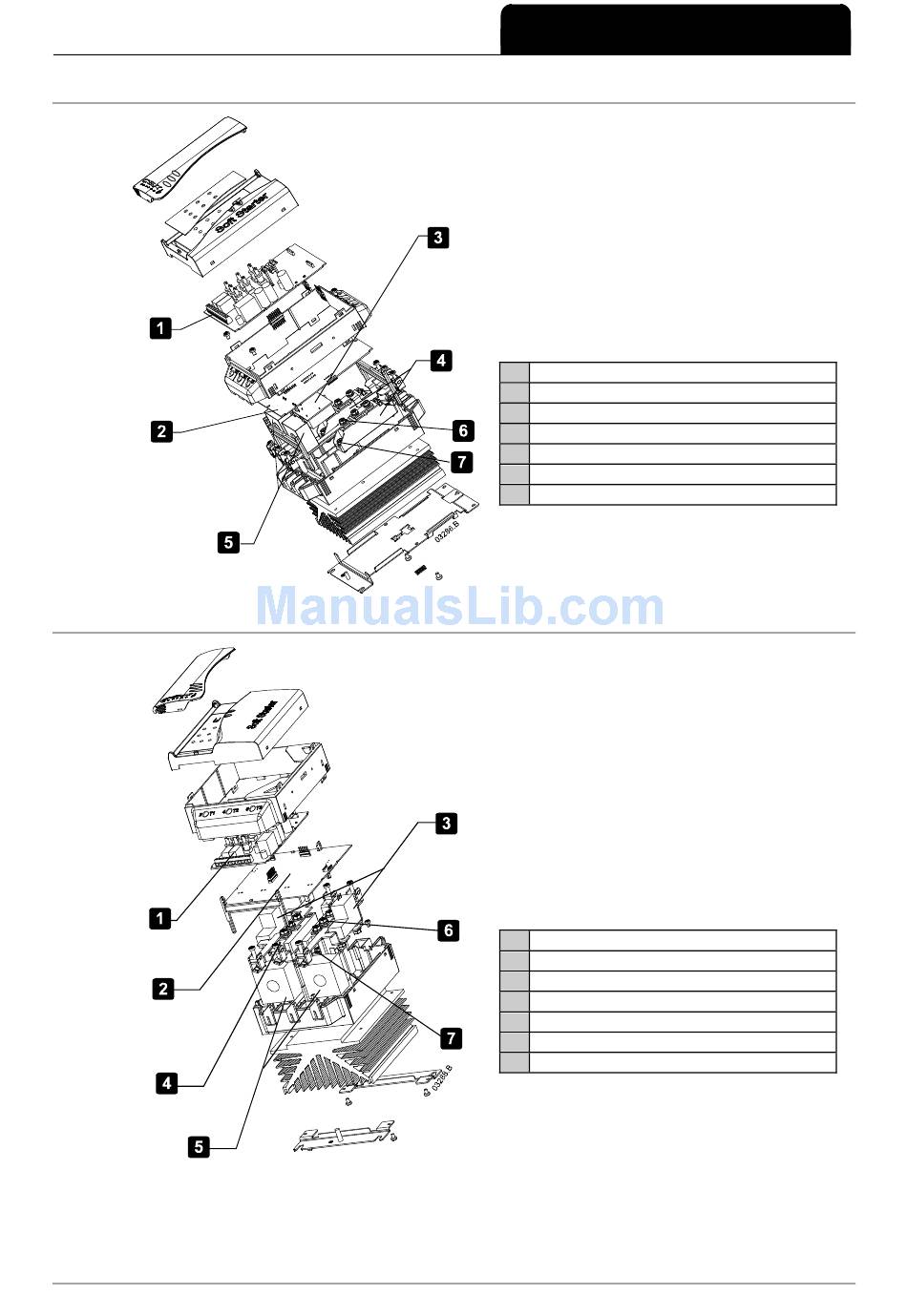

Exploded View CSXi-007~CSXi-030
4.5
Exploded View CSXi-037~CSXi-055
710-02696-00C
1 Main Control PCB
2 Interface PCB
3 Bypass relays
4 SCRs
5 Current transformers
6 SCR-bus bar connection (tighten to 4 Nm)
7 SCR-heatsink connection (tighten to 4 Nm)
1 Main Control PCB
2 Interface PCB
3 Bypass relays
4 SCRs
5 Current transformers
6 SCR-bus bar connection (tighten to 7 Nm)
7 SCR-heatsink connection (tighten to 4 Nm)
CSX Series
SERVICE INSTRUCTIONS
