GENERAL INSTRUCTIONS
Remove the fire from the packing, checking that neither the heater nor the power cable has been damaged during transport. Do not operate the heater if damaged.
The accessories are found in a box that is packed at the side of the fire.
INSTALLATION OF THE FIRE
Where a chimney is not blocked off completely it will cause the heater to cut out during use.
The inset dimensions for Hole in the Wall:
into place. The height at which you wish to fix the fire to the wall is up to you, though we recommend 60cm from the floor to the bottom of the fire.

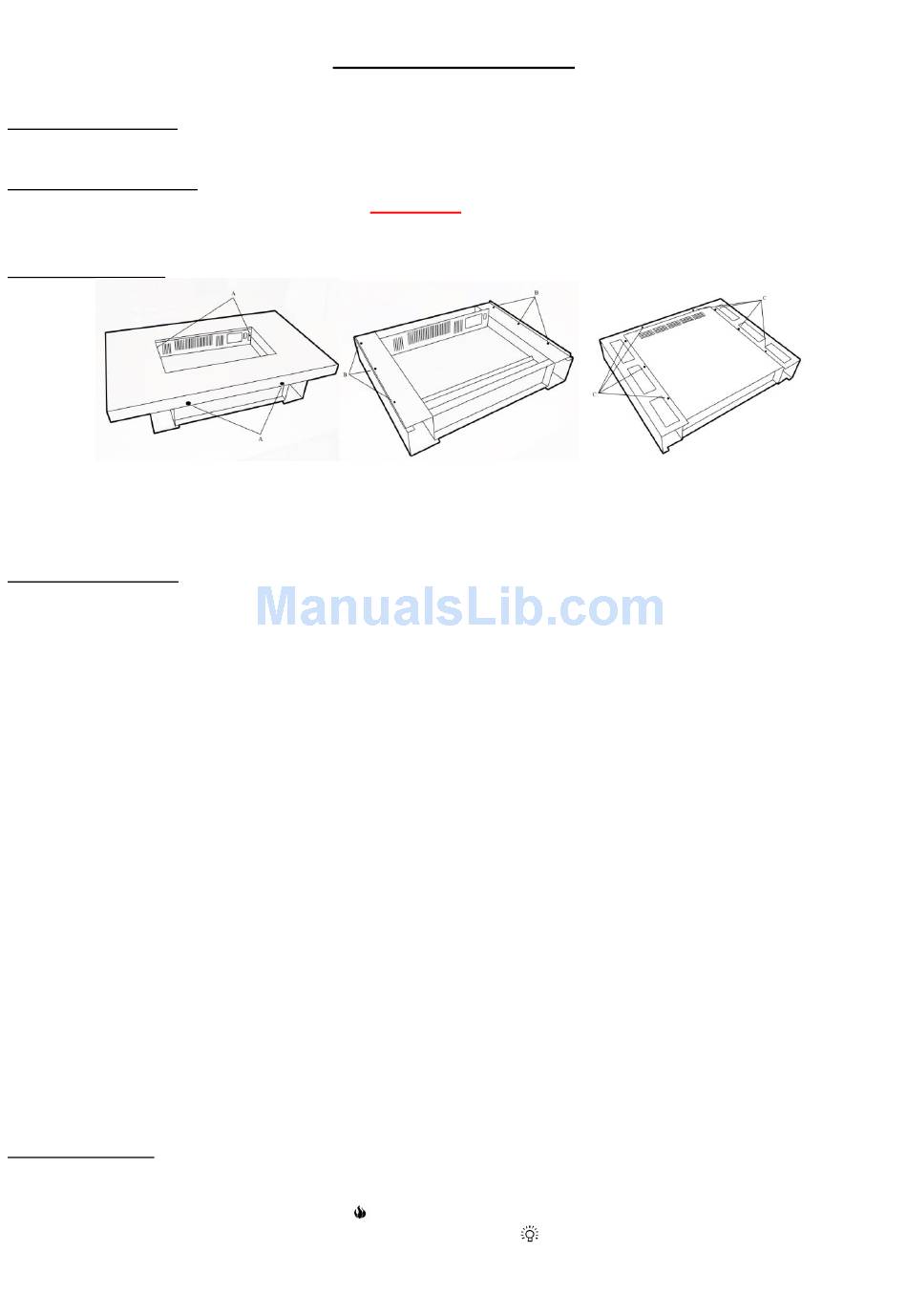

Using as a Hole in the Wall:. Firstly remove outer spacer (See B&C) frame to expose actual fire casing and the decorative fire front (See A).
To remove the decorative front (A), there are two screws on the underside and two screws either side of the heater outlet next to the on/off switch and the keypad. To
remove the spacer there are eight screws on the rear (C) and with the decorative front removed, six more also(B). Four keyhole slots should now be visible, two on
each side of the outer return. Place the fire into the hole, mark off at the TOP of the keyhole slots where the fixing holes are to be drilled. Remove fire and drill the
holes. When this is done push the rawl plugs into the drilled holes and half screw in the fixings. Finally lift and hook the fire back onto the fixings and tighten. The
decorative front may be reapplied.
Using as a Hang on the Wall. The rail should be fixed to the wall with the hook facing upward and outward. Once the rail has been fixed in place, lift and hook the
fire onto the rail. Next at the back of the case bottom/centre is a fold out tag. Fold this down as to expose it under the fire when it is hung in place. Mark off through
the hole, remove fire, drill and fit rawl plug. Hang the fire back on the wall and secure in place using the screw provide.
Important: The fire must be positioned so that the plug socket is accessible once the fire has been installed. In the unlikely event of breakdown access must be
allowed for so that the fire maybe serviced (DO NOT SEAL). This will involve the fire being removed from the wall in order to gain access the rear. The
mains cable must therefore be long enough to allow this. If the removal of the plug is absolutely necessary for installation, cut off in an area within 100mm
only of the plug itself. Any further will affect your warranty. Where an inset fire is being used in an existing chimney, it is important that the chimney is
blocked off to prevent airflow problems with the fire.
Electrical connections
Your appliance comes fitted with a plug that incorporates a 13A fuse. The replacement fuses must be 13A and ASTA approved. If the fuse cover is lost the plug must
not be used until a replacement cover, of the same colour, is obtained an electrical retailer.
The appliance is fitted with a moulded plug if it is necessary cut off the plug, for any reason, it must be discarded immediately with the fuse removed. Under no
circumstances should any attempt be made to reuse the plug, do not insert into any 13A socket as this could cause a hazard.
WARNING THIS APPLIANCE MUST BE EARTHED
The wires in the mains lead are coloured in accordance with the following code.
As the colours of the wires in the mains lead of this appliance may not correspond with the colour markings in your plug proceed as follows: -
The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E, or coloured green or
coloured green and yellow, or marked with the earth symbol
The wire which is coloured blue must be connected to the terminal in the plug which is marked with the letter N, or coloured black.
The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L, or coloured red.
If the mains cable is damaged it must be replaced by the manufacturer or an authorised technical service centre.
Fuel effect Pebbles/coal
Once the fire has been installed in the correct position unpack the pebbles/coals from the accessory box and arrange on the fibre glass fuel bed.
OPERATING THE FIRE
Controls
There is a main on/off switch under the fire opening, this is marked with I/O and will need to be switched to I (standby) to operate the fire. In the O position
(off) you will be unable to operate the fire. The fire can be operated either by manual or remote control.
1. To turn the fire on, simply press and release the FIRE ON or
2. To set the flame effect to your desired brightness press
INSTRUCTIONS FOR USE
Corello F01
depth
height
12.5cm,
55cm and
IMPORTANT
Green and yellow:
Blue:
Red:
button on the remote or manual keypad.
+
-
or
buttons marked DIMMER1 or
Page 1 of 2
width
54cm. To prevent the fire from being pulled over it must be secured
EARTH
NEUTRAL
LIVE
