Operation

1
The Simrad IS40 system is a networked multifunction instrument display and OP10 Autopilot
controller. The display shows speed, depth, heading, position, wind and environmental data
measured by sensors and other equipment connected to the system.
Navigational data, engine/battery status and vessel parameters such as accumulated log and
rudder angle may also be displayed.
The instrument calculates speed trim, wind, trip distance and time, average speed, set and
drift parameters. A race timer is also included.
If a compatible autopilot is installed and connected to the same network it can be controlled
by the OP10 Autopilot controller.

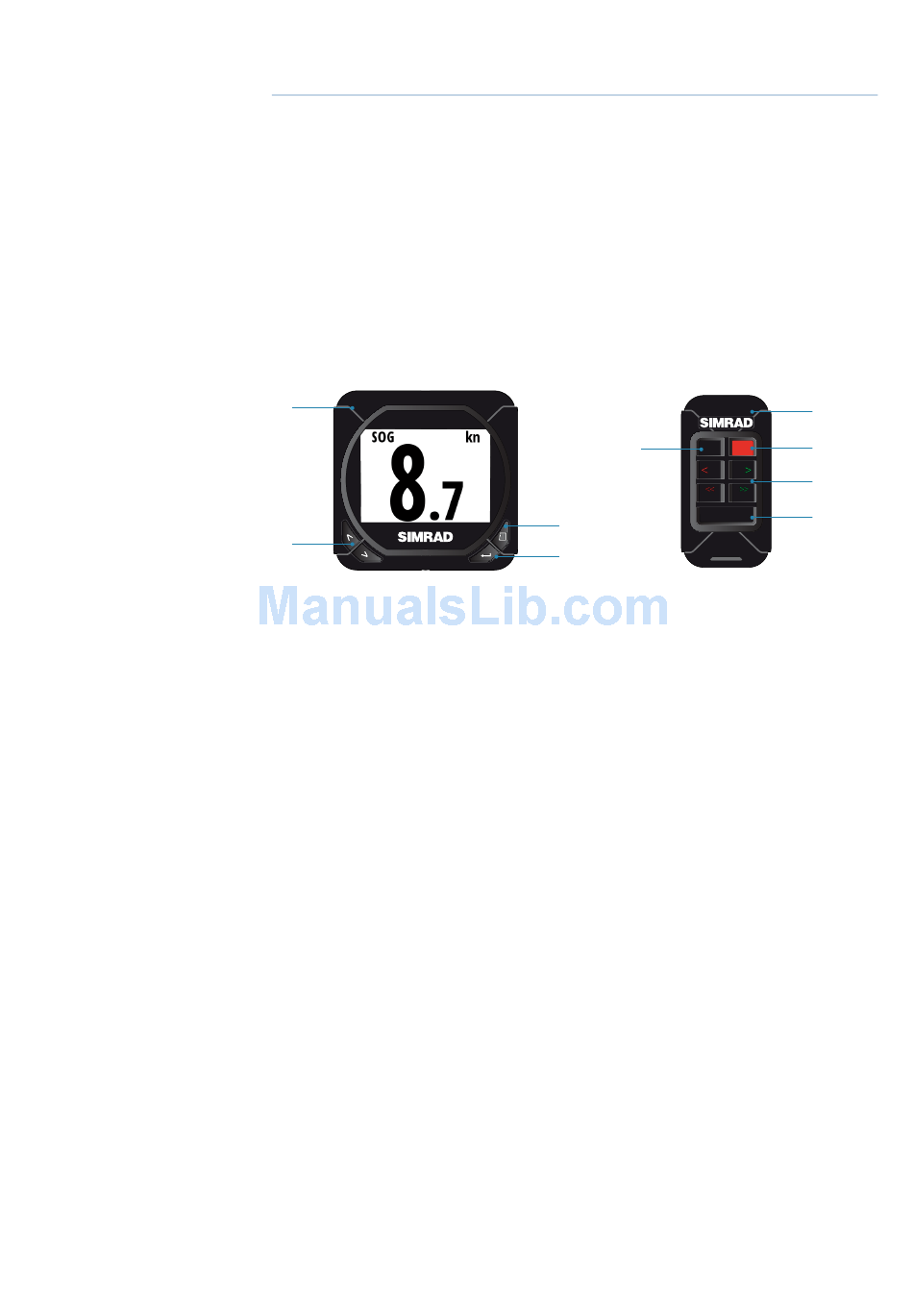

The IS40 Display and OP10 Autopilot controller

1
4
1 Display
2 Menu / Enter key
Used to enter the main menu, select sub menus and confirm selection.
¼ Note:
lighting level screen. If the lighting level is set below 5 it will automatically increase to 5. Use
the up and down keys to set the desired level and press Enter to confirm.
3 Page key
Scrolls through the eight default display pages and navigates back a step in menus.
¼ Note:
the required data.
4 Directional keys
Scrolls up and down through selected menus / set values.
5 OP10 Autopilot controller
6 Mode key
Changes the Autopilot mode.
7 STBY key
¼ Note:
Changes the autopilot to Standby mode.
8 Course control keys
Changes target course / Activates Non Follow Up (NFU) mode when in Standby mode.
9 Auto key
Changes the autopilot to AUTO mode.
Operation |
Press and holding the Enter key for 3 seconds takes you directly to the display setup
the eight default display pages including Autopilot page can be customized to display
the key is labeled OFF on some models.
IS40 Operator Manual
6
MODE STBY
1
10
AUTO
3
2
5
7
1
8
10
9
| 5
