Simrad ITI
Trawl monitoring system
Measures position of signel and twin trawls
Full range of sensors
Split beam transducer technology
Nine display modes of efficient use
Well proven technology
Locate lost gear
www.simrad.com
T E C H N O L O G Y
F O R
S U S T A I N A B L E
F I S H E R I E S
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Simrad ITI - DATASHEET REV A
Summary of Contents for Simrad ITI - DATASHEET REV A

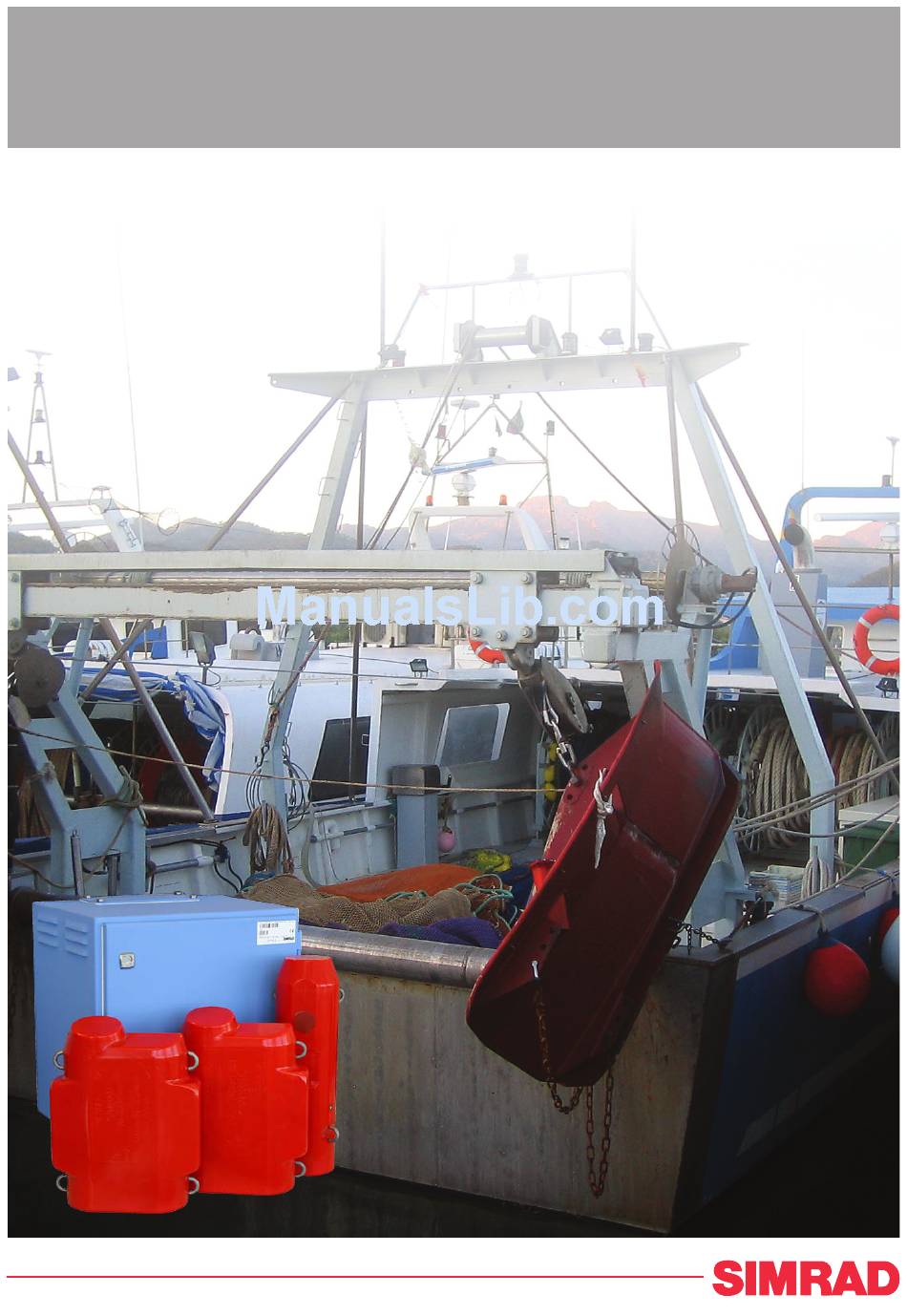

- Page 1 Simrad ITI Trawl monitoring system Measures position of signel and twin trawls Full range of sensors Split beam transducer technology Nine display modes of efficient use Well proven technology Locate lost gear www.simrad.com T E C H N O L O G Y...
-
Page 2: Display Options
The Simrad ITI allows you to monitor the exact position of the gear, Simrad was the first company to develop an entire range of trawl monitoring and what is happening in and around systems using LCD monitors. the trawl. This provides crucial information for effective, profitable and responsible fishing. - Page 3 SIMRAD ITI Distance and bearing, trawl geometry The Trawl Eye echogram shows The Simrad ITI system is operated by and catch are displayed in the position of the trawl relative to the self- explanatory menus. The menu is bottom, fish in the opening and the horizontal projection.
- Page 4 SIMRAD ITI Trawl monitoring with Simrad ITI A) Depth/Temperature sensor This sensor monitors the depth of the trawl, and the water temperature. B) Trawl Eye sensor The sensor monitors the trawl opening C) Distance/Spread sensor The distance sensors monitor door or wing spread.
- Page 5 The Simrad ITI Trawl Eye - efficient wireless net sounding The Simrad Trawl Eye monitors the trawl opening. The Simrad Trawl Eye sensor has a sophisticated built-in echo sounder...
- Page 6 SIMRAD ITI Twin trawl monitoring with Simrad ITI A) Spread Sensor The spread sensors monitor the distance between the center weight and both trawl doors. B) Trawl Eye/Height Sensor The Trawl Eye and Height sensor monitors the trawl opening. C) Twin Combi sensor This sensor monitors the depth, and the ambient water temperature.
- Page 7 Simrad ITI Trawl Geometry - full control of Twin Trawl The wireless Simrad ITI transponder system for Twin Rigging is designed to utilize a minimum of transponders to achieve full coverage of the trawl geometry and true movement over the bottom.
-
Page 8: Technical Specifications
• Gyro: Stepper/synchro types and must be obtained locally. The display must water). • Speed log: Pulse, analogue, Simrad • Sensor types: comply to a standard VGA output. All sizes can be used, but the ITI has not been prepared...
