Steering

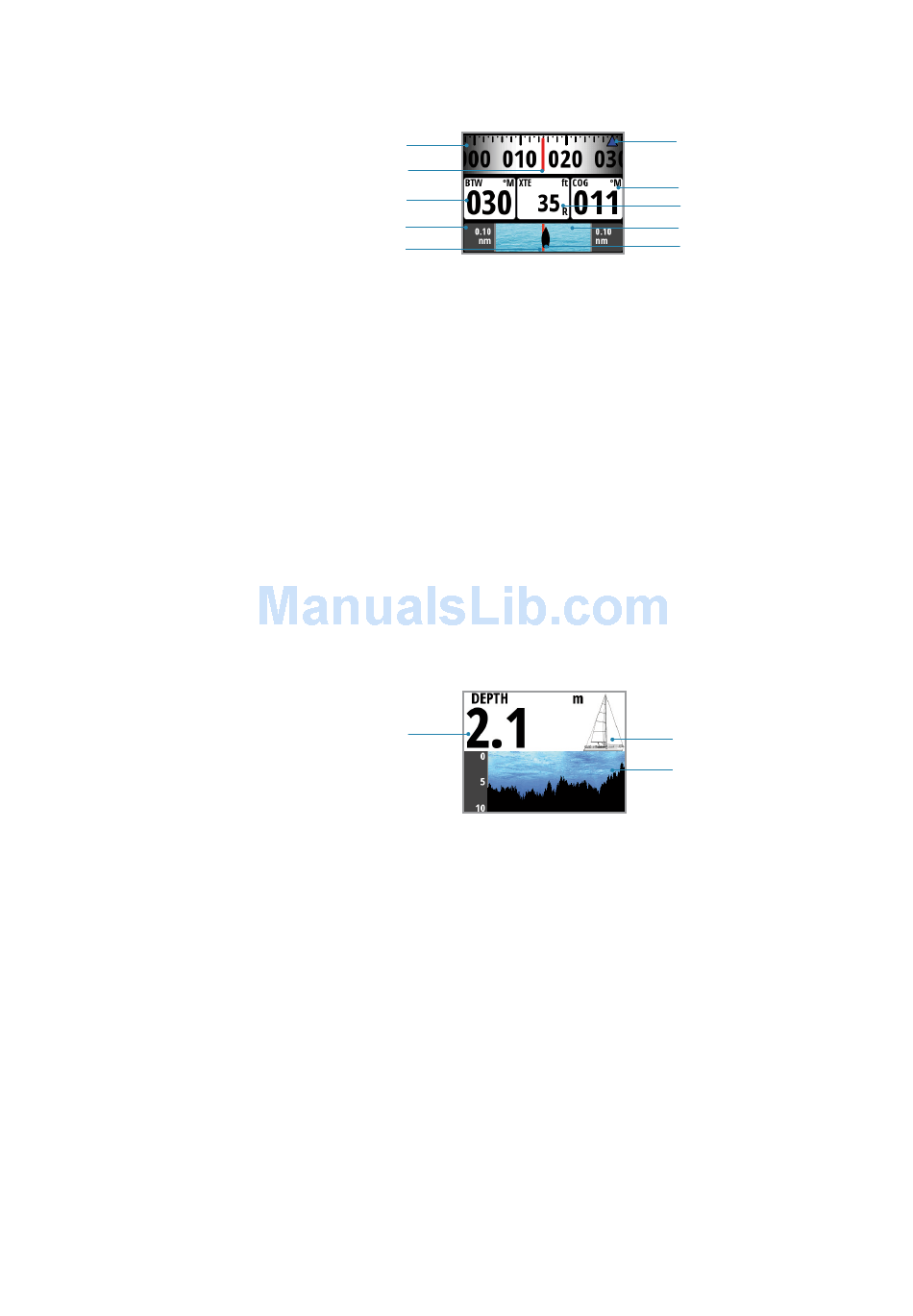

The Steering page presents the following information:
1
2
3
4
5
1 Compass graphic (Heading)
2 Heading
3 Bearing to waypoint (BTW)
4 Off track limit
5 Rhumb line
6 Bearing to waypoint indicator
7 Course over ground (COG)
8 Cross track error (XTE) R = Right / L = Left
9 Cross track error graphic
10 Boat position from rhumb line
Depth History
Current depth and histogram of recorded depth data.
1 Depth value
2 Boat type - Sail or Motor boat image
3 Depth graphic
¼ Note:
You can adjust the time period scale via the up & down keys.
