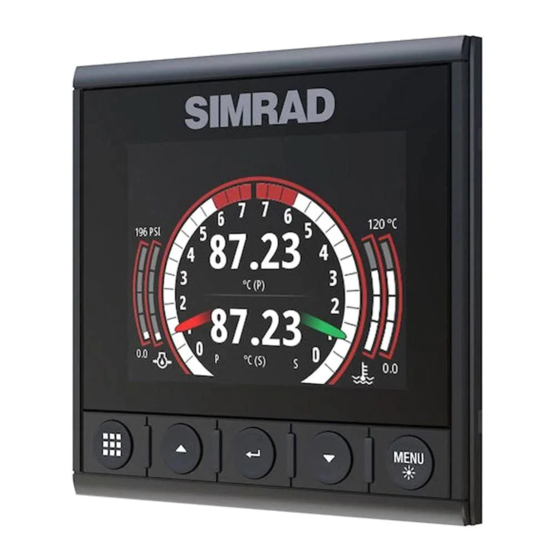

Simrad IS42J Quick Manual

Front panel and keys
Pages key
With no menu active:
•
Press to scroll through the enabled pages
A
•
Press and hold to display a list of enabled pages from where you can select
directly the page to display
Menu and dialog operation:
•
Press to return to previous menu level or to exit a dialog
Arrow keys
B
•
Press to move up and down in menus and dialogs
•
Press to adjust a value
Enter key
C
•
Press to select a menu option and to enter the next menu level
•
Press to activate/deactivate a menu/dialog option
MENU/Backlight key
•
Press once to display the page menu
D
•
Double-press to display the Settings menu
•
Press and hold to open the display setup dialog from where you can adjust
the backlight
¼ Note:
All screenshots are taken with invert day color turned on.
All manuals and user guides at all-guides.com
IS42J
Quick Guide
A B C B D
IS42J |
EN
|
Quick Guide - EN
1
