Chapter 7. Troubleshooting

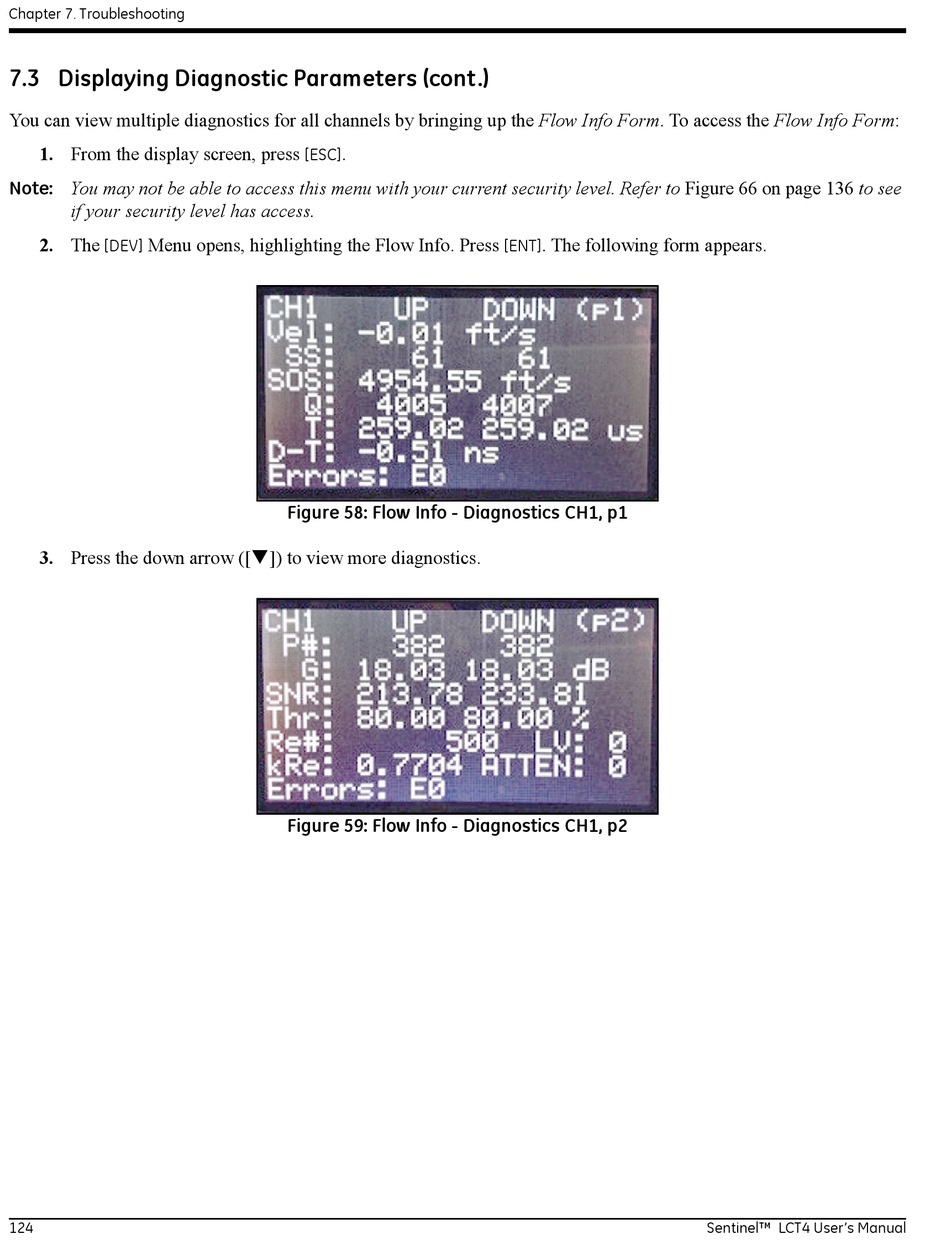

7.3 Displaying Diagnostic Parameters (cont.)
You can view multiple diagnostics for all channels by bringing up the Flow Info Form. To access the Flow Info Form:
1. From the display screen, press
Note: You may not be able to access this menu with your current security level. Refer to Figure 66 on page 136 to see
if your security level has access.
2. The Menu opens, highlighting the Flow Info. Press
[DEV]
3. Press the down arrow ([]) to view more diagnostics.
124
.
[ESC]
Figure 58: Flow Info - Diagnostics CH1, p1
Figure 59: Flow Info - Diagnostics CH1, p2
. The following form appears.
[ENT]
Sentinel™ LCT4 User's Manual
